Datasheet 2SAR586J (Rohm) - 3
| Manufacturer | Rohm |
| Description | PNP -5.0A -80V Power Transistor |
| Pages / Page | 9 / 3 — 2SAR586J. Electrical characteristic curves. 20190423 - Rev.001 |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |
2SAR586J. Electrical characteristic curves. 20190423 - Rev.001
Model Line for this Datasheet
Text Version of Document
2SAR586J
Datasheet l
Electrical characteristic curves

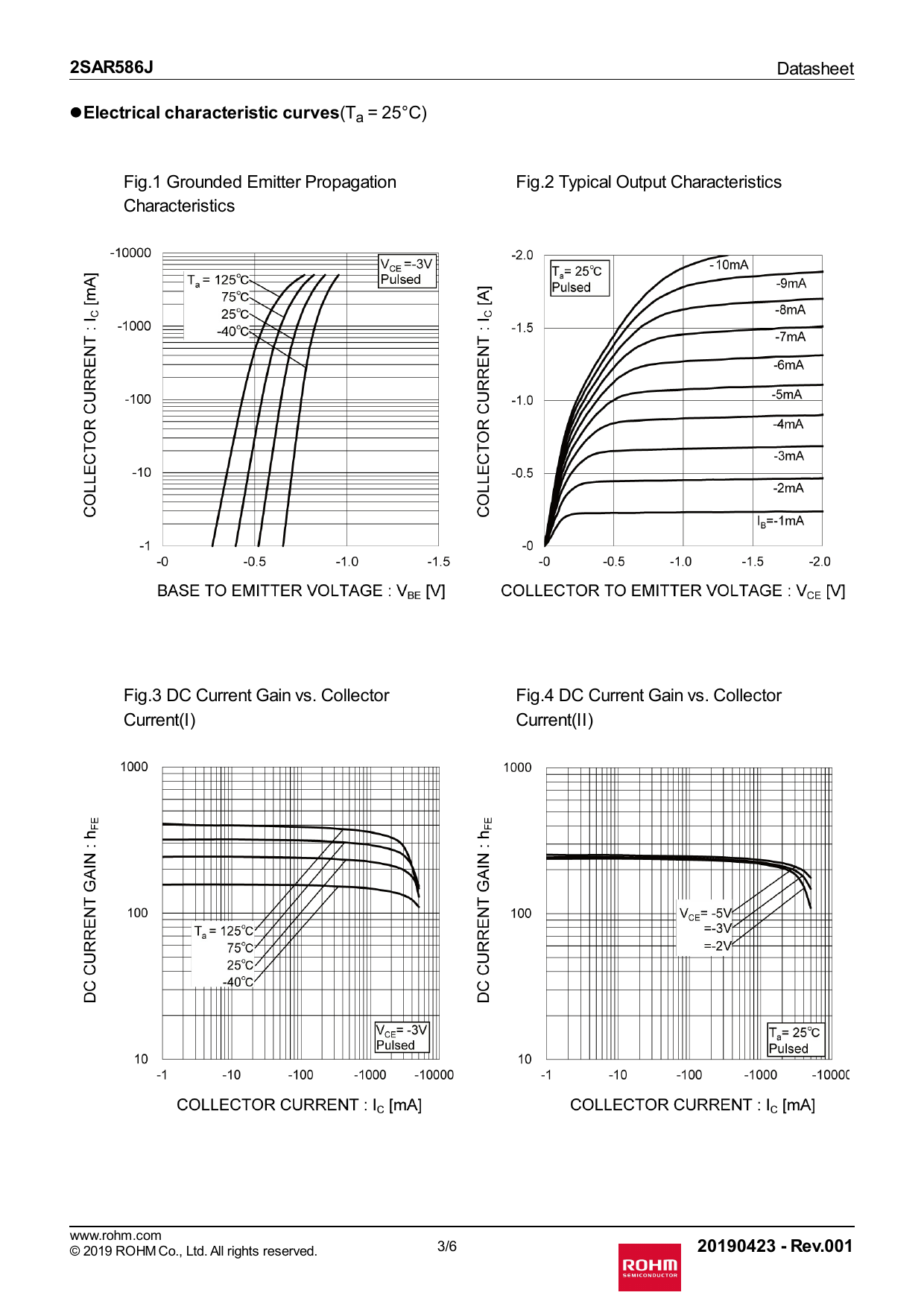

(Ta = 25°C) Fig.1 Grounded Emitter Propagation Fig.2 Typical Output Characteristics Characteristics Fig.3 DC Current Gain vs. Collector Fig.4 DC Current Gain vs. Collector Current(I) Current(II) www.rohm.com © 2019 ROHM Co., Ltd. All rights reserved. 3/6
20190423 - Rev.001
Datasheet l
Electrical characteristic curves
(Ta = 25°C) Fig.1 Grounded Emitter Propagation Fig.2 Typical Output Characteristics Characteristics Fig.3 DC Current Gain vs. Collector Fig.4 DC Current Gain vs. Collector Current(I) Current(II) www.rohm.com © 2019 ROHM Co., Ltd. All rights reserved. 3/6
20190423 - Rev.001
