| Manufacturer | Rohm |
| Description | Nch 50V 200mA Small Signal MOSFET |
| Pages / Page | 14 / 7 — RUC002N05. Electrical characteristic curves. 20240905 - Rev.004 |
| File Format / Size | PDF / 3.0 Mb |
| Document Language | English |
RUC002N05. Electrical characteristic curves. 20240905 - Rev.004
Model Line for this Datasheet
Text Version of Document
RUC002N05
Datasheet l
Electrical characteristic curves

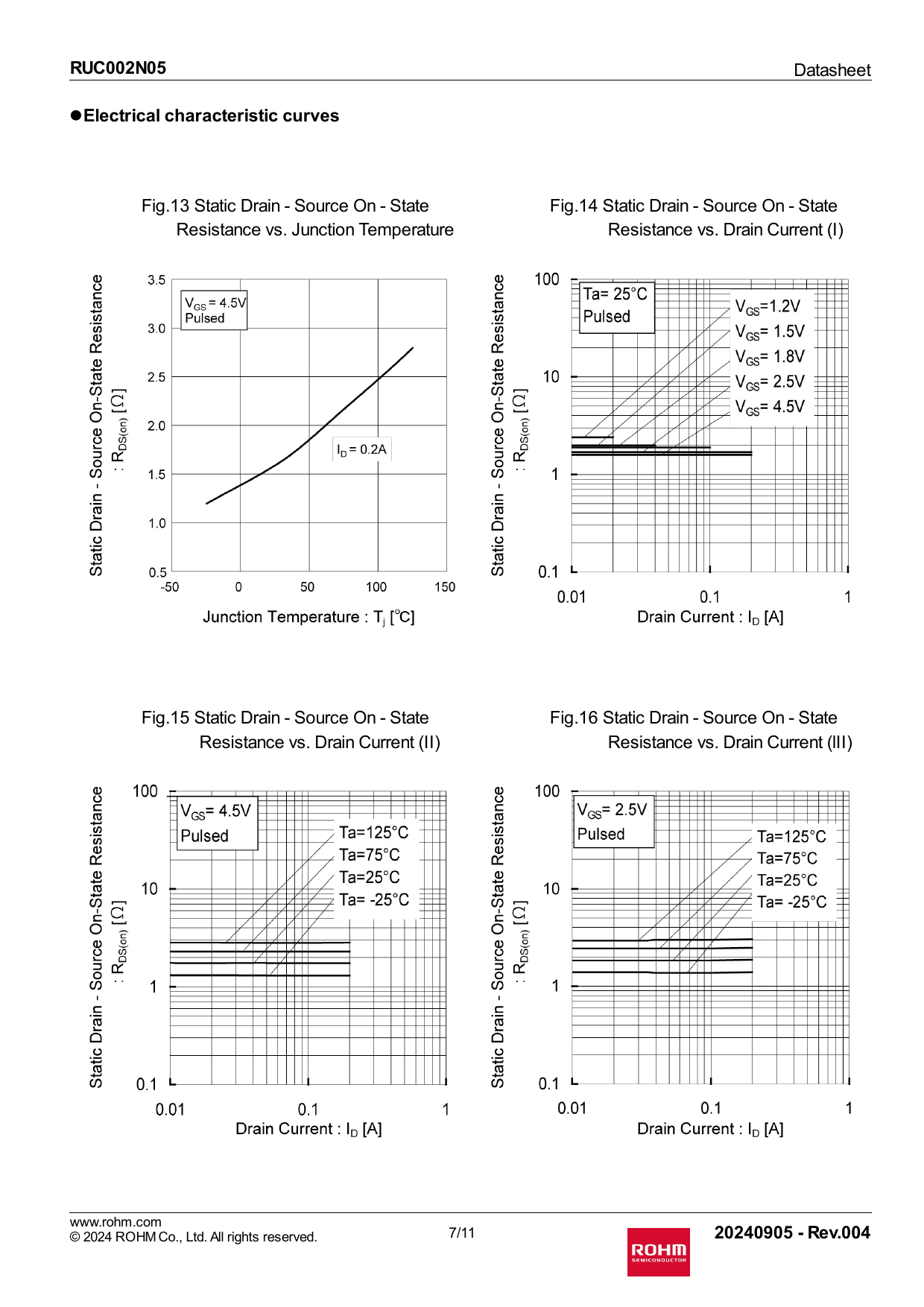

Fig.13 Static Drain - Source On - State Fig.14 Static Drain - Source On - State Resistance vs. Junction Temperature Resistance vs. Drain Current (I) Fig.15 Static Drain - Source On - State Fig.16 Static Drain - Source On - State Resistance vs. Drain Current (II) Resistance vs. Drain Current (lII) www.rohm.com © 2024 ROHM Co., Ltd. All rights reserved. 7/11
20240905 - Rev.004
Datasheet l
Electrical characteristic curves
Fig.13 Static Drain - Source On - State Fig.14 Static Drain - Source On - State Resistance vs. Junction Temperature Resistance vs. Drain Current (I) Fig.15 Static Drain - Source On - State Fig.16 Static Drain - Source On - State Resistance vs. Drain Current (II) Resistance vs. Drain Current (lII) www.rohm.com © 2024 ROHM Co., Ltd. All rights reserved. 7/11
