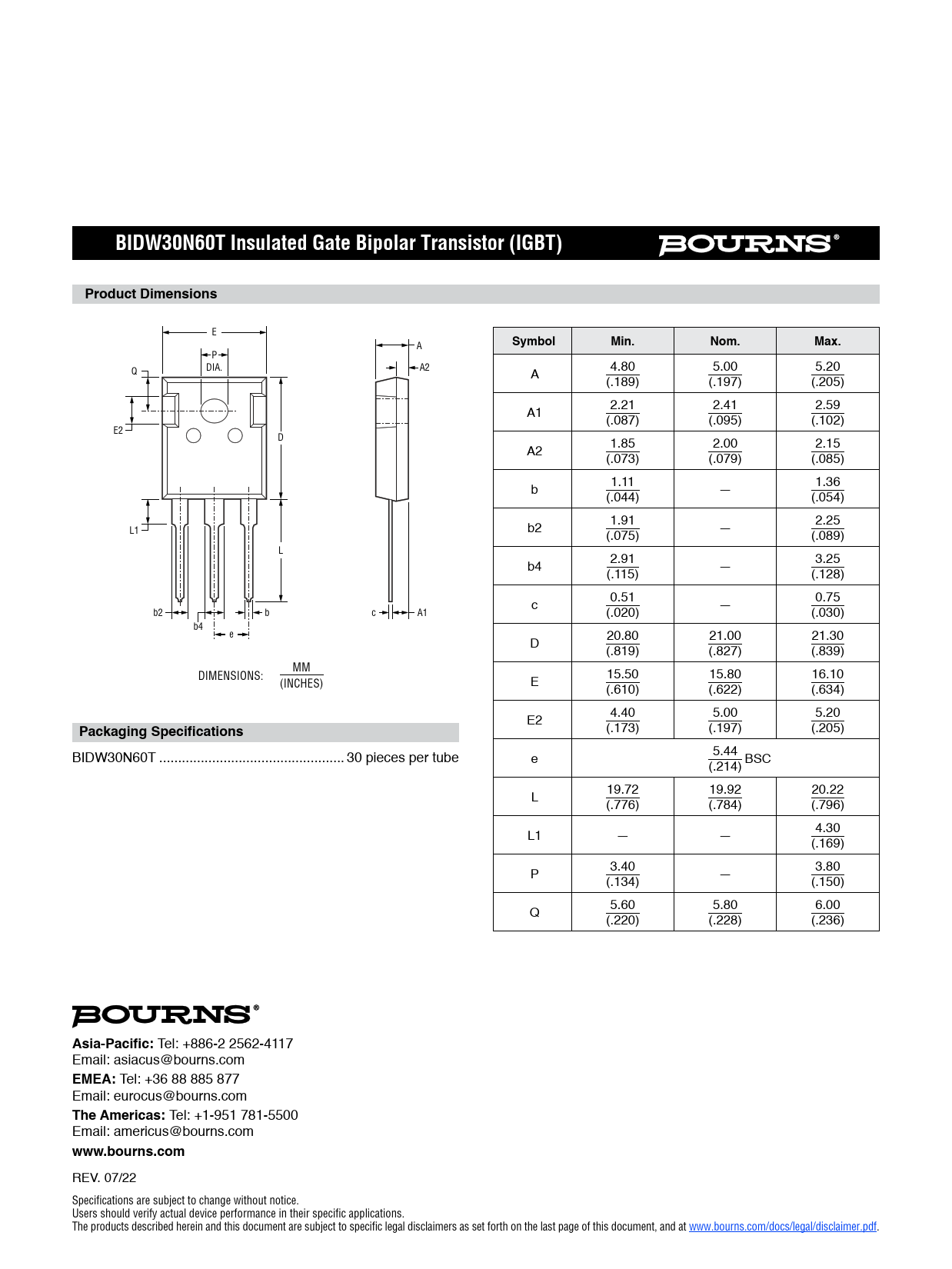

BIDW30N60T Insulated Gate Bipolar Transistor (IGBT) Product Dimensions
E A
Symbol Min. Nom. Max.
P DIA. Q A2 A 4.80 5.00 5.20 (.189) (.197) (.205) A1 2.21 2.41 2.59 (.087) (.095) (.102) E2 D A2 1.85 2.00 2.15 (.073) (.079) (.085) b 1.11 (.044) — 1.36 (.054) L1 b2 1.91 (.075) — 2.25 (.089) L b4 2.91 (.115) — 3.25 (.128) c 0.51 b2 b c A1 (.020) — 0.75 (.030) b4 e D 20.80 21.00 21.30 (.819) (.827) (.839) MM DIMENSIONS: 15.80 16.10 (INCHES) E 15.50 (.610) (.622) (.634) E2 4.40 5.00 5.20 (.173) (.197) (.205)
Packaging Specifications
BIDW30N60T ... 30 pieces per tube e 5.44 BSC (.214) L 19.72 19.92 20.22 (.776) (.784) (.796) L1 — — 4.30 (.169) P 3.40 (.134) — 3.80 (.150) Q 5.60 5.80 6.00 (.220) (.228) (.236)
