Datasheet AH4930 (Diodes) - 2
| Manufacturer | Diodes |
| Description | 3D Magnetic Linear Hall Sensor with I2C Interface |
| Pages / Page | 23 / 2 — AH4930. Typical Applications Circuit. MCU. Pin Descriptions. Package: … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
AH4930. Typical Applications Circuit. MCU. Pin Descriptions. Package: SOT26 (Type A1). Pin Number. Pin Name. I/O. Function
Model Line for this Datasheet
Text Version of Document

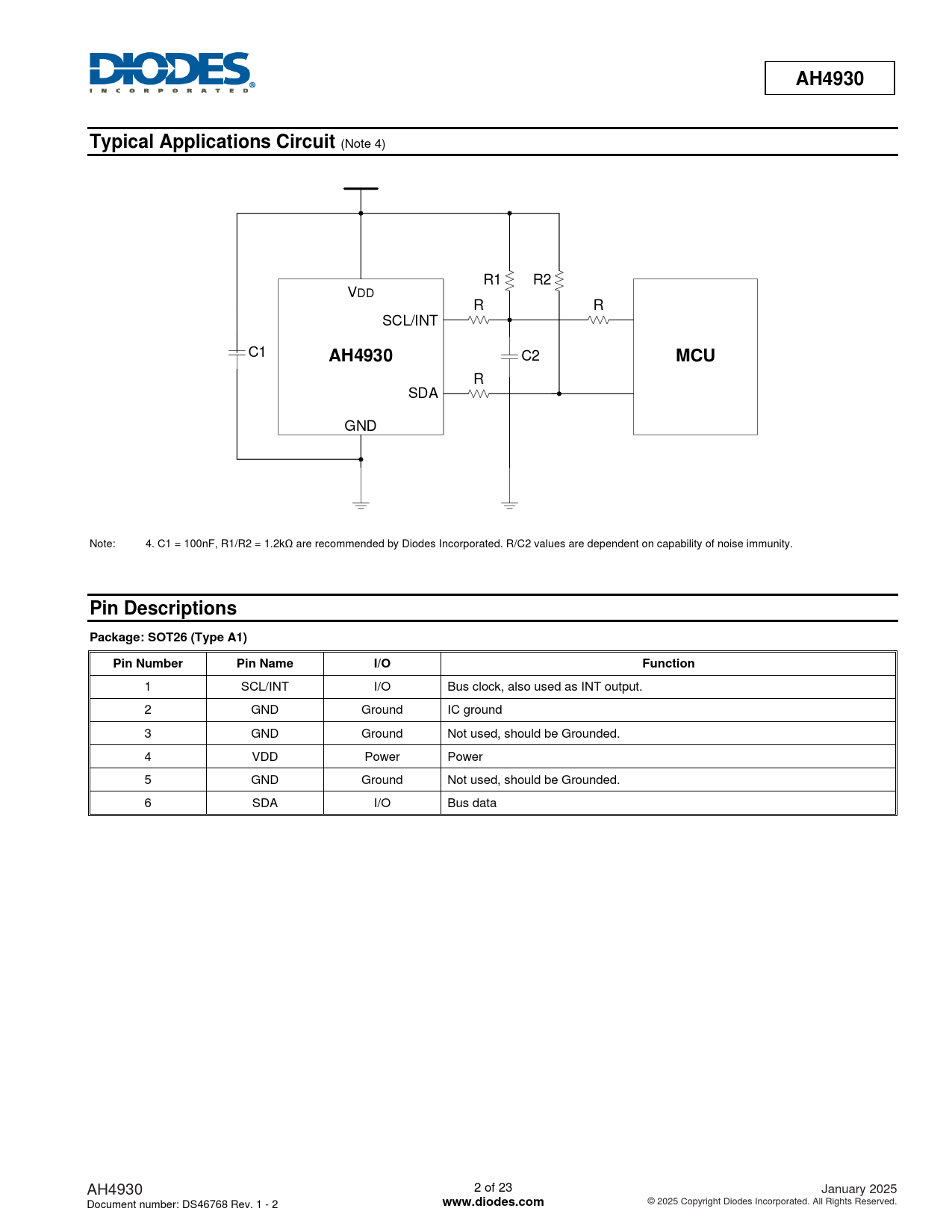

AH4930 Typical Applications Circuit
(Note 4) R1 R2 VDD R R SCL/INT C1
AH4930
C2
MCU
R SDA GND Note: 4. C1 = 100nF, R1/R2 = 1.2kΩ are recommended by Diodes Incorporated. R/C2 values are dependent on capability of noise immunity.
Pin Descriptions Package: SOT26 (Type A1) Pin Number Pin Name I/O Function
1 SCL/INT I/O Bus clock, also used as INT output. 2 GND Ground IC ground 3 GND Ground Not used, should be Grounded. 4 VDD Power Power 5 GND Ground Not used, should be Grounded. 6 SDA I/O Bus data AH4930 2 of 23 January 2025 Document number: DS46768 Rev. 1 - 2
