| Description | The FS312F-G protection IC for Li-ion/polymer rechargeable one-cell batteries maintains high accurate detections of the abnormal cell activities and the corresponding delay time in order to have protections against the events of over charge, over discharge, and over current. |
| Pages / Page | 13 / 4 — 5. Product Name List. Package Overcharge. detection. voltage. [VOCP] (V) … |
| File Format / Size | PDF / 980 Kb |
| Document Language | English |

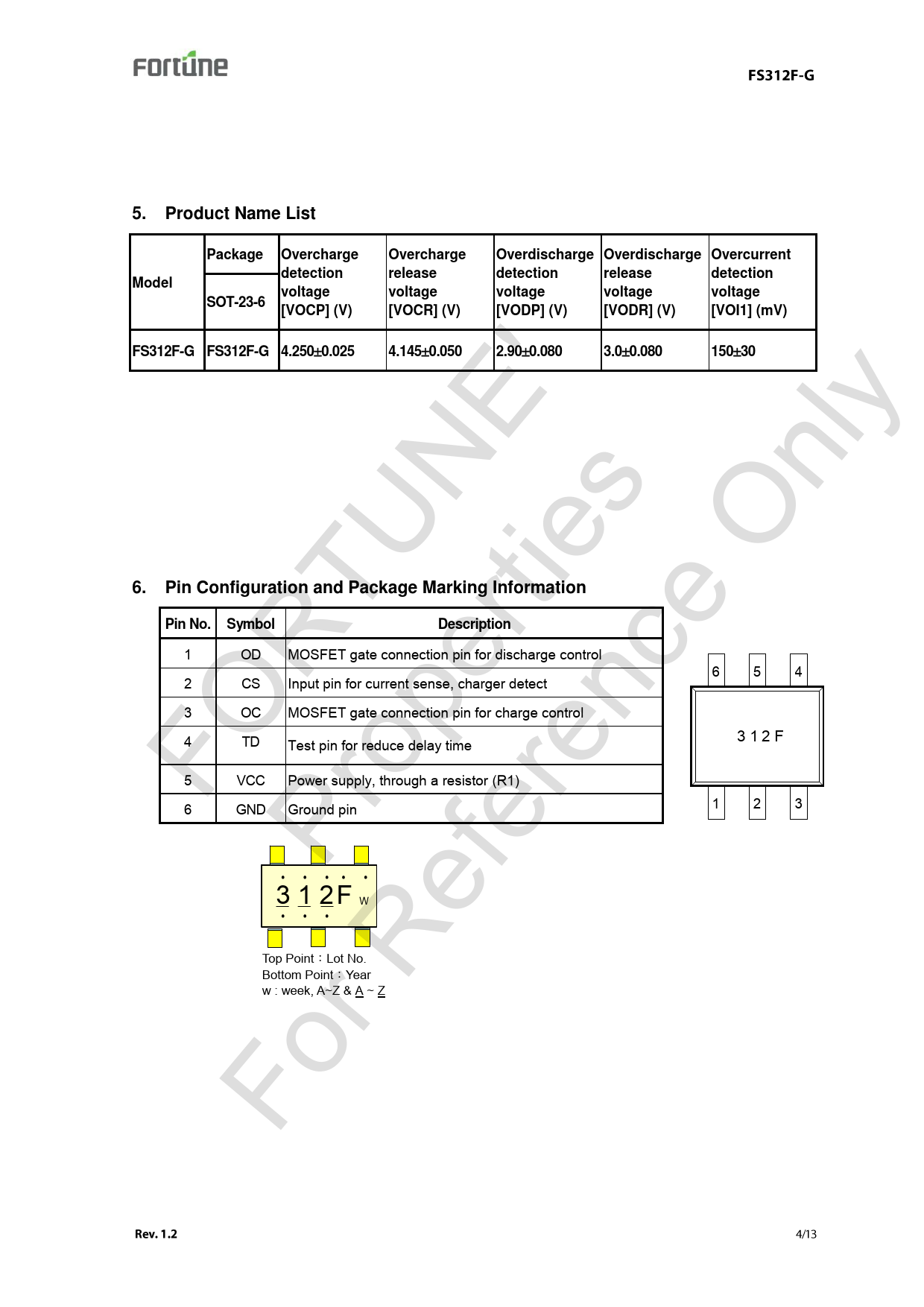

5. Product Name List. Package Overcharge. detection. voltage. [VOCP] (V) Overcharge. release. [VOCR] (V) Overdischarge
Model Line for this Datasheet
Text Version of Document
5. Product Name List
Package Overcharge
detection
voltage
[VOCP] (V) Overcharge
release
voltage
[VOCR] (V) Overdischarge
detection
voltage
[VODP] (V) Overdischarge
release
voltage
[VODR] (V) Overcurrent
detection
voltage
[VOI1] (mV) FS312F-G FS312F-G 4.2500.025 4.1450.050 2.900.080 3.00.080 15030 Model FO
Fo P R
r R ro TU
ef pe NE
er rti
'
en es
ce
O
nl
y SOT-23-6 6. Pin Configuration and Package Marking Information
Pin No. Symbol Description 1 OD MOSFET gate connection pin for discharge control 2 CS Input pin for current sense, charger detect 3 OC MOSFET gate connection pin for charge control 4 TD Test pin for reduce delay time 5 VCC Power supply, through a resistor (R1) 6 GND Ground pin 6 W Top Point：Lot No.
