LT3041 TYPICAL PERFORMANCE CHARACTERISTICS
TA = 25°C, unless otherwise noted.

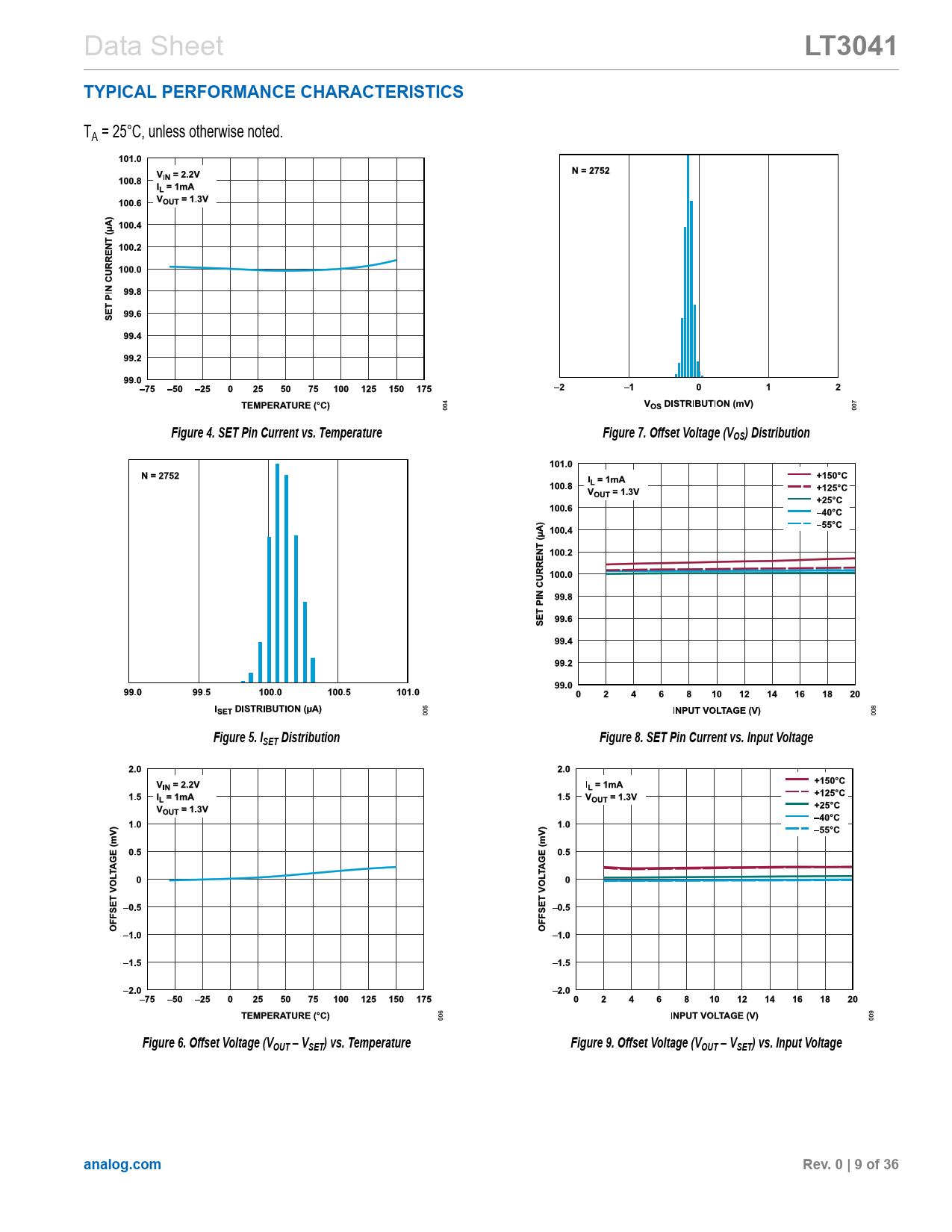

Figure 4. SET Pin Current vs. Temperature Figure 7. Offset Voltage (VOS) Distribution Figure 5. ISET Distribution Figure 8. SET Pin Current vs. Input Voltage Figure 6. Offset Voltage (VOUT – VSET) vs. Temperature Figure 9. Offset Voltage (VOUT – VSET) vs. Input Voltage analog.com Rev. 0 | 9 of 36
