Datasheet SFH 421 (OSRAM) - 6
| Manufacturer | OSRAM |
| Description | GaAlAs Infrared Emitter in SMT Package |
| Pages / Page | 7 / 6 — SFH 421, SFH 426. Maßzeichnung Package Outlines |
| File Format / Size | PDF / 88 Kb |
| Document Language | English |
SFH 421, SFH 426. Maßzeichnung Package Outlines
Model Line for this Datasheet
Text Version of Document

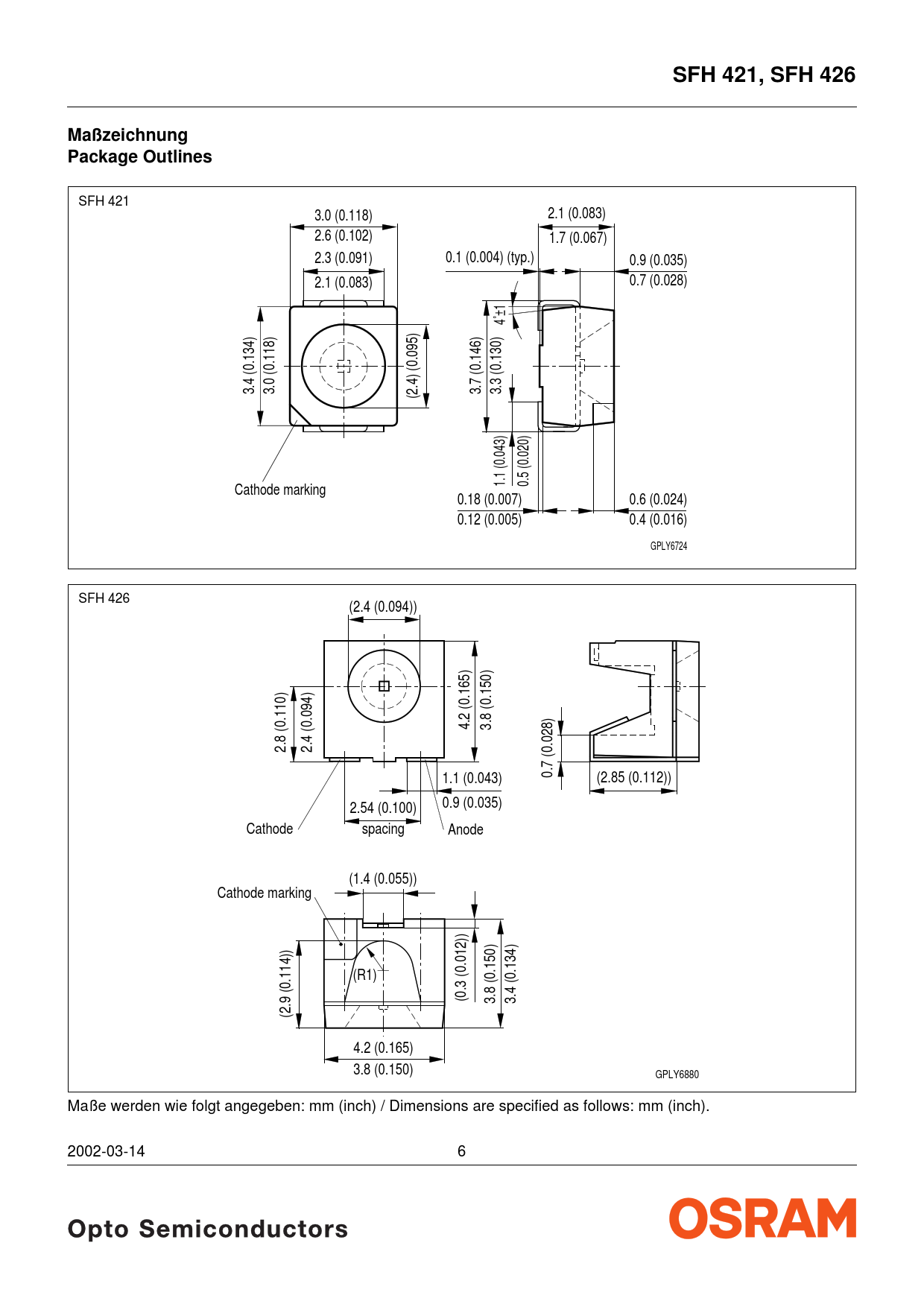

SFH 421, SFH 426 Maßzeichnung Package Outlines
SFH 421 3.0 (0.118) 2.1 (0.083) 2.6 (0.102) 1.7 (0.067) 2.3 (0.091) 0.1 (0.004) (typ.) 0.9 (0.035) 2.1 (0.083) 0.7 (0.028) 4˚±1 3.4 (0.134) 3.0 (0.118) 3.7 (0.146) 3.3 (0.130) (2.4) (0.095) 1.1 (0.043) 0.5 (0.020) Cathode marking 0.18 (0.007) 0.6 (0.024) 0.12 (0.005) 0.4 (0.016) GPLY6724 SFH 426 (2.4 (0.094)) 4.2 (0.165) 3.8 (0.150) 2.8 (0.110) 2.4 (0.094) 1.1 (0.043) 0.7 (0.028) (2.85 (0.112)) 0.9 (0.035) 2.54 (0.100) Cathode spacing Anode (1.4 (0.055)) Cathode marking (R1) (0.3 (0.012)) 3.8 (0.150) 3.4 (0.134) (2.9 (0.114)) 4.2 (0.165) 3.8 (0.150) GPLY6880 Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch). 2002-03-14 6
