Datasheet FKPF12N60 (Fairchild) - 6
| Manufacturer | Fairchild |
| Description | Bi-Directional Triode Thyristor Planar Silicon |
| Pages / Page | 7 / 6 — FKPF12N60 / FKPF12N80. Package Dimension |
| File Format / Size | PDF / 144 Kb |
| Document Language | English |
FKPF12N60 / FKPF12N80. Package Dimension
Model Line for this Datasheet
Text Version of Document

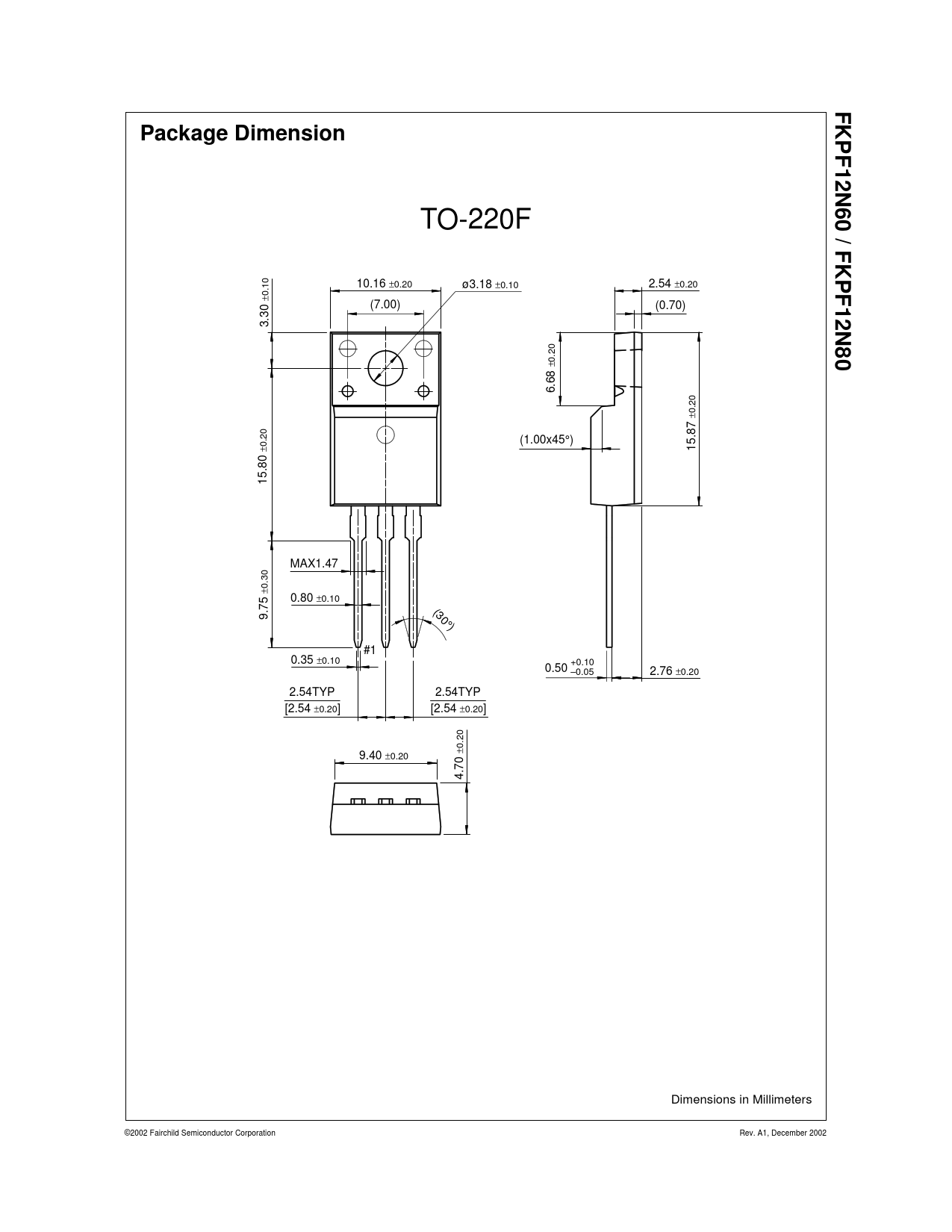

FKPF12N60 / FKPF12N80 Package Dimension
TO-220F 10.16 ±0.20 ø3.18 ±0.10 2.54 ±0.20 ±0.10 (7.00) (0.70) 3.30 ±0.20 6.68 ±0.20 (1.00x45°) ±0.20 15.87 15.80 MAX1.47 ±0.30 0.80 ±0.10 (30 9.75 °) #1 0.35 ±0.10 +0.10 0.50 –0.05 2.76 ±0.20 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ±0.20 9.40 ±0.20 4.70 Dimensions in Millimeters ©2002 Fairchild Semiconductor Corporation Rev. A1, December 2002
