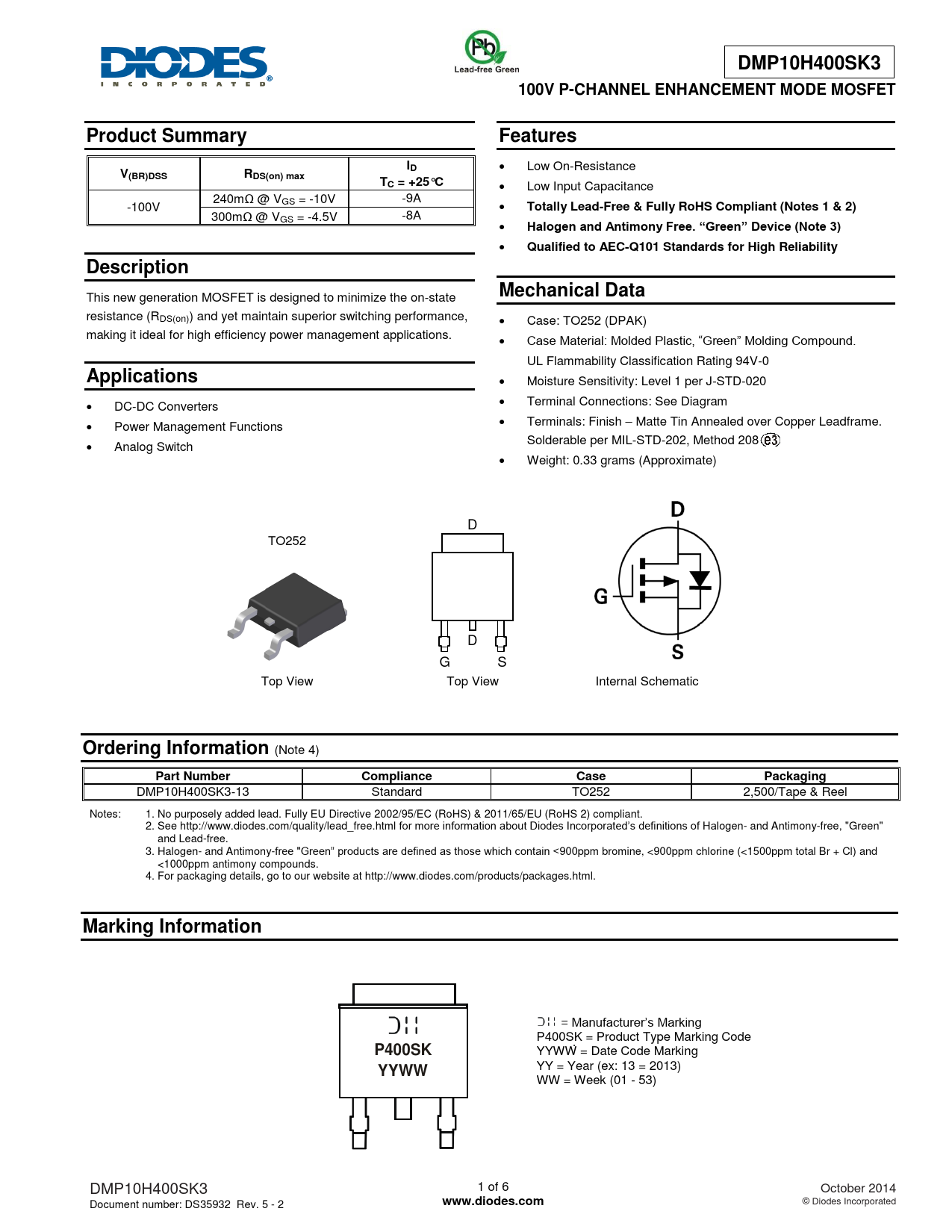

DMP10H400SK3 100V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features ID
Low On-Resistance
V(BR)DSS RDS(on) max TC = +25°C
Low Input Capacitance 240mΩ @ V -100V GS = -10V -9A
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
300mΩ @ VGS = -4.5V -8A
Halogen and Antimony Free. “Green” Device (Note 3) T Qualified to AEC-Q101 Standards for High Reliability C Description U D Mechanical Data
This new generation MOSFET is designed to minimize the on-state
O
resistance (RDS(on)) and yet maintain superior switching performance,
R
Case: TO252 (DPAK)
P
making it ideal for high efficiency power management applications. Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
W Applications E
Moisture Sensitivity: Level 1 per J-STD-020
N
DC-DC Converters Terminal Connections: See Diagram Power Management Functions Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Analog Switch Weight: 0.33 grams (Approximate) D TO252 D G S Top View Top View Internal Schematic Pin Out
Ordering Information
(Note 4)
Part Number Compliance Case Packaging
DMP10H400SK3-13 Standard TO252 2,500/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
= Manufacturer’s Marking P400SK = Product Type Marking Code
P400SK
. YYWW = Date Code Marking YY = Year (ex: 13 = 2013)
YYWW
WW = Week (01 - 53) DMP10H400SK3 1 of 6 October 2014 Document number: DS35932 Rev. 5 - 2
