Nexperia. PESD2CANFD60VT-Q. ESD protection for in-vehicle networks. 5. Pinning information Table 2. Pinning information. Pin
Model Line for this Datasheet
Text Version of Document
link to page 2

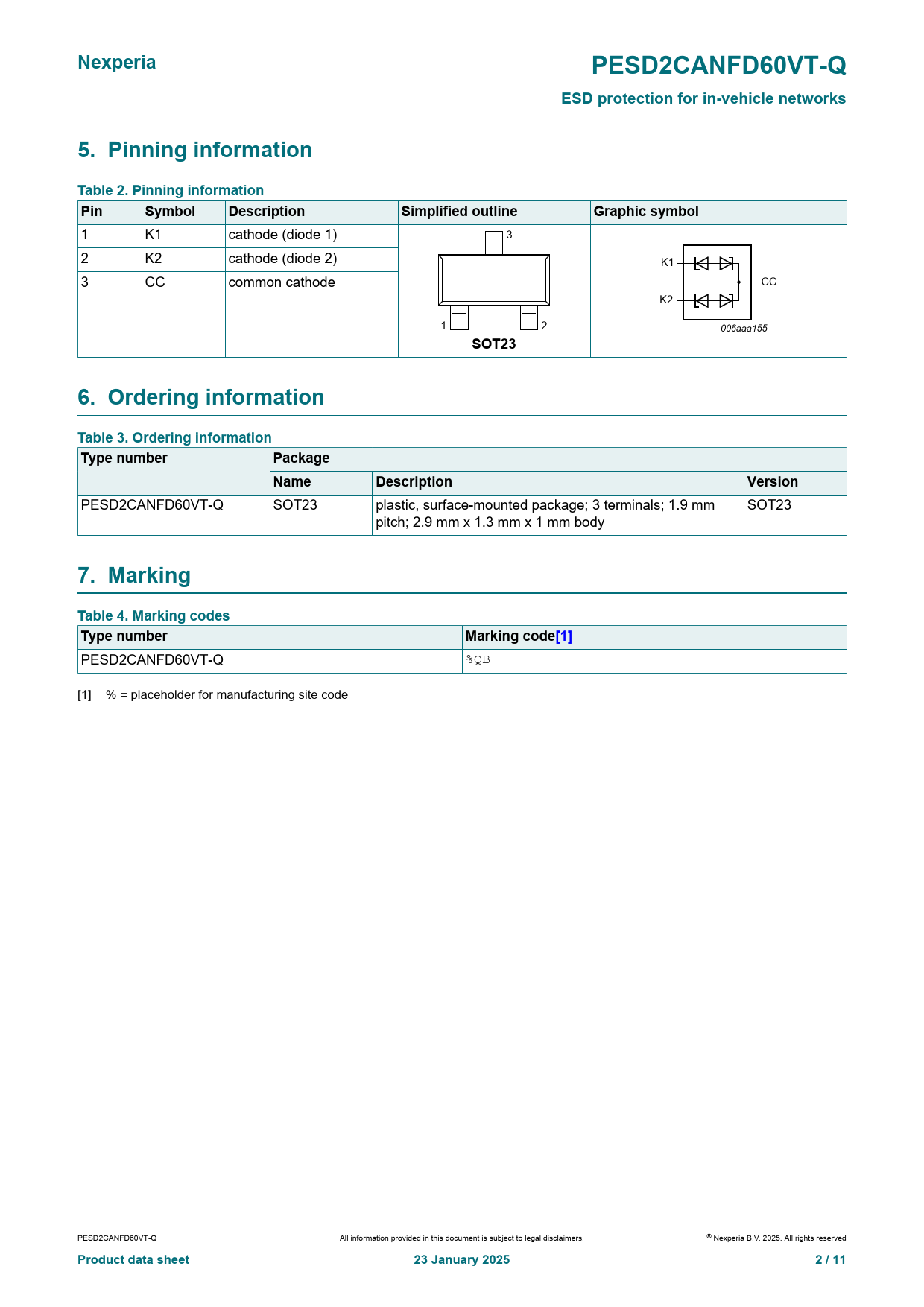

Nexperia PESD2CANFD60VT-Q ESD protection for in-vehicle networks 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 K1 cathode (diode 1) 3 2 K2 cathode (diode 2) K1 3 CC common cathode CC K2 1 2 006aaa155
SOT23 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PESD2CANFD60VT-Q SOT23 plastic, surface-mounted package; 3 terminals; 1.9 mm SOT23 pitch; 2.9 mm x 1.3 mm x 1 mm body
7. Marking Table 4. Marking codes Type number Marking code[1]
PESD2CANFD60VT-Q %QB [1] % = placeholder for manufacturing site code PESD2CANFD60VT-Q All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2025. Al rights reserved
Product data sheet 23 January 2025 2 / 11
