Datasheet FR307 (Diodes)
| Manufacturer | Diodes |
| Description | 3.0 A Fast Recovery Rectifier |
| Pages / Page | 2 / 1 — FR301 - FR307. 3.0A FAST RECOVERY RECTIFIER. NOT RECOMMENDED FOR NEW … |
| File Format / Size | PDF / 46 Kb |
| Document Language | English |
FR301 - FR307. 3.0A FAST RECOVERY RECTIFIER. NOT RECOMMENDED FOR NEW DESIGNS,. Features. PLEASE USE PR3001G - PR3007G
Model Line for this Datasheet
Text Version of Document

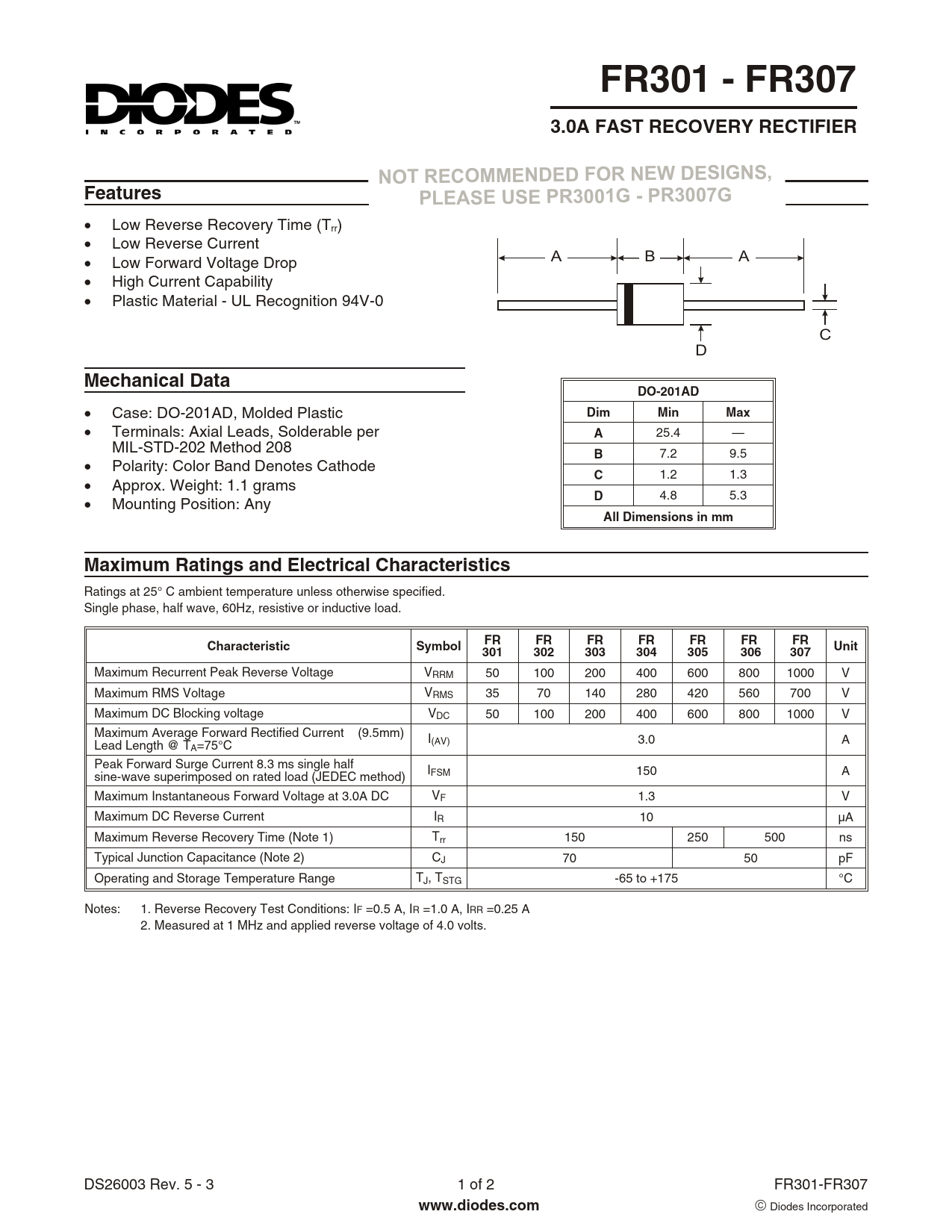

FR301 - FR307 3.0A FAST RECOVERY RECTIFIER NOT RECOMMENDED FOR NEW DESIGNS, Features PLEASE USE PR3001G - PR3007G
· Low Reverse Recovery Time (Trr) · Low Reverse Current · Low Forward Voltage Drop A B A · High Current Capability · Plastic Material - UL Recognition 94V-0 C D
Mechanical Data DO-201AD
· Case: DO-201AD, Molded Plastic
Dim Min Max
· Terminals: Axial Leads, Solderable per
A
25.4 — MIL-STD-202 Method 208
B
7.2 9.5 · Polarity: Color Band Denotes Cathode ·
C
1.2 1.3 Approx. Weight: 1.1 grams ·
D
4.8 5.3 Mounting Position: Any
All Dimensions in mm Maximum Ratings and Electrical Characteristics
Ratings at 25° C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
FR FR FR FR FR FR FR Characteristic Symbol Unit 301 302 303 304 305 306 307
Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current (9.5mm) I Lead Length @ T (AV) 3.0 A A=75°C Peak Forward Surge Current 8.3 ms single half I sine-wave superimposed on rated load (JEDEC method) FSM 150 A Maximum Instantaneous Forward Voltage at 3.0A DC VF 1.3 V Maximum DC Reverse Current IR 10 µA Maximum Reverse Recovery Time (Note 1) Trr 150 250 500 ns Typical Junction Capacitance (Note 2) CJ 70 50 pF Operating and Storage Temperature Range TJ, TSTG -65 to +175 °C Notes: 1. Reverse Recovery Test Conditions: IF =0.5 A, IR =1.0 A, IRR =0.25 A 2. Measured at 1 MHz and applied reverse voltage of 4.0 volts. DS26003 Rev. 5 - 3 1 of 2 FR301-FR307
www.diodes.com
ã Diodes Incorporated
