Datasheet MMBTA42 (Nexperia)
| Manufacturer | Nexperia |
| Description | NPN high-voltage transistor |
| Pages / Page | 7 / 1 — MMBTA42. NPN high-voltage transistor. 12 October 2023. Product data … |
| Revision | 12202310 |
| File Format / Size | PDF / 205 Kb |
| Document Language | English |

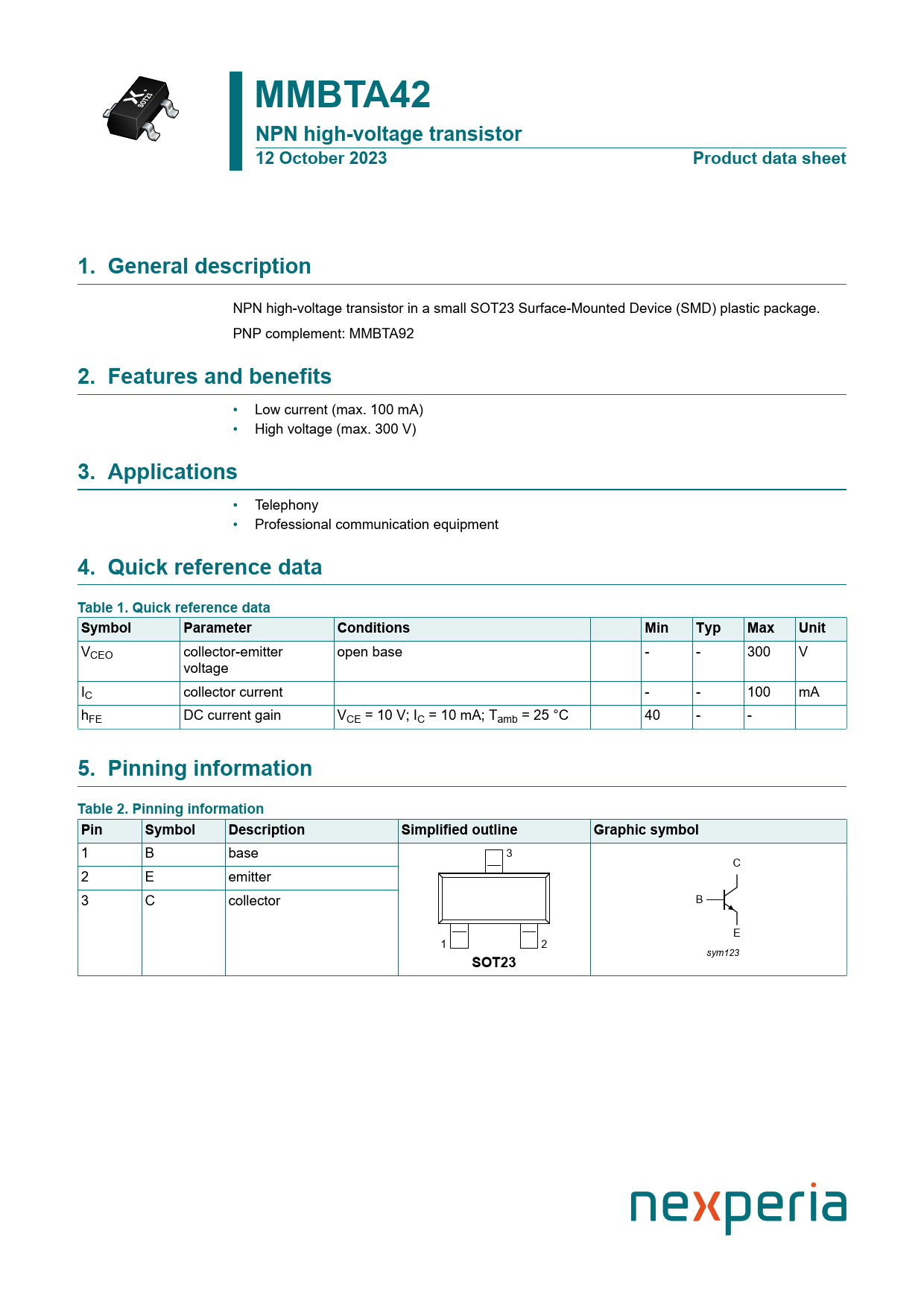

MMBTA42. NPN high-voltage transistor. 12 October 2023. Product data sheet. 1. General description. 2. Features and benefits
Model Line for this Datasheet
Text Version of Document
MMBTA42 NPN high-voltage transistor 12 October 2023 Product data sheet 1. General description
NPN high-voltage transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. PNP complement: MMBTA92
2. Features and benefits
• Low current (max. 100 mA) • High voltage (max. 300 V)
3. Applications
• Telephony • Professional communication equipment
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter open base - - 300 V voltage IC collector current - - 100 mA hFE DC current gain VCE = 10 V; IC = 10 mA; Tamb = 25 °C 40 - -
5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 B base 3 C 2 E emitter 3 C collector B E 1 2
SOT23
