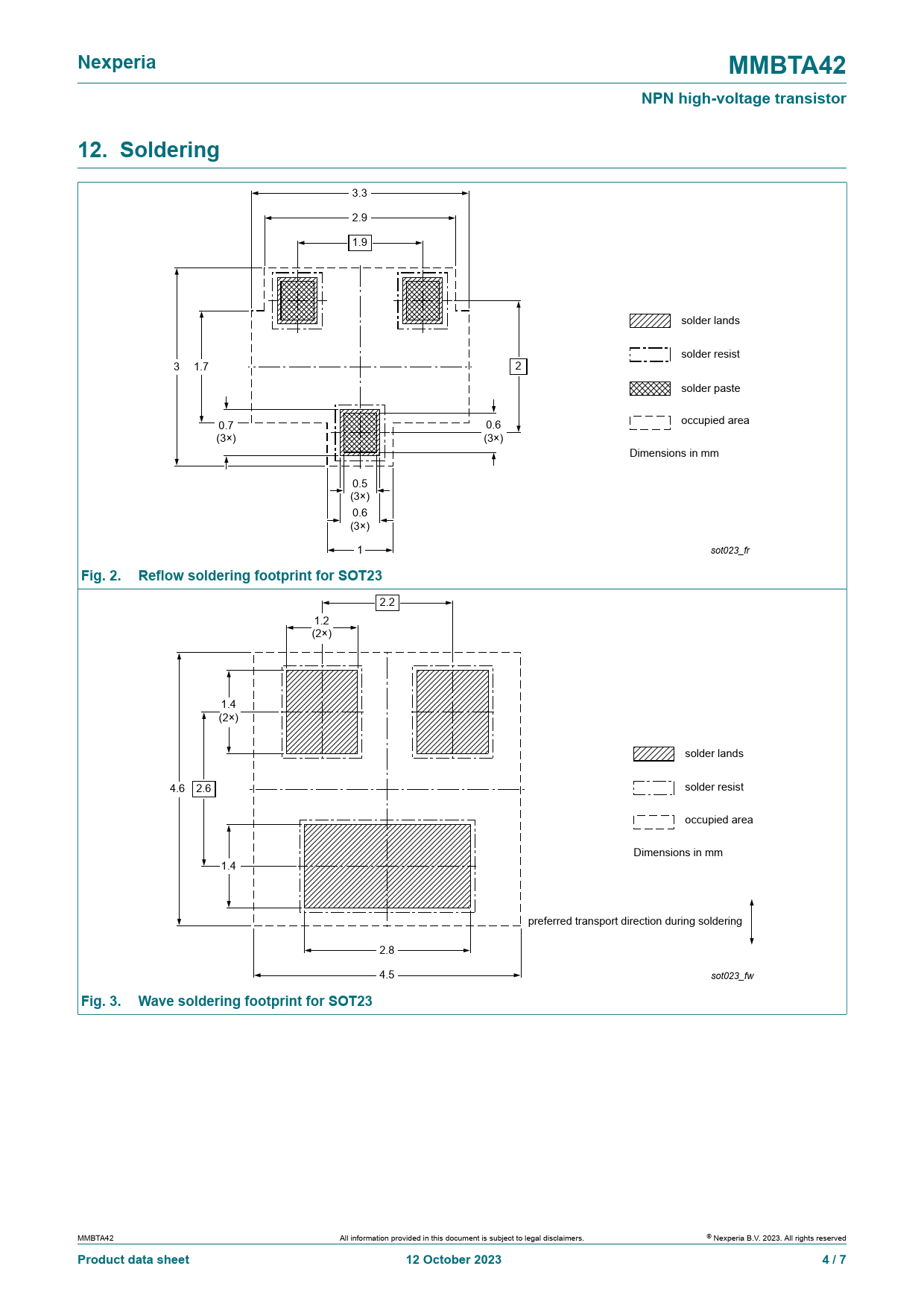

Nexperia. MMBTA42. NPN high-voltage transistor. 12. Soldering. Fig. 2. Reflow soldering footprint for SOT23
Model Line for this Datasheet
Text Version of Document
Nexperia MMBTA42 NPN high-voltage transistor 12. Soldering
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot023_fr
Fig. 2. Reflow soldering footprint for SOT23
2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 2.6 solder resist occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot023_fw
Fig. 3. Wave soldering footprint for SOT23
