Datasheet RV4L (Vishay)
| Manufacturer | Vishay |
| Description | Long Life / Heavy Duty Potentiometer |
| Pages / Page | 5 / 1 — RV4L. Long Life / Heavy Duty Potentiometer. FEATURES. LINKS TO ADDITIONAL … |
| File Format / Size | PDF / 114 Kb |
| Document Language | English |
RV4L. Long Life / Heavy Duty Potentiometer. FEATURES. LINKS TO ADDITIONAL RESOURCES. D 3. 3 D. 3D Models. Capabilities and
Model Line for this Datasheet
Text Version of Document

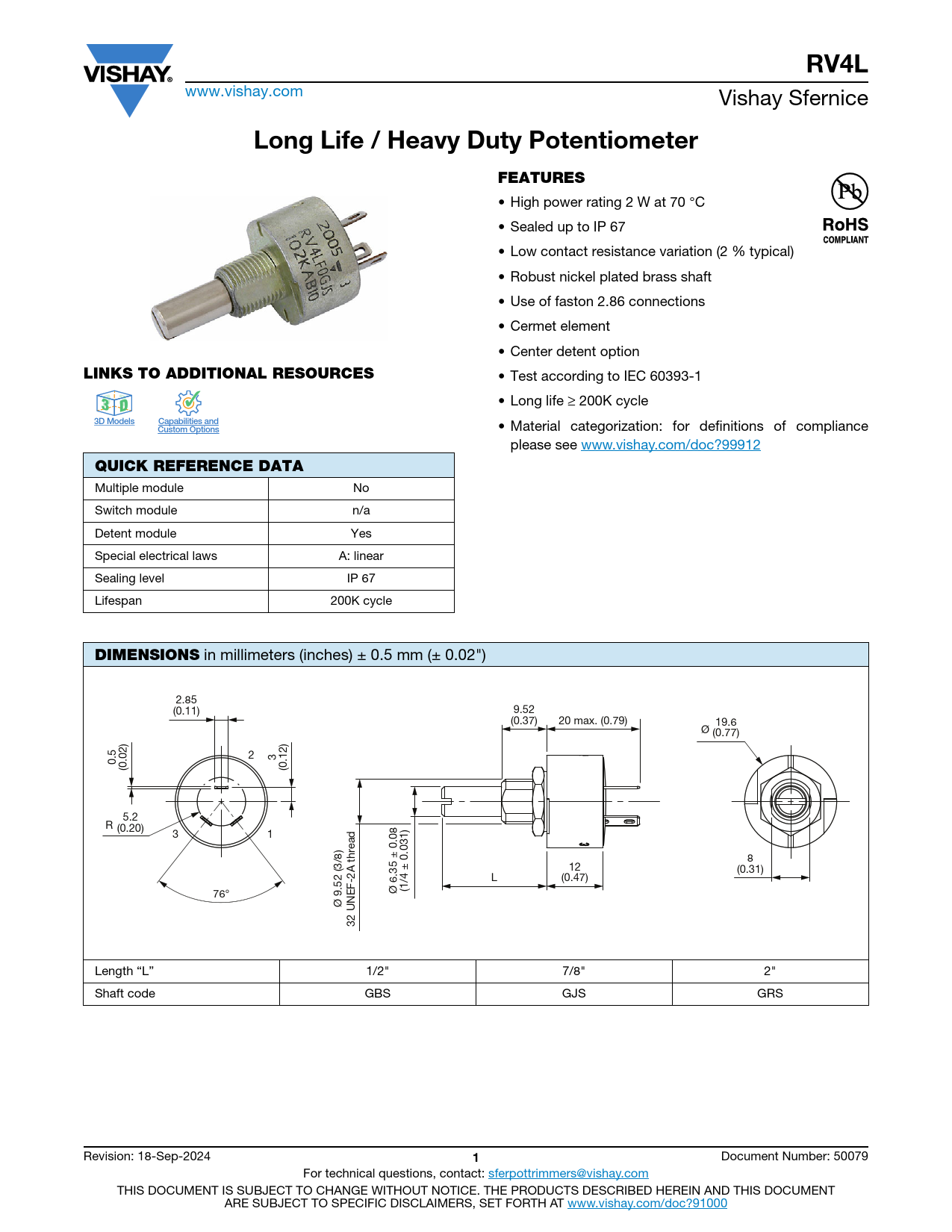

RV4L
www.vishay.com Vishay Sfernice
Long Life / Heavy Duty Potentiometer FEATURES
• High power rating 2 W at 70 °C • Sealed up to IP 67 • Low contact resistance variation (2 % typical) • Robust nickel plated brass shaft • Use of faston 2.86 connections • Cermet element • Center detent option
LINKS TO ADDITIONAL RESOURCES
• Test according to IEC 60393-1
D 3
• Long life ≥ 200K cycle
3 D 3D Models Capabilities and Custom Options
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
QUICK REFERENCE DATA
Multiple module No Switch module n/a Detent module Yes Special electrical laws A: linear Sealing level IP 67 Lifespan 200K cycle
DIMENSIONS
in millimeters (inches) ± 0.5 mm (± 0.02") 2.85 (0.11) 9.52 (0.37) 20 max. (0.79) 19.6 Ø (0.77) 2 0.5 3 (0.02) (0.12) 5.2 R (0.20) 3 1 ad re th 8 3/8) ( 12 (0.31) 2 L (0.47) EF-2A Ø 6.35 ± 0.08 (1/4 ± 0.031) 76° Ø 9.5 32 UN Length “L” 1/2" 7/8" 2" Shaft code GBS GJS GRS Revision: 18-Sep-2024
1
Document Number: 50079 For technical questions, contact: sferpottrimmers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Sfernice
Long Life / Heavy Duty Potentiometer FEATURES
• High power rating 2 W at 70 °C • Sealed up to IP 67 • Low contact resistance variation (2 % typical) • Robust nickel plated brass shaft • Use of faston 2.86 connections • Cermet element • Center detent option
LINKS TO ADDITIONAL RESOURCES
• Test according to IEC 60393-1
D 3
• Long life ≥ 200K cycle
3 D 3D Models Capabilities and Custom Options
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
QUICK REFERENCE DATA
Multiple module No Switch module n/a Detent module Yes Special electrical laws A: linear Sealing level IP 67 Lifespan 200K cycle
DIMENSIONS
in millimeters (inches) ± 0.5 mm (± 0.02") 2.85 (0.11) 9.52 (0.37) 20 max. (0.79) 19.6 Ø (0.77) 2 0.5 3 (0.02) (0.12) 5.2 R (0.20) 3 1 ad re th 8 3/8) ( 12 (0.31) 2 L (0.47) EF-2A Ø 6.35 ± 0.08 (1/4 ± 0.031) 76° Ø 9.5 32 UN Length “L” 1/2" 7/8" 2" Shaft code GBS GJS GRS Revision: 18-Sep-2024
1
Document Number: 50079 For technical questions, contact: sferpottrimmers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
