Datasheet PMV65XPE (Nexperia) - 2
| Manufacturer | Nexperia |
| Description | 20 V, P-channel Trench MOSFET |
| Pages / Page | 15 / 2 — Nexperia. PMV65XPE. 20 V, P-channel Trench MOSFET. 5. Pinning … |
| Revision | 04201705 |
| File Format / Size | PDF / 719 Kb |
| Document Language | English |
Nexperia. PMV65XPE. 20 V, P-channel Trench MOSFET. 5. Pinning information. Table 2. Pinning information. Pin. Symbol Description
Model Line for this Datasheet
Text Version of Document
link to page 2

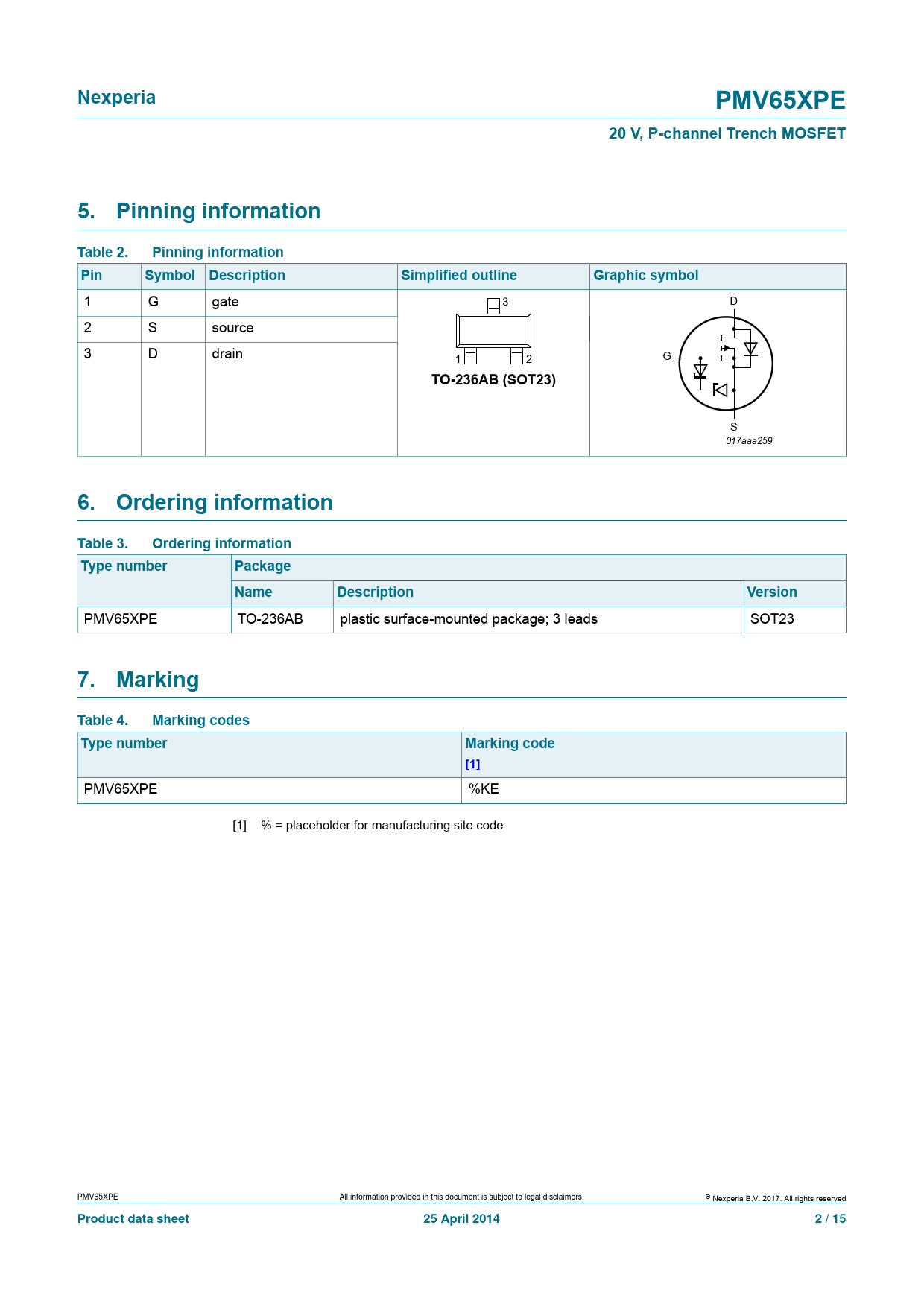

Nexperia PMV65XPE 20 V, P-channel Trench MOSFET 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 G gate 3 D 2 S source 3 D drain 1 2 G
TO-236AB (SOT23)
S 017aaa259
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PMV65XPE TO-236AB plastic surface-mounted package; 3 leads SOT23
7. Marking Table 4. Marking codes Type number Marking code [1]
PMV65XPE %KE [1] % = placeholder for manufacturing site code PMV65XPE All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 25 April 2014 2 / 15
