Datasheet PMV65XPE (Nexperia) - 3
| Manufacturer | Nexperia |
| Description | 20 V, P-channel Trench MOSFET |
| Pages / Page | 15 / 3 — Nexperia. PMV65XPE. 20 V, P-channel Trench MOSFET. 8. Limiting values. … |
| Revision | 04201705 |
| File Format / Size | PDF / 719 Kb |
| Document Language | English |
Nexperia. PMV65XPE. 20 V, P-channel Trench MOSFET. 8. Limiting values. Table 5. Limiting values. Symbol. Parameter. Conditions. Min. Max
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

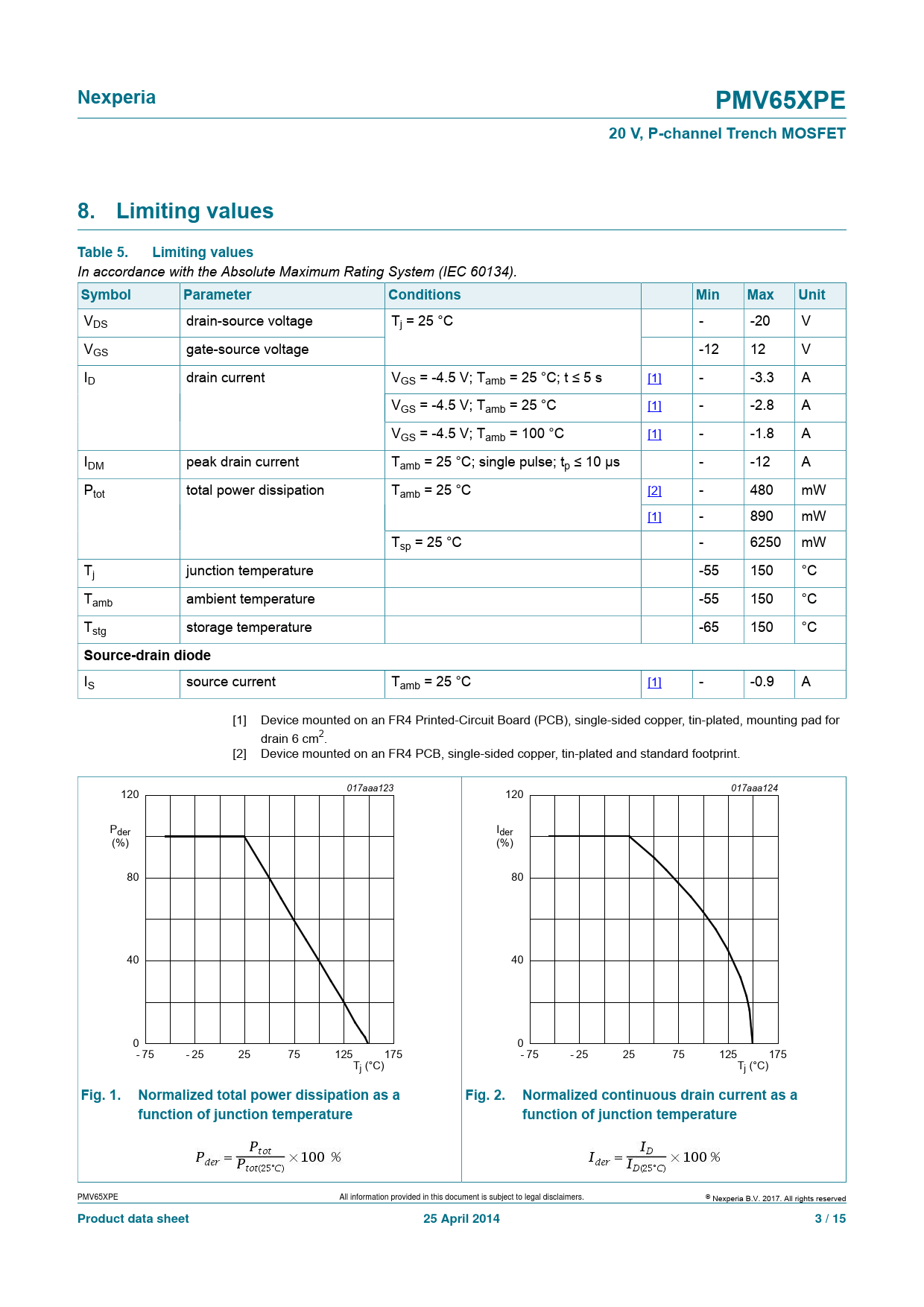

Nexperia PMV65XPE 20 V, P-channel Trench MOSFET 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage Tj = 25 °C - -20 V VGS gate-source voltage -12 12 V ID drain current VGS = -4.5 V; Tamb = 25 °C; t ≤ 5 s [1] - -3.3 A VGS = -4.5 V; Tamb = 25 °C [1] - -2.8 A VGS = -4.5 V; Tamb = 100 °C [1] - -1.8 A IDM peak drain current Tamb = 25 °C; single pulse; tp ≤ 10 µs - -12 A Ptot total power dissipation Tamb = 25 °C [2] - 480 mW [1] - 890 mW Tsp = 25 °C - 6250 mW Tj junction temperature -55 150 °C Tamb ambient temperature -55 150 °C Tstg storage temperature -65 150 °C
Source-drain diode
IS source current Tamb = 25 °C [1] - -0.9 A [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for drain 6 cm2. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. 017aaa123 120 017aaa124 120 Pder Ider (%) (%) 80 80 40 40 0 0 - 75 - 25 25 75 125 175 - 75 - 25 25 75 125 175 Tj (°C) Tj (°C)
