Datasheet PMV65ENEA (Nexperia) - 2
| Manufacturer | Nexperia |
| Description | 40 V, N-channel Trench MOSFET |
| Pages / Page | 16 / 2 — Nexperia. PMV65ENEA. 40 V, N-channel Trench MOSFET. 5. Pinning … |
| Revision | 20201703 |
| File Format / Size | PDF / 733 Kb |
| Document Language | English |
Nexperia. PMV65ENEA. 40 V, N-channel Trench MOSFET. 5. Pinning information. Table 2. Pinning information. Pin. Symbol Description
Model Line for this Datasheet
Text Version of Document
link to page 2

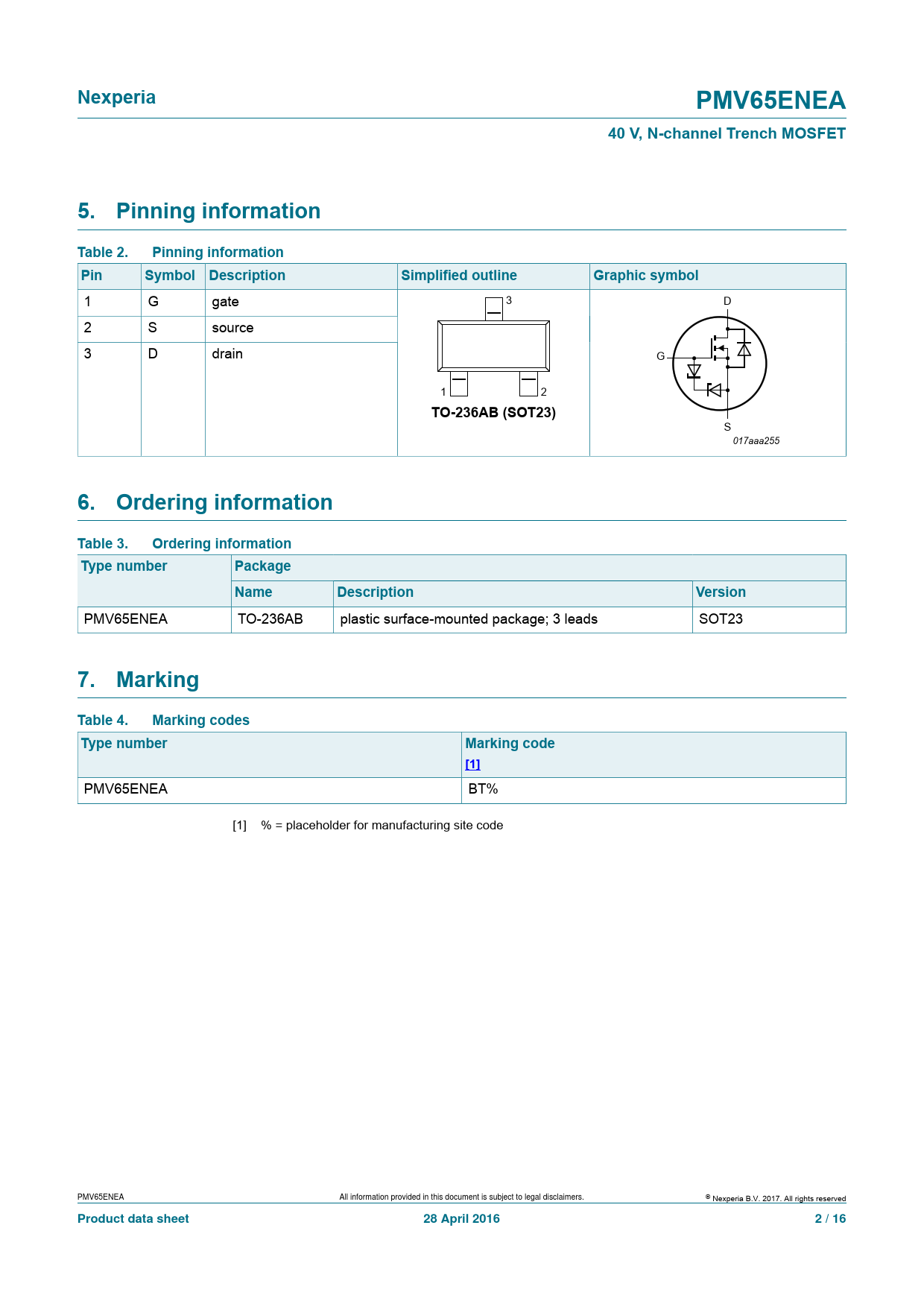

Nexperia PMV65ENEA 40 V, N-channel Trench MOSFET 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 G gate 3 D 2 S source 3 D drain G 1 2
TO-236AB (SOT23)
S 017aaa255
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PMV65ENEA TO-236AB plastic surface-mounted package; 3 leads SOT23
7. Marking Table 4. Marking codes Type number Marking code [1]
PMV65ENEA BT% [1] % = placeholder for manufacturing site code PMV65ENEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 28 April 2016 2 / 16
