Nexperia PMV65ENEA 40 V, N-channel Trench MOSFET
aaa-022636 10 aaa-022637 10-3 I 10 V 4.5 V D (A) ID 8 (A) 3.2 V min typ max 10-4 6 3 V 4 10-5 2 VGS = 2.5 V 0 10-6 0 1 2 3 4 0 0.5 1 1.5 2 2.5 3 VDS (V) VGS (V) Tj = 25 °C VDS = 5 V

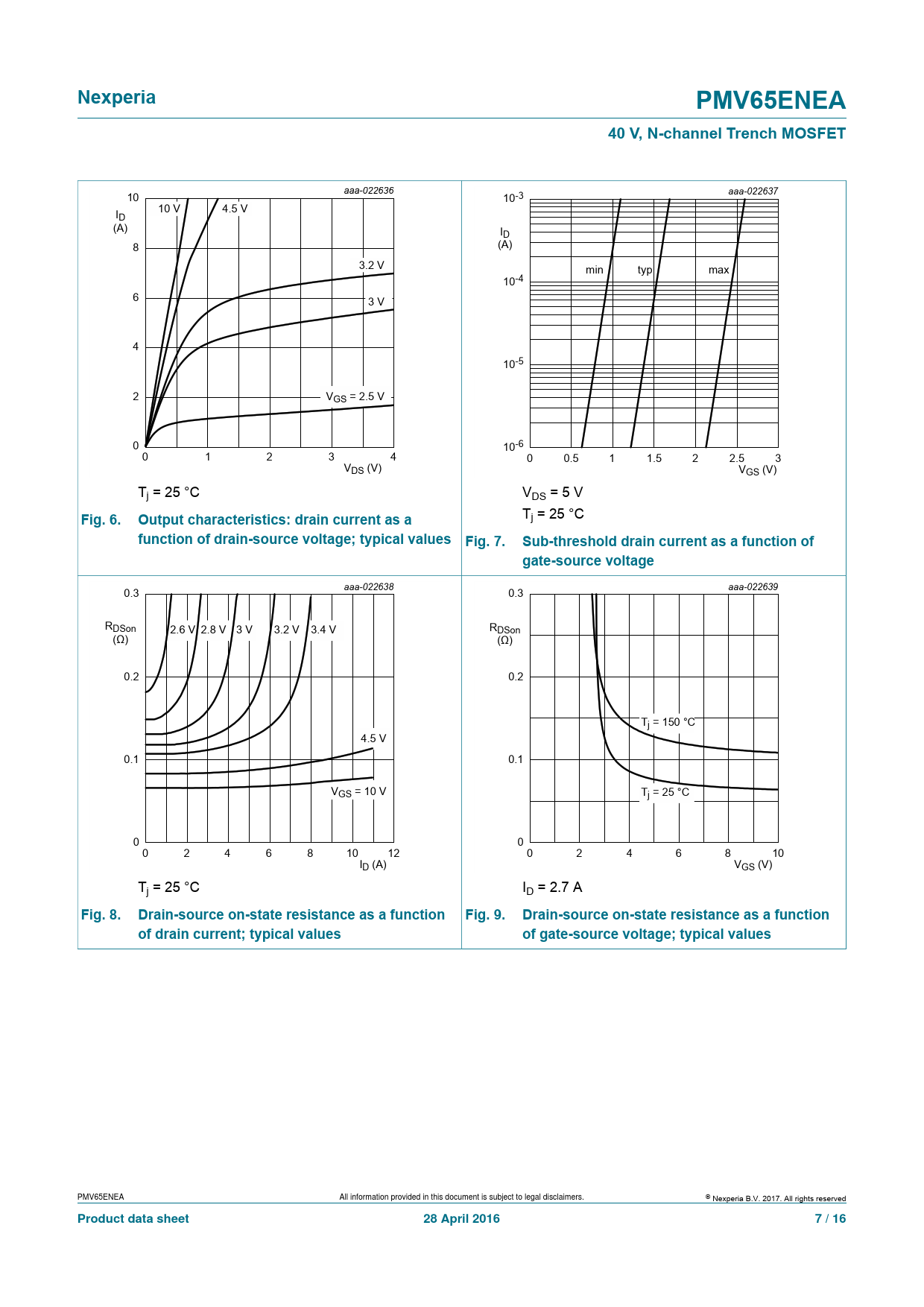

Fig. 6. Output characteristics: drain current as a
Tj = 25 °C
function of drain-source voltage; typical values Fig. 7. Sub-threshold drain current as a function of gate-source voltage
aaa-022638 0.3 aaa-022639 0.3 RDSon 2.6 V 2.8 V 3 V 3.2 V 3.4 V RDSon (Ω) (Ω) 0.2 0.2 Tj = 150 °C 4.5 V 0.1 0.1 VGS = 10 V Tj = 25 °C 0 0 0 2 4 6 8 10 12 0 2 4 6 8 10 ID (A) VGS (V) Tj = 25 °C ID = 2.7 A
Fig. 8. Drain-source on-state resistance as a function Fig. 9. Drain-source on-state resistance as a function of drain current; typical values of gate-source voltage; typical values
PMV65ENEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 28 April 2016 7 / 16
