Datasheet PMV65UNEA (Nexperia) - 6
| Manufacturer | Nexperia |
| Description | 20 V, N-channel Trench MOSFET |
| Pages / Page | 15 / 6 — Nexperia. PMV65UNEA. 20 V, N-channel Trench MOSFET. 10. Characteristics. … |
| Revision | 23202103 |
| File Format / Size | PDF / 258 Kb |
| Document Language | English |

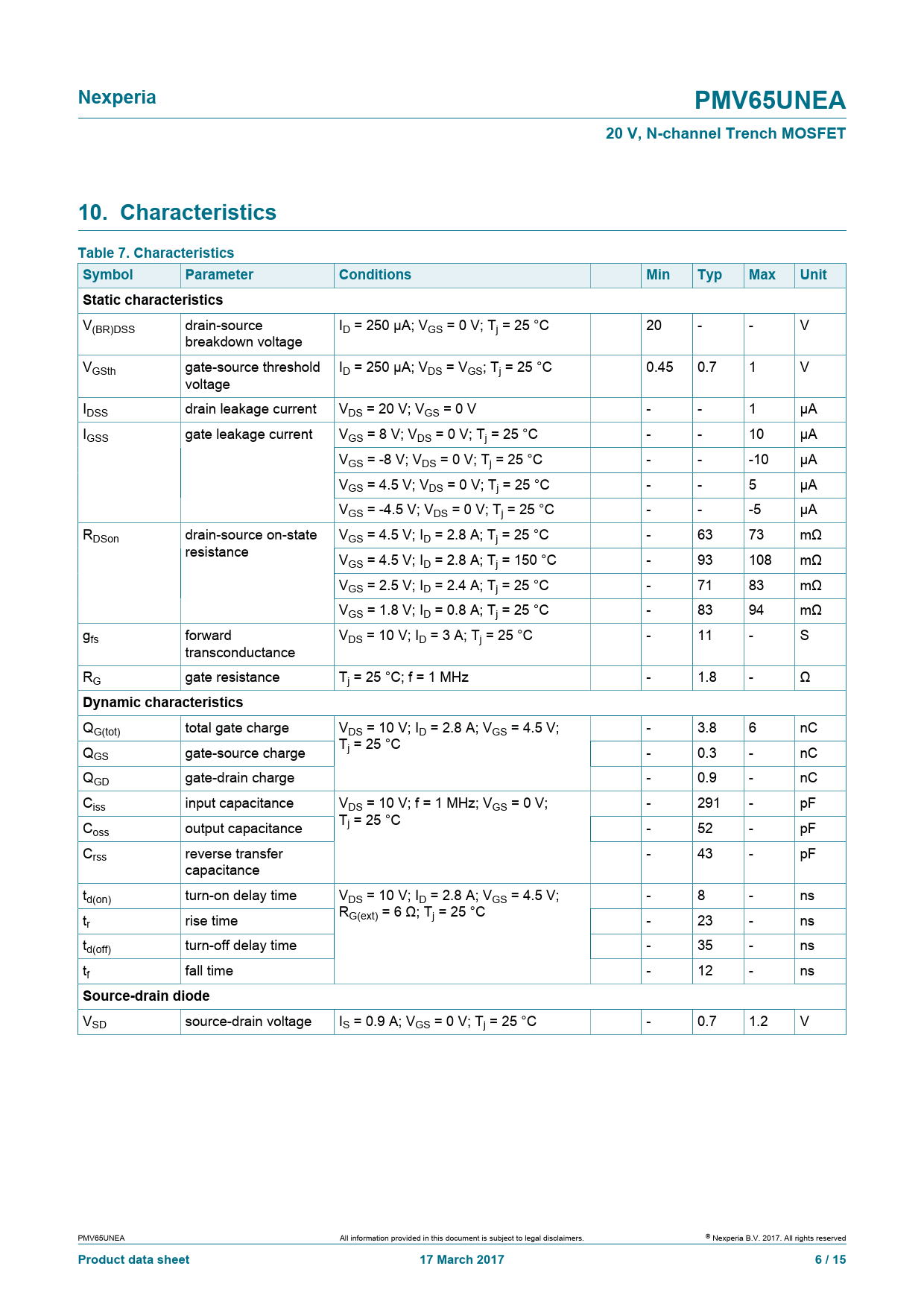

Nexperia. PMV65UNEA. 20 V, N-channel Trench MOSFET. 10. Characteristics. Table 7. Characteristics. Symbol. Parameter. Conditions. Min
Model Line for this Datasheet
Text Version of Document
Nexperia PMV65UNEA 20 V, N-channel Trench MOSFET 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics
V(BR)DSS drain-source ID = 250 µA; VGS = 0 V; Tj = 25 °C 20 - - V breakdown voltage VGSth gate-source threshold ID = 250 µA; VDS = VGS; Tj = 25 °C 0.45 0.7 1 V voltage IDSS drain leakage current VDS = 20 V; VGS = 0 V - - 1 µA IGSS gate leakage current VGS = 8 V; VDS = 0 V; Tj = 25 °C - - 10 µA VGS = -8 V; VDS = 0 V; Tj = 25 °C - - -10 µA VGS = 4.5 V; VDS = 0 V; Tj = 25 °C - - 5 µA VGS = -4.5 V; VDS = 0 V; Tj = 25 °C - - -5 µA RDSon drain-source on-state VGS = 4.5 V; ID = 2.8 A; Tj = 25 °C - 63 73 mΩ resistance VGS = 4.5 V; ID = 2.8 A; Tj = 150 °C - 93 108 mΩ VGS = 2.5 V; ID = 2.4 A; Tj = 25 °C - 71 83 mΩ VGS = 1.8 V; ID = 0.8 A; Tj = 25 °C - 83 94 mΩ gfs forward VDS = 10 V; ID = 3 A; Tj = 25 °C - 11 - S transconductance RG gate resistance Tj = 25 °C; f = 1 MHz - 1.8 - Ω
Dynamic characteristics
QG(tot) total gate charge VDS = 10 V; ID = 2.8 A; VGS = 4.5 V; - 3.8 6 nC Q Tj = 25 °C GS gate-source charge - 0.3 - nC QGD gate-drain charge - 0.9 - nC Ciss input capacitance VDS = 10 V; f = 1 MHz; VGS = 0 V; - 291 - pF C Tj = 25 °C oss output capacitance - 52 - pF Crss reverse transfer - 43 - pF capacitance td(on) turn-on delay time VDS = 10 V; ID = 2.8 A; VGS = 4.5 V; - 8 - ns t RG(ext) = 6 Ω; Tj = 25 °C r rise time - 23 - ns td(off) turn-off delay time - 35 - ns tf fall time - 12 - ns
Source-drain diode
VSD source-drain voltage IS = 0.9 A; VGS = 0 V; Tj = 25 °C - 0.7 1.2 V PMV65UNEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 17 March 2017 6 / 15
