Datasheet PMV65XP (Nexperia) - 5
| Manufacturer | Nexperia |
| Description | 20 V, single P-channel Trench MOSFET |
| Pages / Page | 14 / 5 — Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET |
| Revision | 04201705 |
| File Format / Size | PDF / 742 Kb |
| Document Language | English |
Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET
Model Line for this Datasheet
Text Version of Document
Nexperia PMV65XP 20 V, single P-channel Trench MOSFET

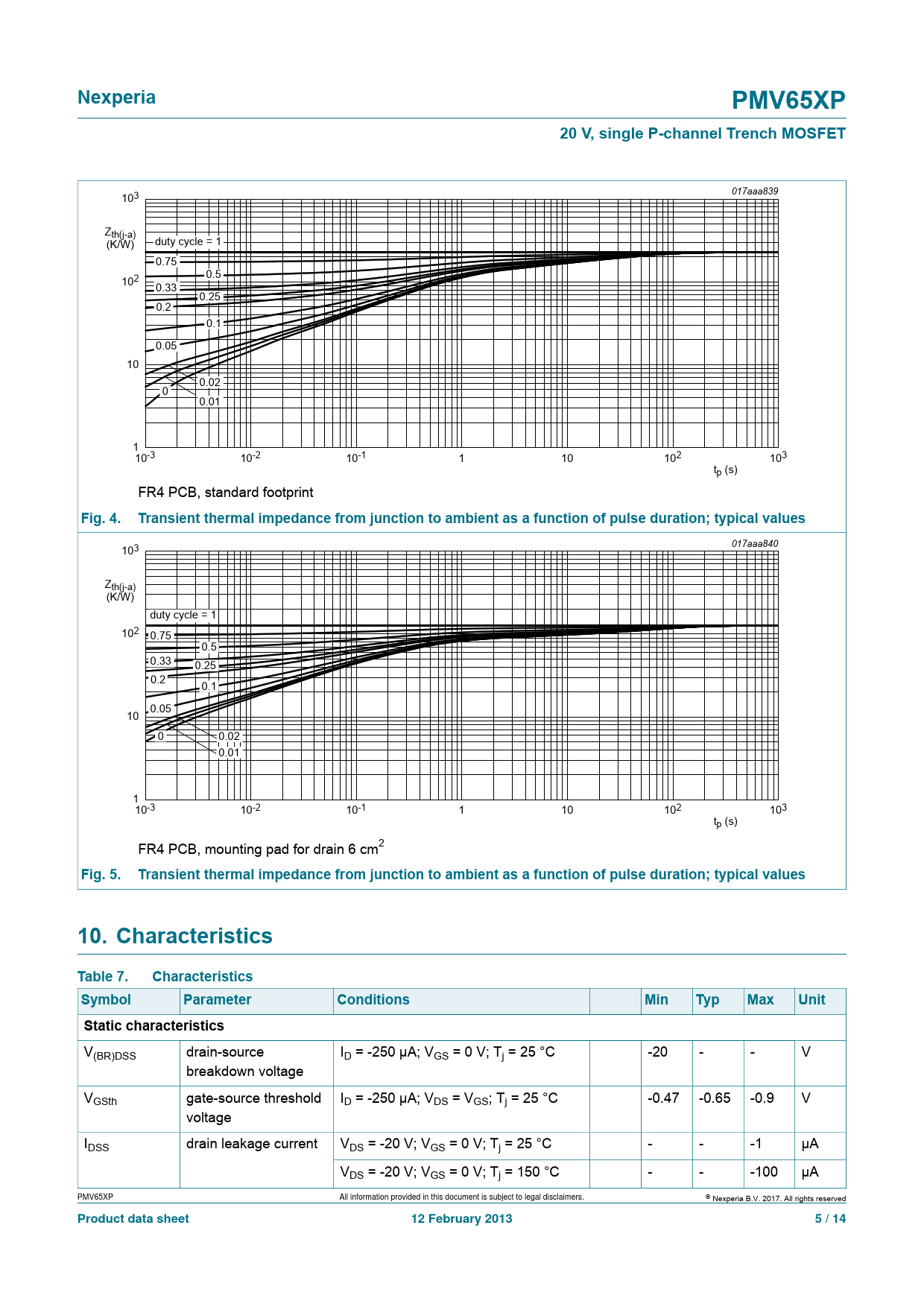

017aaa839 103 Zth(j-a) (K/W) duty cycle = 1 0.75 0.5 102 0.33 0.25 0.2 0.1 0.05 10 0.02 0 0.01 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, standard footprint
Fig. 4. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
017aaa840 103 Zth(j-a) (K/W) duty cycle = 1 102 0.75 0.5 0.33 0.25 0.2 0.1 0.05 10 0 0.02 0.01 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, mounting pad for drain 6 cm2
Fig. 5. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics
V(BR)DSS drain-source ID = -250 µA; VGS = 0 V; Tj = 25 °C -20 - - V breakdown voltage VGSth gate-source threshold ID = -250 µA; VDS = VGS; Tj = 25 °C -0.47 -0.65 -0.9 V voltage IDSS drain leakage current VDS = -20 V; VGS = 0 V; Tj = 25 °C - - -1 µA VDS = -20 V; VGS = 0 V; Tj = 150 °C - - -100 µA PMV65XP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 12 February 2013 5 / 14
