Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET
Model Line for this Datasheet
Text Version of Document
Nexperia PMV65XP 20 V, single P-channel Trench MOSFET

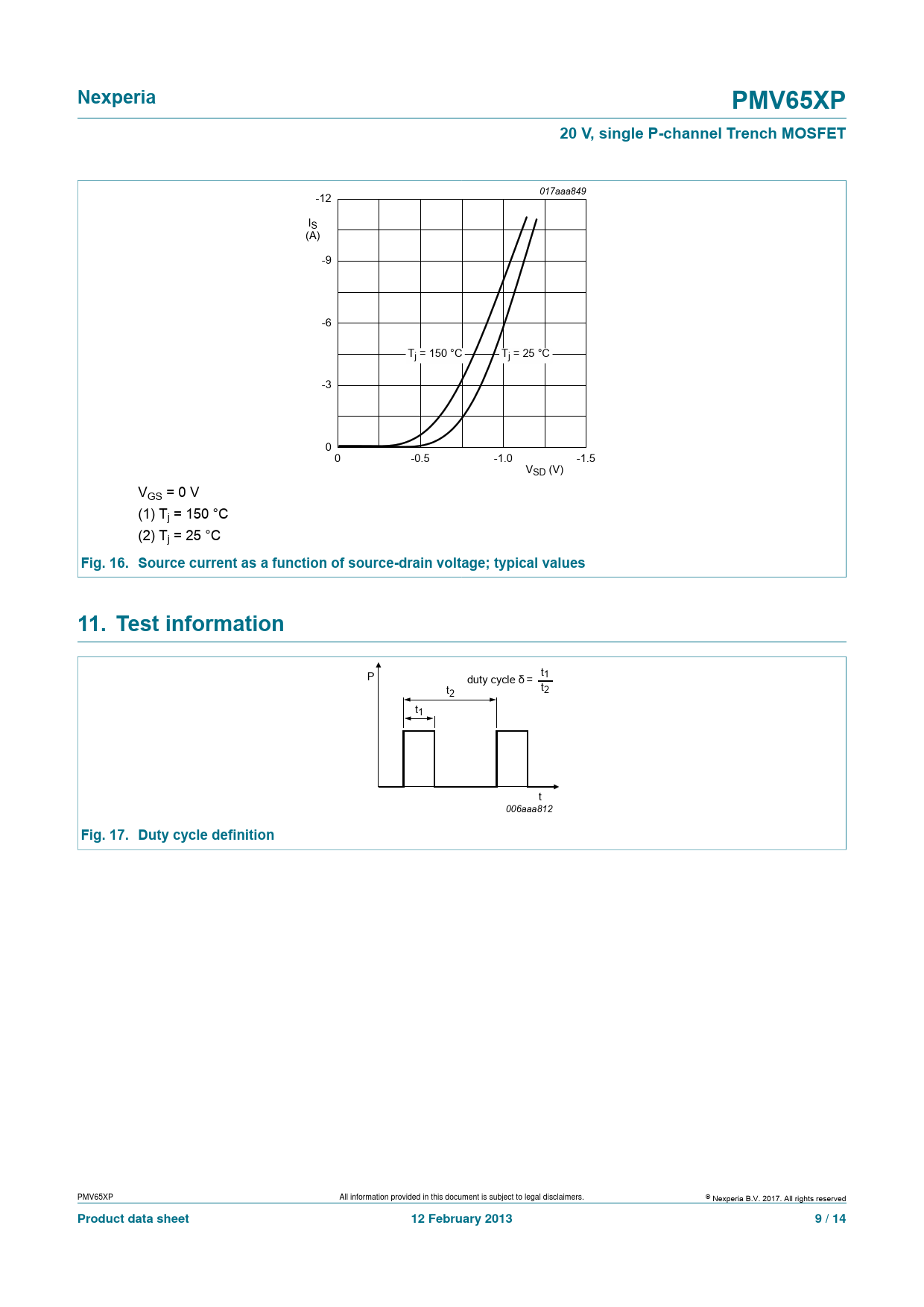

017aaa849 -12 IS (A) -9 -6 Tj = 150 °C Tj = 25 °C -3 0 0 -0.5 -1.0 -1.5 VSD (V) VGS = 0 V (1) Tj = 150 °C (2) Tj = 25 °C
Fig. 16. Source current as a function of source-drain voltage; typical values 11. Test information
t1 P duty cycle δ = t t 2 2 t1 t 006aaa812
Fig. 17. Duty cycle definition
