Datasheet PMV65XP (Nexperia) - 10
| Manufacturer | Nexperia |
| Description | 20 V, single P-channel Trench MOSFET |
| Pages / Page | 14 / 10 — Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET. 12. Package … |
| Revision | 04201705 |
| File Format / Size | PDF / 742 Kb |
| Document Language | English |

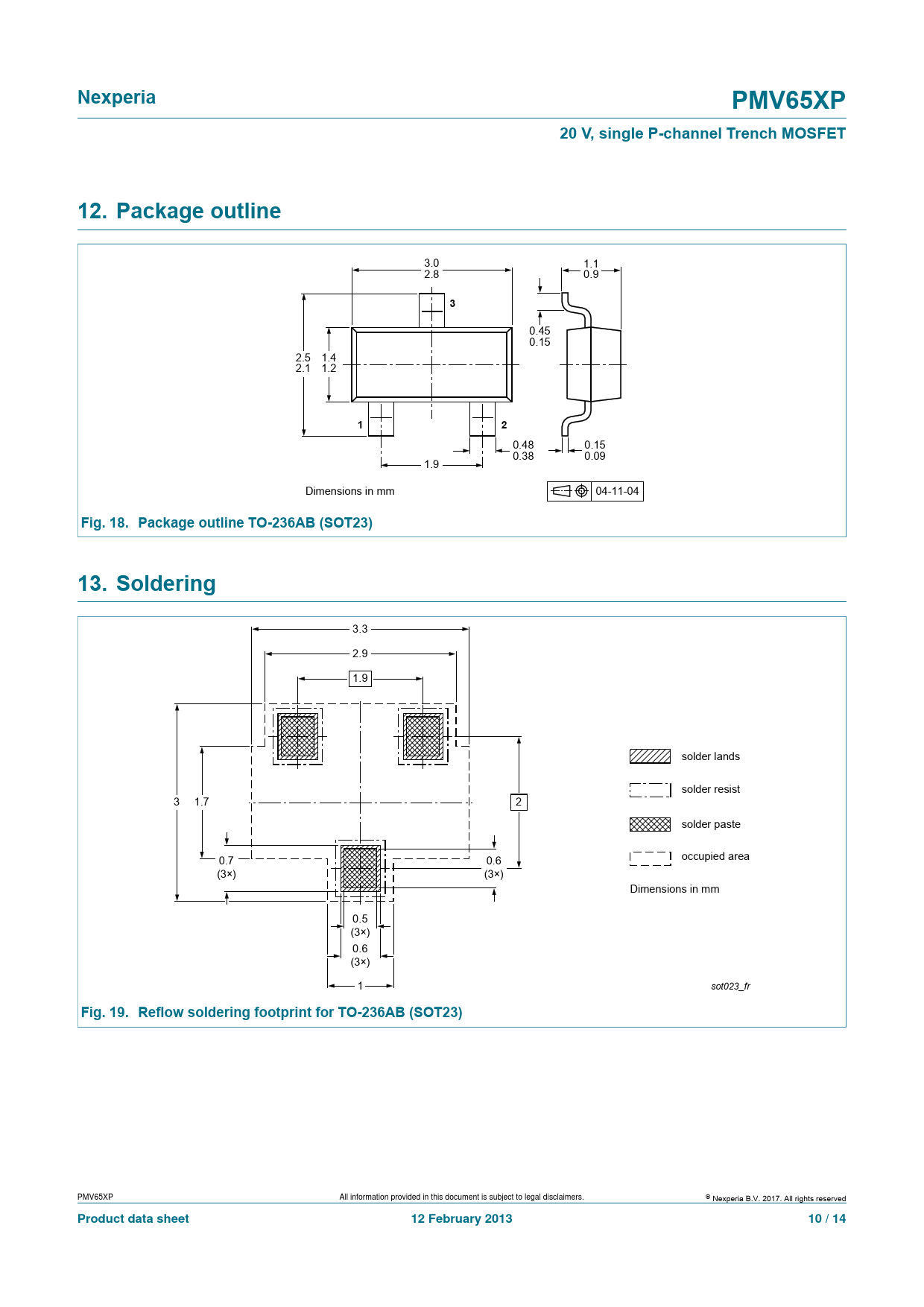

Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET. 12. Package outline. Fig. 18. Package outline TO-236AB (SOT23)
Model Line for this Datasheet
Text Version of Document
Nexperia PMV65XP 20 V, single P-channel Trench MOSFET 12. Package outline
3.0 1.1 2.8 0.9
3
0.45 0.15 2.5 1.4 2.1 1.2
1 2
0.48 0.15 0.38 0.09 1.9 Dimensions in mm 04-11-04
Fig. 18. Package outline TO-236AB (SOT23) 13. Soldering
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot023_fr
Fig. 19. Reflow soldering footprint for TO-236AB (SOT23)
PMV65XP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 12 February 2013 10 / 14
