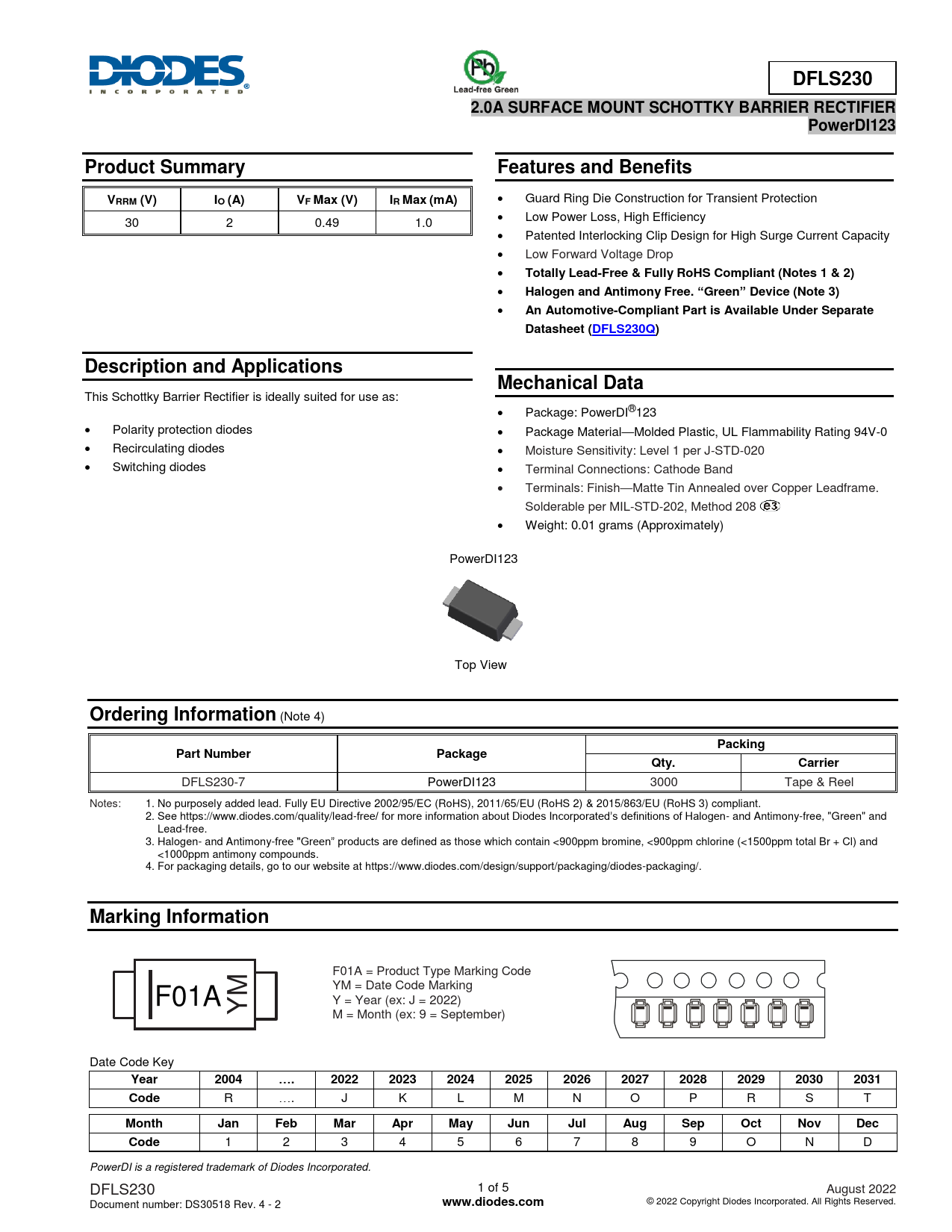

DFLS230. 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER. PowerDI123. Product Summary. Features and Benefits. RRM (V). IO (A). VF Max
Model Line for this Datasheet
Text Version of Document
DFLS230 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI123 Product Summary Features and Benefits V RRM (V) IO (A) VF Max (V) IR Max (mA)
Guard Ring Die Construction for Transient Protection 30 2 0.49 1.0 Low Power Loss, High Efficiency Patented Interlocking Clip Design for High Surge Current Capacity Low Forward Voltage Drop
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) An Automotive-Compliant Part is Available Under Separate Datasheet (DFLS230Q) Description and Applications Mechanical Data
This Schottky Barrier Rectifier is ideally suited for use as: Package: PowerDI® 123 Polarity protection diodes Package Material—Molded Plastic, UL Flammability Rating 94V-0 Recirculating diodes Moisture Sensitivity: Level 1 per J-STD-020 Switching diodes Terminal Connections: Cathode Band Terminals: Finish—Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.01 grams (Approximately) Power DI123 Top View
