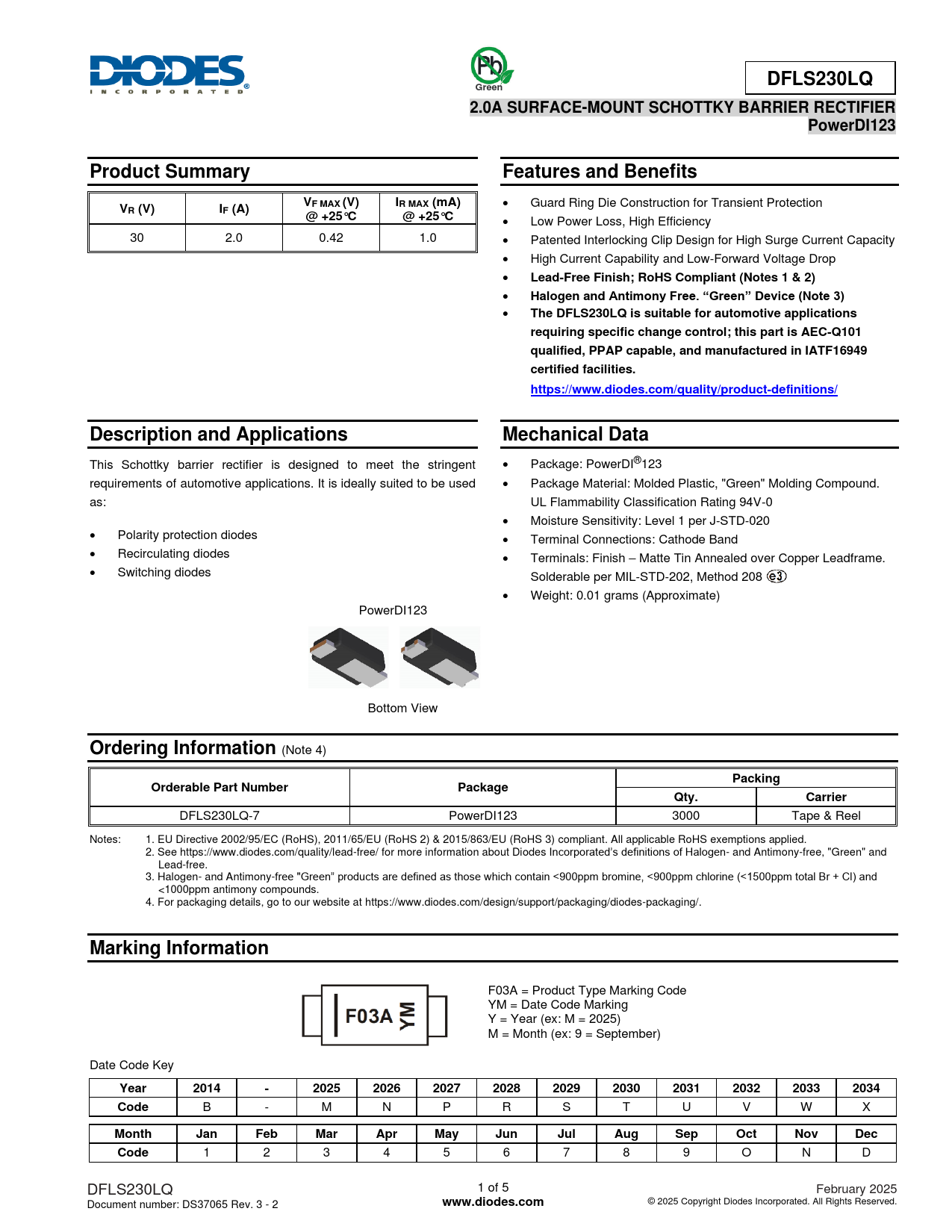

DFLS230LQ. Green. 2.0A SURFACE-MOUNT SCHOTTKY BARRIER RECTIFIER. PowerDI123. Product Summary. Features and Benefits. F MAX (V)
Model Line for this Datasheet
Text Version of Document
DFLS230LQ Green 2.0A SURFACE-MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI123 Product Summary Features and Benefits V I
• Guard Ring Die Construction for Transient Protection
V F MAX (V) R MAX (mA) R (V) IF (A) @ +25°C @ +25°C
• Low Power Loss, High Efficiency 30 2.0 0.42 1.0 • Patented Interlocking Clip Design for High Surge Current Capacity • High Current Capability and Low-Forward Voltage Drop •
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
The DFLS230LQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/ Description and Applications Mechanical Data
This Schottky barrier rectifier is designed to meet the stringent • Package: PowerDI® 123 requirements of automotive applications. It is ideally suited to be used • Package Material: Molded Plastic, "Green" Molding Compound. as: UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Polarity protection diodes • Terminal Connections: Cathode Band • Recirculating diodes • Terminals: Finish – Matte Tin Annealed over Copper Leadframe. • Switching diodes Solderable per MIL-STD-202, Method 208 • Weight: 0.01 grams (Approximate) PowerDI123 Bottom View
Ordering Information
(Note 4)
Packing Orderable Part Number Package Qty. Carrier
DFLS230LQ-7 PowerDI123 3000 Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
F03A = Product Type Marking Code YM = Date Code Marking Y = Year (ex: M = 2025) M = Month (ex: 9 = September) Date Code Key
Year 2014 - 2025 2026 2027 2028 2029 2030 2031 2032 2033 2034 Code
B - M N P R S T U V W X
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D DFLS230LQ 1 of 5 February 2025 Document number: DS37065 Rev. 3 - 2
