Datasheet IRGPS60B120KDP (Infineon) - 10
| Manufacturer | Infineon |
| Description | Insulated Gate Bipolar Transistor (IGBT) with Ultrafast Soft Recovery Diode in TO-274AA package |
| Pages / Page | 12 / 10 — Fig.C.T.1. Fig.C.T.2. Fig.C.T.3. Fig.C.T.4. Fig.C.T.5 |
| File Format / Size | PDF / 142 Kb |
| Document Language | English |
Fig.C.T.1. Fig.C.T.2. Fig.C.T.3. Fig.C.T.4. Fig.C.T.5
Model Line for this Datasheet
Text Version of Document

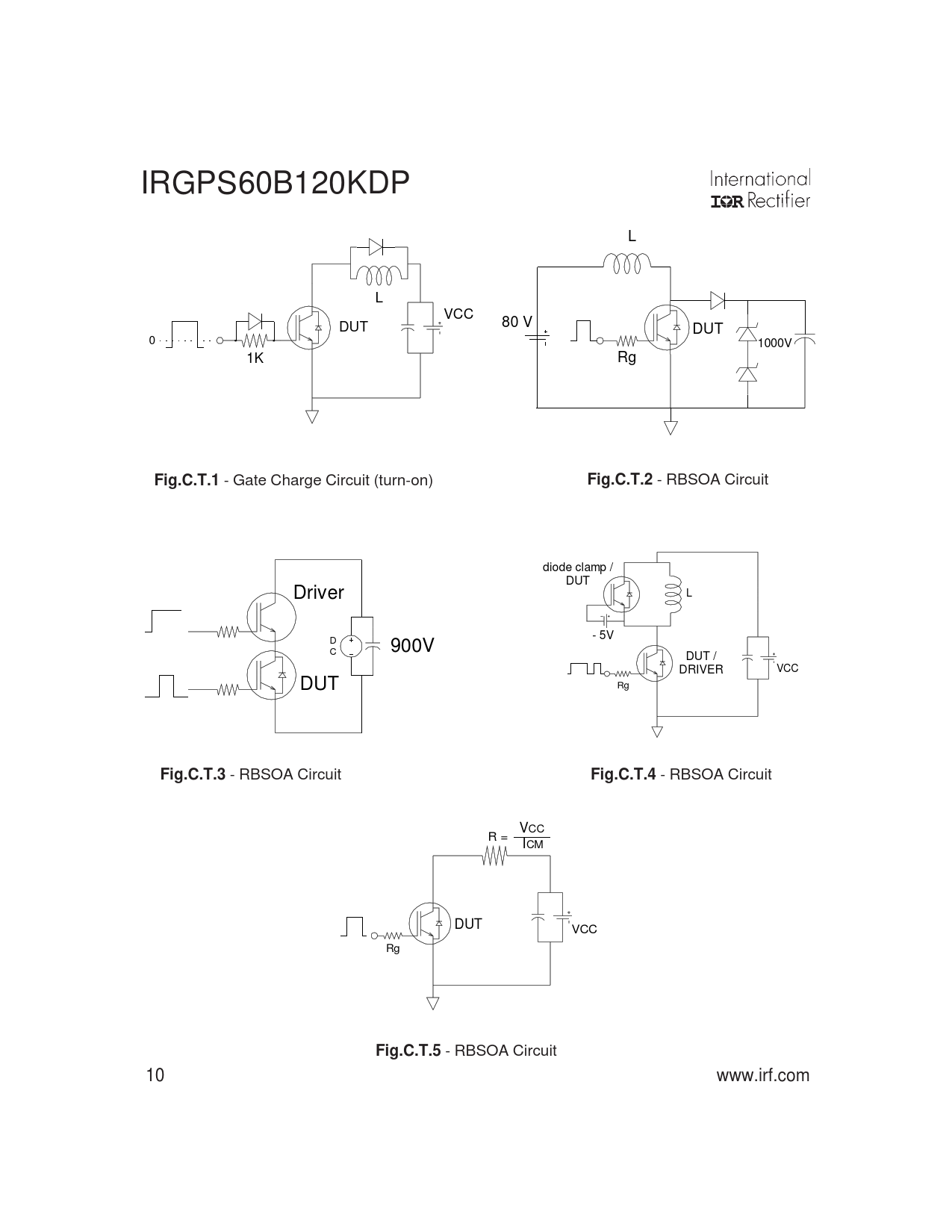

IRGPS60B120KDP L L VCC 80 V DUT DUT 0 1000V 1K Rg
Fig.C.T.1
- Gate Charge Circuit (turn-on)
Fig.C.T.2
- RBSOA Circuit diode clamp / DUT Driver L - 5V D 900V C DUT / VCC DRIVER DUT Rg
Fig.C.T.3
- RBSOA Circuit
Fig.C.T.4
- RBSOA Circuit VCC R = ICM DUT VCC Rg
Fig.C.T.5
- RBSOA Circuit 10 www.irf.com
Fig.C.T.1
- Gate Charge Circuit (turn-on)
Fig.C.T.2
- RBSOA Circuit diode clamp / DUT Driver L - 5V D 900V C DUT / VCC DRIVER DUT Rg
Fig.C.T.3
- RBSOA Circuit
Fig.C.T.4
- RBSOA Circuit VCC R = ICM DUT VCC Rg
Fig.C.T.5
- RBSOA Circuit 10 www.irf.com
