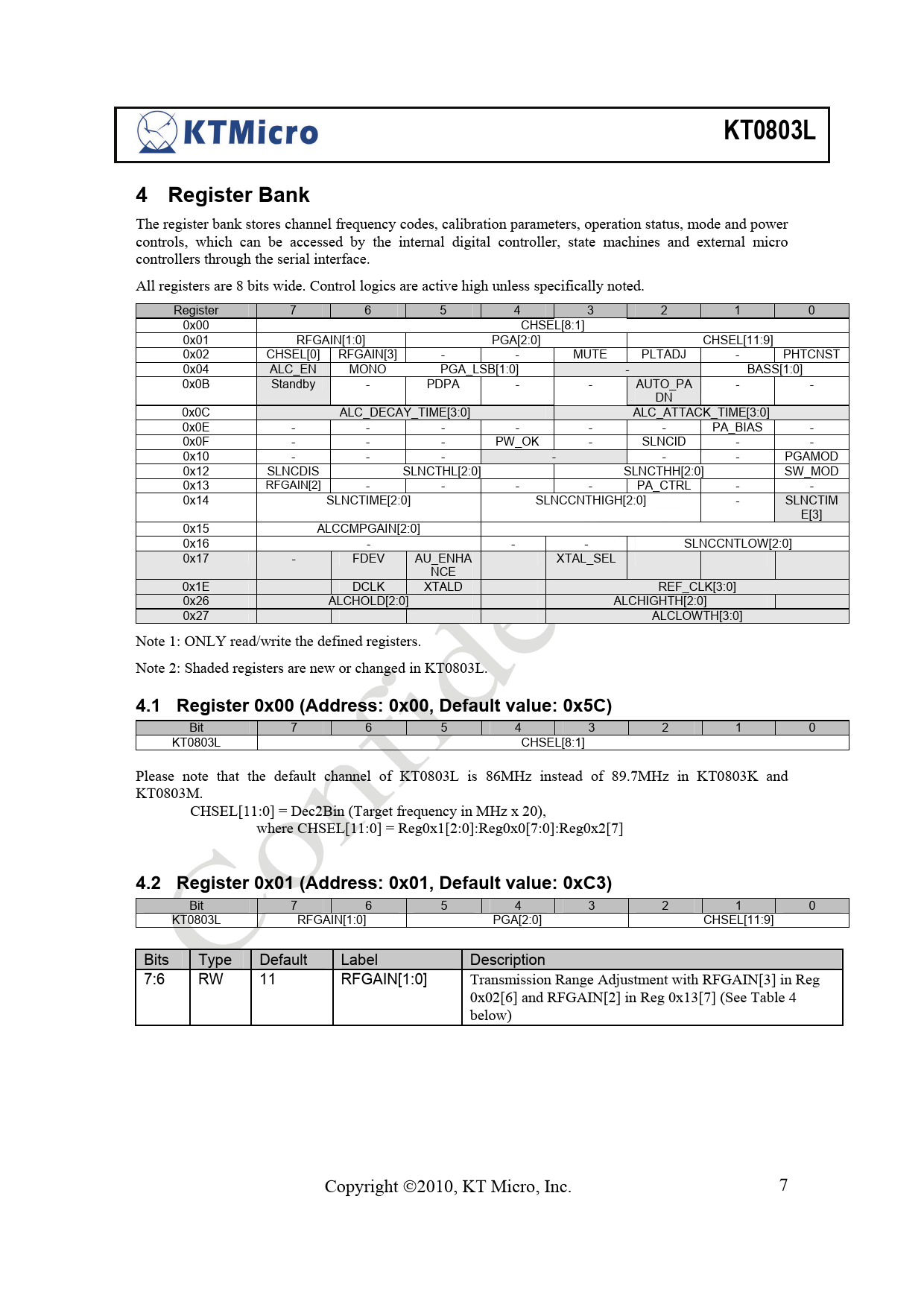

KT0803L. 4 Register. Bank. 4.1 Register 0x00 (Address: 0x00, Default value: 0x5C)
Model Line for this Datasheet
Text Version of Document
KT0803L 4 Register Bank
The register bank stores channel frequency codes, calibration parameters, operation status, mode and power controls, which can be accessed by the internal digital controller, state machines and external micro controllers through the serial interface. All registers are 8 bits wide. Control logics are active high unless specifically noted. Register 7 6 5 4 3 2 1 0 0x00 CHSEL[8:1] 0x01 RFGAIN[1:0] PGA[2:0] CHSEL[11:9] 0x02 CHSEL[0] RFGAIN[3] - - MUTE PLTADJ - PHTCNST 0x04 ALC_EN MONO PGA_LSB[1:0] - BASS[1:0] 0x0B Standby - PDPA - - AUTO_PA - - DN 0x0C ALC_DECAY_TIME[3:0] ALC_ATTACK_TIME[3:0] 0x0E - - - - - - PA_BIAS - 0x0F - - - PW_OK - SLNCID - - 0x10 - - - - - - PGAMOD 0x12 SLNCDIS SLNCTHL[2:0] SLNCTHH[2:0] SW_MOD 0x13 RFGAIN[2] - - - - PA_CTRL - - 0x14 SLNCTIME[2:0] SLNCCNTHIGH[2:0] - SLNCTIM E[3] 0x15 ALCCMPGAIN[2:0] 0x16 - - - SLNCCNTLOW[2:0] 0x17 - FDEV AU_ENHA XTAL_SEL NCE 0x1E DCLK XTALD REF_CLK[3:0] 0x26 ALCHOLD[2:0] ALCHIGHTH[2:0] 0x27 ALCLOWTH[3:0] Note 1: ONLY read/write the defined registers. Note 2: Shaded registers are new or changed in KT0803L.
4.1 Register 0x00 (Address: 0x00, Default value: 0x5C)
Bit 7 6 5 4 3 2 1 0 KT0803L CHSEL[8:1] Please note that the default channel of KT0803L is 86MHz instead of 89.7MHz in KT0803K and KT0803M. CHSEL[11:0] = Dec2Bin (Target frequency in MHz x 20), where CHSEL[11:0] = Reg0x1[2:0]:Reg0x0[7:0]:Reg0x2[7]
4.2 Register 0x01 (Address: 0x01, Default value: 0xC3)
Bit 7 6 5 4 3 2 1 0 KT0803L RFGAIN[1:0] PGA[2:0] CHSEL[11:9] Bits Type Default Label Description 7:6 RW 11 RFGAIN[1:0] Transmission Range Adjustment with RFGAIN[3] in Reg 0x02[6] and RFGAIN[2] in Reg 0x13[7] (See Table 4 below) Copyright ©2010, KT Micro, Inc. 7
The register bank stores channel frequency codes, calibration parameters, operation status, mode and power controls, which can be accessed by the internal digital controller, state machines and external micro controllers through the serial interface. All registers are 8 bits wide. Control logics are active high unless specifically noted. Register 7 6 5 4 3 2 1 0 0x00 CHSEL[8:1] 0x01 RFGAIN[1:0] PGA[2:0] CHSEL[11:9] 0x02 CHSEL[0] RFGAIN[3] - - MUTE PLTADJ - PHTCNST 0x04 ALC_EN MONO PGA_LSB[1:0] - BASS[1:0] 0x0B Standby - PDPA - - AUTO_PA - - DN 0x0C ALC_DECAY_TIME[3:0] ALC_ATTACK_TIME[3:0] 0x0E - - - - - - PA_BIAS - 0x0F - - - PW_OK - SLNCID - - 0x10 - - - - - - PGAMOD 0x12 SLNCDIS SLNCTHL[2:0] SLNCTHH[2:0] SW_MOD 0x13 RFGAIN[2] - - - - PA_CTRL - - 0x14 SLNCTIME[2:0] SLNCCNTHIGH[2:0] - SLNCTIM E[3] 0x15 ALCCMPGAIN[2:0] 0x16 - - - SLNCCNTLOW[2:0] 0x17 - FDEV AU_ENHA XTAL_SEL NCE 0x1E DCLK XTALD REF_CLK[3:0] 0x26 ALCHOLD[2:0] ALCHIGHTH[2:0] 0x27 ALCLOWTH[3:0] Note 1: ONLY read/write the defined registers. Note 2: Shaded registers are new or changed in KT0803L.
4.1 Register 0x00 (Address: 0x00, Default value: 0x5C)
Bit 7 6 5 4 3 2 1 0 KT0803L CHSEL[8:1] Please note that the default channel of KT0803L is 86MHz instead of 89.7MHz in KT0803K and KT0803M. CHSEL[11:0] = Dec2Bin (Target frequency in MHz x 20), where CHSEL[11:0] = Reg0x1[2:0]:Reg0x0[7:0]:Reg0x2[7]
4.2 Register 0x01 (Address: 0x01, Default value: 0xC3)
Bit 7 6 5 4 3 2 1 0 KT0803L RFGAIN[1:0] PGA[2:0] CHSEL[11:9] Bits Type Default Label Description 7:6 RW 11 RFGAIN[1:0] Transmission Range Adjustment with RFGAIN[3] in Reg 0x02[6] and RFGAIN[2] in Reg 0x13[7] (See Table 4 below) Copyright ©2010, KT Micro, Inc. 7
