Datasheet KT0803K (KT Micro) - 8
| Manufacturer | KT Micro |
| Description | Monolithic Digital Stereo FM Transmitter Radio-Station-on-a-Chip |
| Pages / Page | 18 / 8 — KT0803K. Table 4: Transmission power setting. 1111 (default setting). 108 … |
| File Format / Size | PDF / 974 Kb |
| Document Language | English |

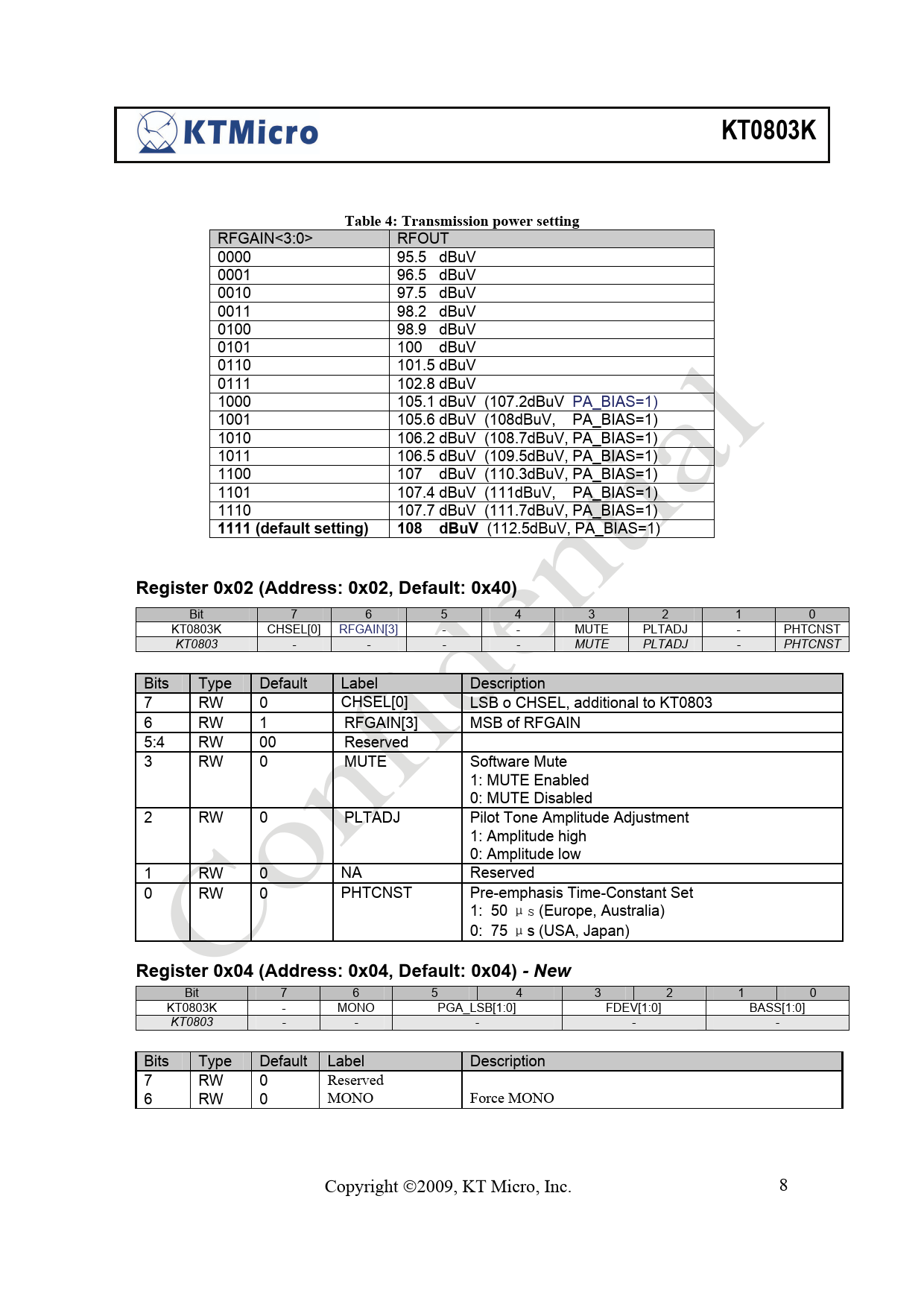

KT0803K. Table 4: Transmission power setting. 1111 (default setting). 108 dBuV. Register 0x02 (Address: 0x02, Default: 0x40)
Model Line for this Datasheet
Text Version of Document
KT0803K Table 4: Transmission power setting
RFGAIN<3:0> RFOUT 0000 95.5 dBuV 0001 96.5 dBuV 0010 97.5 dBuV 0011 98.2 dBuV 0100 98.9 dBuV 0101 100 dBuV 0110 101.5 dBuV 0111 102.8 dBuV 1000 105.1 dBuV (107.2dBuV PA_BIAS=1) 1001 105.6 dBuV (108dBuV, PA_BIAS=1) 1010 106.2 dBuV (108.7dBuV, PA_BIAS=1) 1011 106.5 dBuV (109.5dBuV, PA_BIAS=1) 1100 107 dBuV (110.3dBuV, PA_BIAS=1) 1101 107.4 dBuV (111dBuV, PA_BIAS=1) 1110 107.7 dBuV (111.7dBuV, PA_BIAS=1)
1111 (default setting) 108 dBuV
(112.5dBuV, PA_BIAS=1)
Register 0x02 (Address: 0x02, Default: 0x40)
Bit 7 6 5 4 3 2 1 0 KT0803K CHSEL[0] RFGAIN[3] - - MUTE PLTADJ - PHTCNST KT0803 - - - - MUTE PLTADJ - PHTCNST Bits Type Default Label Description 7 RW 0 CHSEL[0] LSB o CHSEL, additional to KT0803 6 RW 1 RFGAIN[3] MSB of RFGAIN 5:4 RW 00 Reserved 3 RW 0 MUTE Software Mute 1: MUTE Enabled 0: MUTE Disabled 2 RW 0 PLTADJ Pilot Tone Amplitude Adjustment 1: Amplitude high 0: Amplitude low 1 RW 0 NA Reserved 0 RW 0 PHTCNST Pre-emphasis Time-Constant Set 1: 50 μs (Europe, Australia) 0: 75 μs (USA, Japan)
Register 0x04 (Address: 0x04, Default: 0x04) - New
Bit 7 6 5 4 3 2 1 0 KT0803K - MONO PGA_LSB[1:0] FDEV[1:0] BASS[1:0] KT0803 - - - - - Bits Type Default Label Description 7 RW 0 Reserved 6 RW 0 MONO Force MONO Copyright ©2009, KT Micro, Inc. 8
RFGAIN<3:0> RFOUT 0000 95.5 dBuV 0001 96.5 dBuV 0010 97.5 dBuV 0011 98.2 dBuV 0100 98.9 dBuV 0101 100 dBuV 0110 101.5 dBuV 0111 102.8 dBuV 1000 105.1 dBuV (107.2dBuV PA_BIAS=1) 1001 105.6 dBuV (108dBuV, PA_BIAS=1) 1010 106.2 dBuV (108.7dBuV, PA_BIAS=1) 1011 106.5 dBuV (109.5dBuV, PA_BIAS=1) 1100 107 dBuV (110.3dBuV, PA_BIAS=1) 1101 107.4 dBuV (111dBuV, PA_BIAS=1) 1110 107.7 dBuV (111.7dBuV, PA_BIAS=1)
1111 (default setting) 108 dBuV
(112.5dBuV, PA_BIAS=1)
Register 0x02 (Address: 0x02, Default: 0x40)
Bit 7 6 5 4 3 2 1 0 KT0803K CHSEL[0] RFGAIN[3] - - MUTE PLTADJ - PHTCNST KT0803 - - - - MUTE PLTADJ - PHTCNST Bits Type Default Label Description 7 RW 0 CHSEL[0] LSB o CHSEL, additional to KT0803 6 RW 1 RFGAIN[3] MSB of RFGAIN 5:4 RW 00 Reserved 3 RW 0 MUTE Software Mute 1: MUTE Enabled 0: MUTE Disabled 2 RW 0 PLTADJ Pilot Tone Amplitude Adjustment 1: Amplitude high 0: Amplitude low 1 RW 0 NA Reserved 0 RW 0 PHTCNST Pre-emphasis Time-Constant Set 1: 50 μs (Europe, Australia) 0: 75 μs (USA, Japan)
Register 0x04 (Address: 0x04, Default: 0x04) - New
Bit 7 6 5 4 3 2 1 0 KT0803K - MONO PGA_LSB[1:0] FDEV[1:0] BASS[1:0] KT0803 - - - - - Bits Type Default Label Description 7 RW 0 Reserved 6 RW 0 MONO Force MONO Copyright ©2009, KT Micro, Inc. 8
