Datasheet TCST1103 (Vishay) - 5
| Manufacturer | Vishay |
| Description | Transmissive Optical Sensor with Phototransistor Output |
| Pages / Page | 7 / 5 — TCST1103, TCST1202, TCST1300. PACKAGE DIMENSIONS |
| File Format / Size | PDF / 109 Kb |
| Document Language | English |
TCST1103, TCST1202, TCST1300. PACKAGE DIMENSIONS
Model Line for this Datasheet
Text Version of Document
TCST1103, TCST1202, TCST1300
www.vishay.com Vishay Semiconductors 110 110 0 0 100 A = 0.5 mm 100 A = 0.25 mm 90 90 80 80 70 s 70 s 60 60 50 50 40 40 30 30 - Relative Collector Current - Relative Collector Current 20 20 I Crel 10 I Crel 10 0 0 - 0.5 - 0.4 - 0.3 - 0.2 - 0.1 0 0.1 0.2 0.3 0.4 0.5 - 0.5 - 0.4 - 0.3 - 0.1 - 0.2 0 0.1 0.2 0.3 0.4 0.5 96 12006 s - Displacement (mm) 96 12007 s - Displacement (mm) Fig. 12 - Relative Collector Current vs. Displacement Fig. 13 - Relative Collector Current vs. Displacement

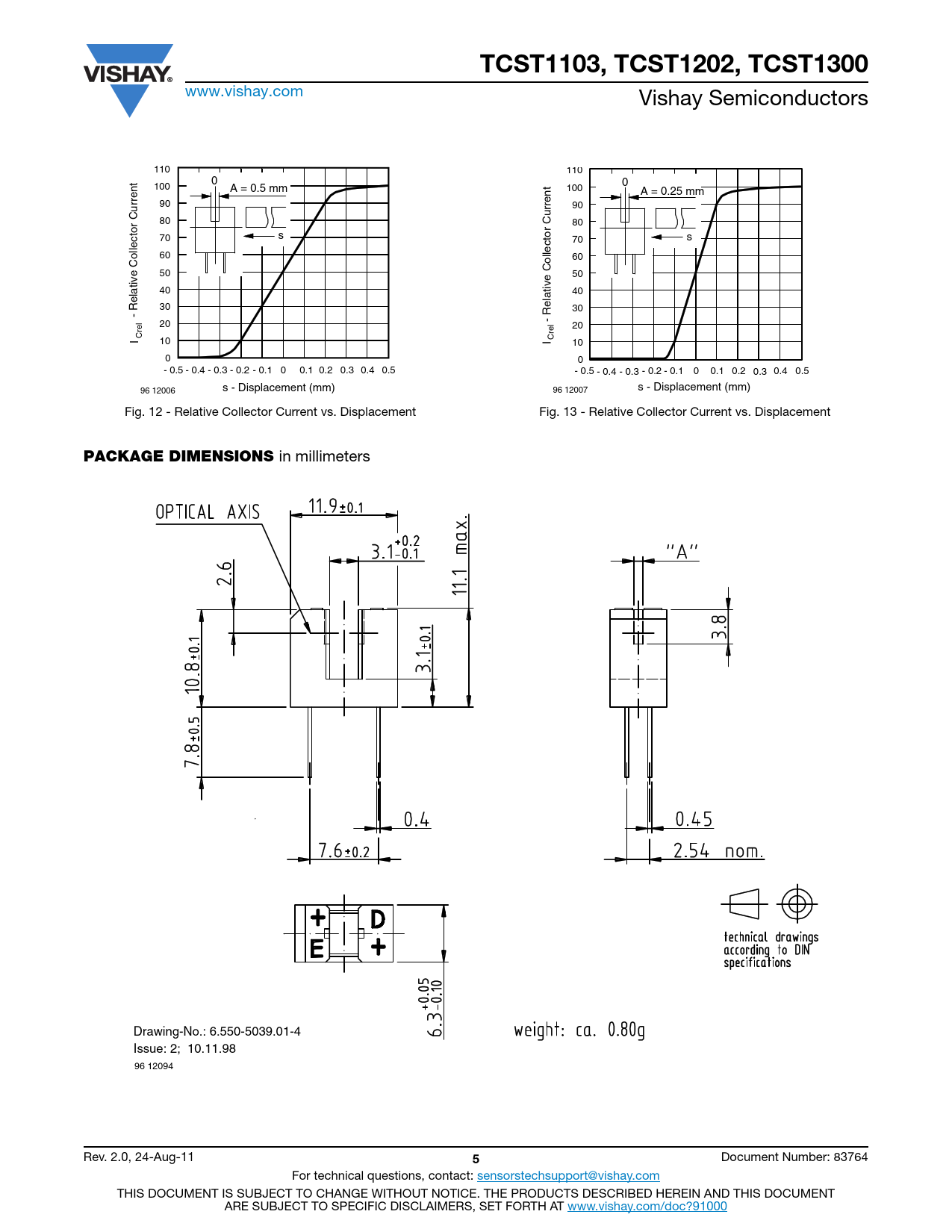

PACKAGE DIMENSIONS
in millimeters Drawing-No.: 6.550-5039.01-4 Issue: 2; 10.11.98 96 12094 Rev. 2.0, 24-Aug-11
