Datasheet ZTA (ECS Inc.)
| Manufacturer | ECS Inc. |
| Description | Ceramic resonator 6.51 MHz t/h |
| Pages / Page | 1 / 1 — ZTA Series Ceramic Resonator. Request a Sample. Obsolete/End of Life Date … |
| File Format / Size | PDF / 337 Kb |
| Document Language | English |

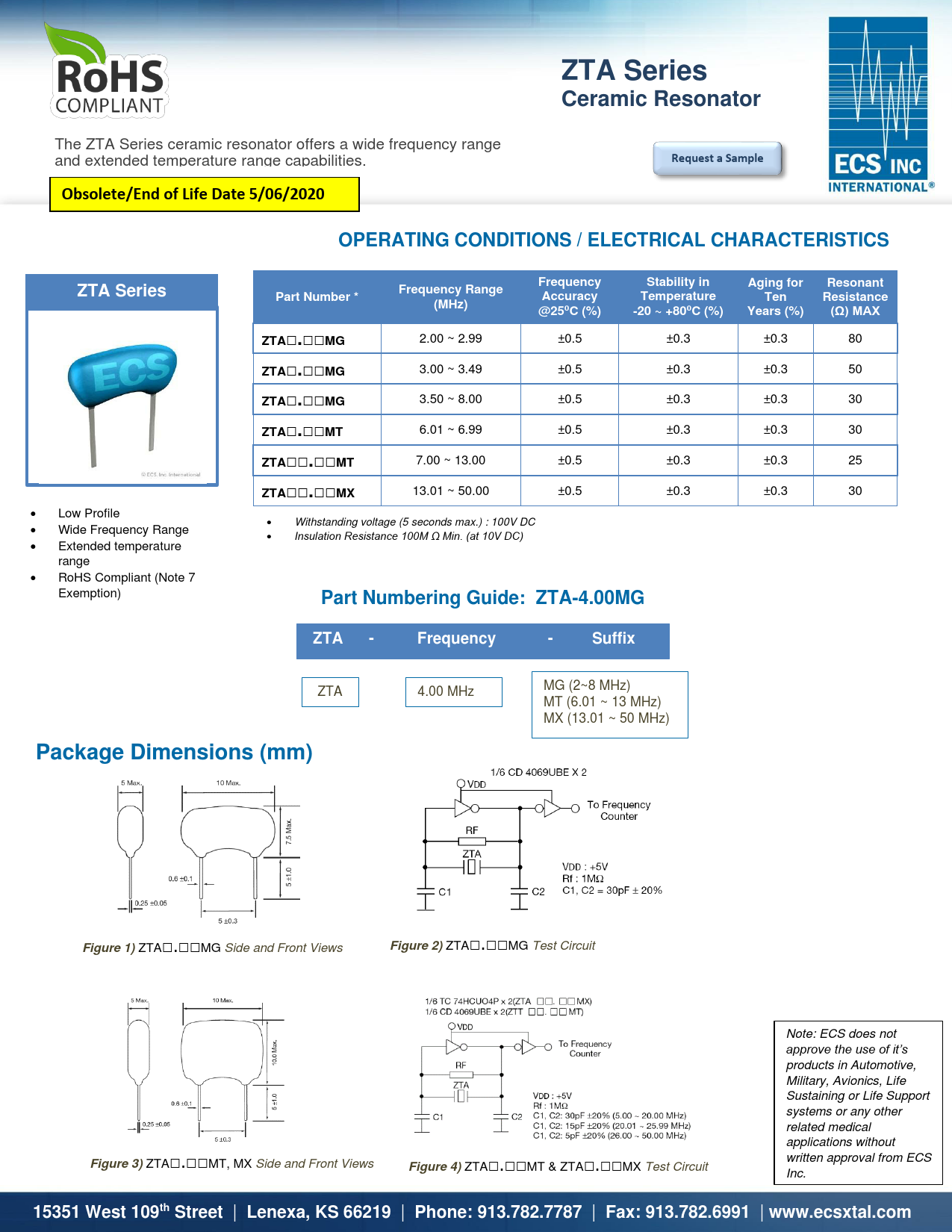

ZTA Series Ceramic Resonator. Request a Sample. Obsolete/End of Life Date 5/06/2020
Model Line for this Datasheet
Text Version of Document
ZTA Series Ceramic Resonator
The ZTA Series ceramic resonator offers a wide frequency range and extended temperature range capabilities.
Request a Sample Obsolete/End of Life Date 5/06/2020 OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS Frequency Stability in Aging for Resonant Frequency Range ZTA Series Part Number * Accuracy Temperature Ten Resistance (MHz) @25⁰C (%) -20 ~ +80⁰C (%) Years (%) (Ω) MAX ZTA□.□□MG
2.00 ~ 2.99 ±0.5 ±0.3 ±0.3 80
ZTA□.□□MG
3.00 ~ 3.49 ±0.5 ±0.3 ±0.3 50
ZTA□.□□MG
3.50 ~ 8.00 ±0.5 ±0.3 ±0.3 30
ZTA□.□□MT
6.01 ~ 6.99 ±0.5 ±0.3 ±0.3 30
ZTA□□.□□MT
7.00 ~ 13.00 ±0.5 ±0.3 ±0.3 25
ZTA□□.□□MX
13.01 ~ 50.00 ±0.5 ±0.3 ±0.3 30 • Low Prof ile • • Withstanding voltage (5 seconds max.) : 100V DC Wide Frequency Range • Insulation Resistance 100M Ω Min. (at 10V DC) • Extended temperature range • RoHS Compliant (Note 7 Exempt ion)
Part Numbering Guide: ZTA-4.00MG ZTA - Frequency - Suffix
MG (2~8 MHz) ZTA 4.00 MHz MT (6.01 ~ 13 MHz) MX (13.01 ~ 50 MHz)
Package Dimensions (mm) Figure 1)
ZTA□.□□MG Side and Front Views
Figure 2)
ZTA□.□□MG Test Circuit Note: ECS does not approve the use of it’s products in Automotive, Military, Avionics, Life Sustaining or Life Support systems or any other related medical applications without written approval from ECS
Figure 3)
ZTA□.□□MT, MX Side and Front Views
Figure 4)
ZTA□.□□MT & ZTA□.□□MX Test Circuit Inc.
