MAX16126/MAX16127
Load-Dump/Reverse-Voltage Protection Circuits
Pin Configuration

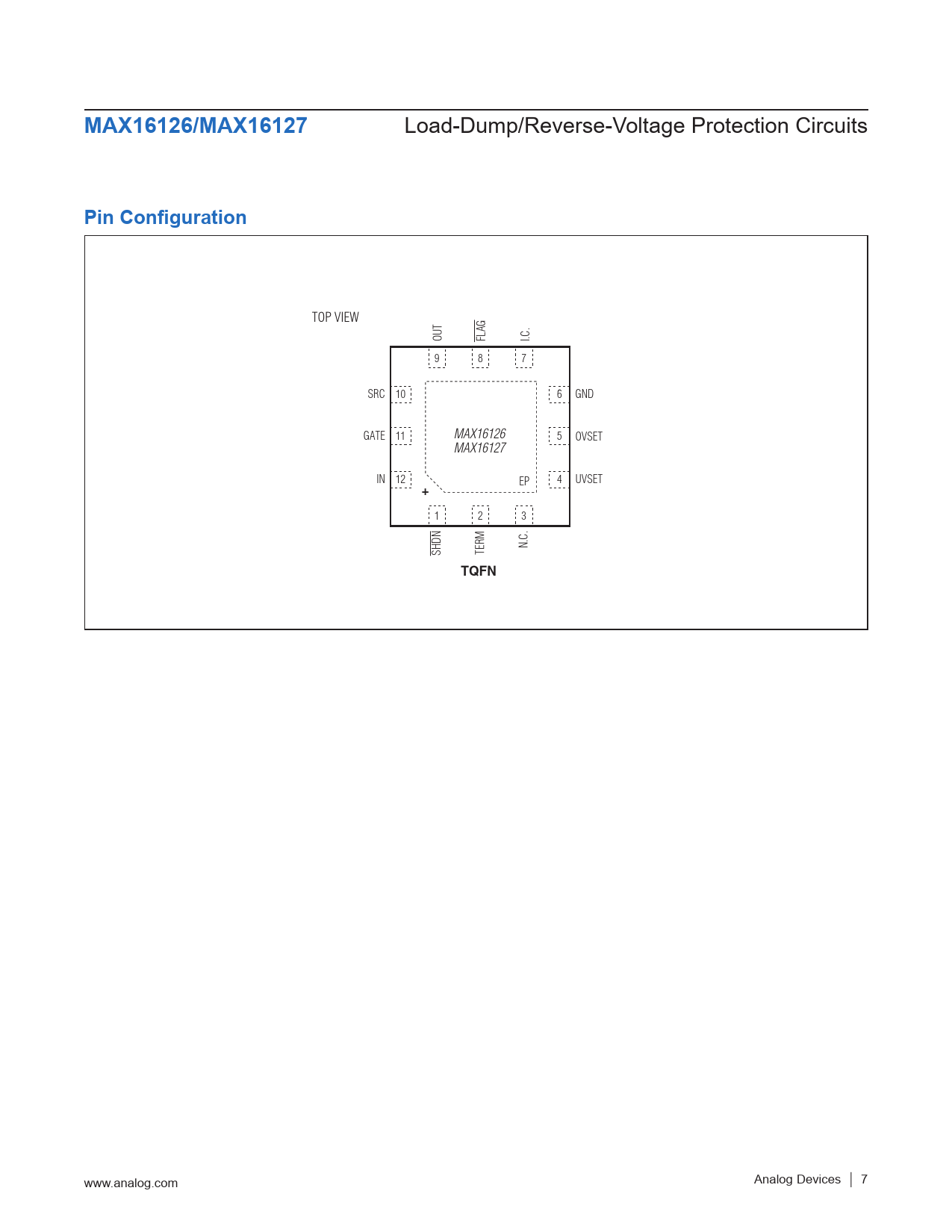

TOP VIEW OUT FLAG I.C. 9 8 7 SRC 10 6 GND GATE 11 MAX16126 5 OVSET MAX16127 IN 12 EP 4 UVSET + 1 2 3 SHDN TERM N.C.
TQFN
