Typical Performance Characteristics–MAT04
Model Line for this Datasheet
Text Version of Document
Typical Performance Characteristics–MAT04

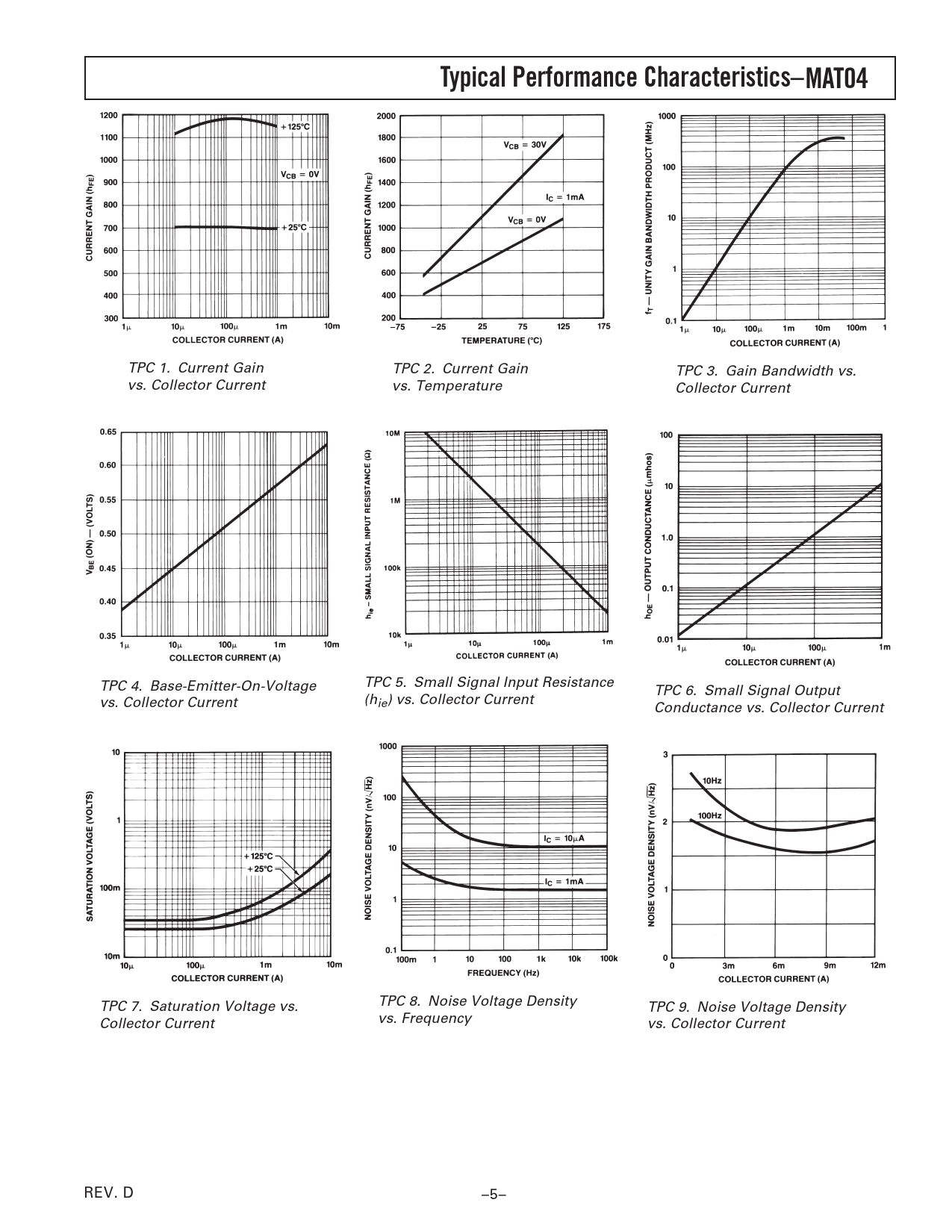

TPC 1. Current Gain TPC 2. Current Gain TPC 3. Gain Bandwidth vs. vs. Collector Current vs. Temperature Collector Current TPC 4. Base-Emitter-On-Voltage TPC 5. Small Signal Input Resistance TPC 6. Small Signal Output vs. Collector Current (hie) vs. Collector Current Conductance vs. Collector Current TPC 7. Saturation Voltage vs. TPC 8. Noise Voltage Density TPC 9. Noise Voltage Density Collector Current vs. Frequency vs. Collector Current REV. D –5–
TPC 1. Current Gain TPC 2. Current Gain TPC 3. Gain Bandwidth vs. vs. Collector Current vs. Temperature Collector Current TPC 4. Base-Emitter-On-Voltage TPC 5. Small Signal Input Resistance TPC 6. Small Signal Output vs. Collector Current (hie) vs. Collector Current Conductance vs. Collector Current TPC 7. Saturation Voltage vs. TPC 8. Noise Voltage Density TPC 9. Noise Voltage Density Collector Current vs. Frequency vs. Collector Current REV. D –5–
