Datasheet CBCP68, CBCP69 (Central Semiconductor) - 2
| Manufacturer | Central Semiconductor |
| Description | 20V, 1A, 2W Surface mount Transistor-Small Signal (<=1A) PNP High Current in SOT-223 package |
| Pages / Page | 6 / 2 — CBCP68 NPN. CBCP69 PNP. SURFACE MOUNT SILICON. COMPLEMENTARY. SMALL … |
| File Format / Size | PDF / 404 Kb |
| Document Language | English |

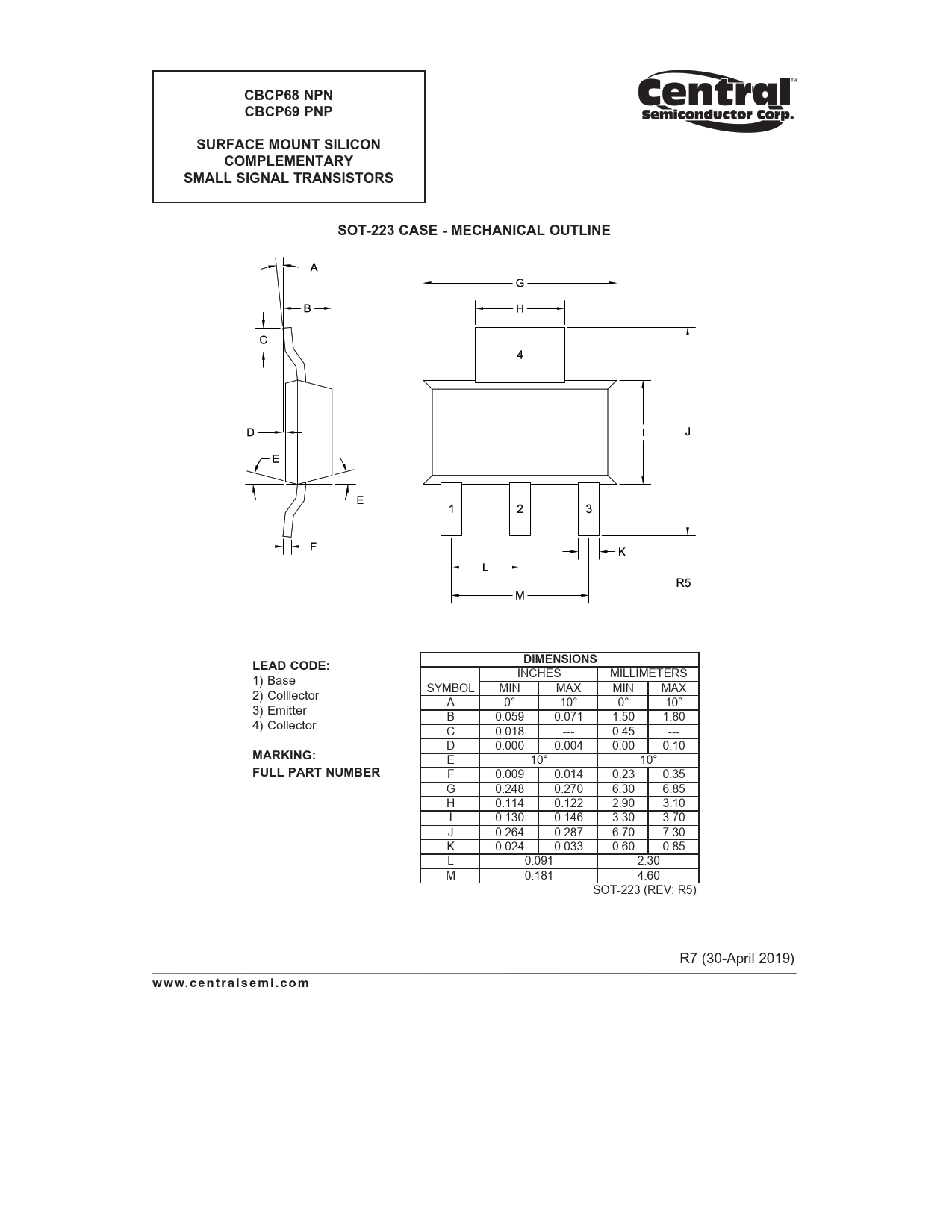

CBCP68 NPN. CBCP69 PNP. SURFACE MOUNT SILICON. COMPLEMENTARY. SMALL SIGNAL TRANSISTORS. SOT-223 CASE - MECHANICAL OUTLINE
Model Line for this Datasheet
Text Version of Document
CBCP68 NPN CBCP69 PNP SURFACE MOUNT SILICON COMPLEMENTARY SMALL SIGNAL TRANSISTORS SOT-223 CASE - MECHANICAL OUTLINE LEAD CODE: DIMENSIONS
INCHES MILLIMETERS 1) Base SYMBOL MIN MAX MIN MAX 2) Colllector A 0° 10° 0° 10° 3) Emitter B 0.059 0.071 1.50 1.80 4) Collector C 0.018 --- 0.45 --- D 0.000 0.004 0.00 0.10
MARKING:
E 10° 10°
FULL PART NUMBER
F 0.009 0.014 0.23 0.35 G 0.248 0.270 6.30 6.85 H 0.114 0.122 2.90 3.10 I 0.130 0.146 3.30 3.70 J 0.264 0.287 6.70 7.30 K 0.024 0.033 0.60 0.85 L 0.091 2.30 M 0.181 4.60 SOT-223 (REV: R5) R7 (30-April 2019)
www.centralsemi.com
INCHES MILLIMETERS 1) Base SYMBOL MIN MAX MIN MAX 2) Colllector A 0° 10° 0° 10° 3) Emitter B 0.059 0.071 1.50 1.80 4) Collector C 0.018 --- 0.45 --- D 0.000 0.004 0.00 0.10
MARKING:
E 10° 10°
FULL PART NUMBER
F 0.009 0.014 0.23 0.35 G 0.248 0.270 6.30 6.85 H 0.114 0.122 2.90 3.10 I 0.130 0.146 3.30 3.70 J 0.264 0.287 6.70 7.30 K 0.024 0.033 0.60 0.85 L 0.091 2.30 M 0.181 4.60 SOT-223 (REV: R5) R7 (30-April 2019)
www.centralsemi.com
