| Description | TinyLogic UHS Inverter with Schmitt Trigger Input |
| Pages / Page | 11 / 3 — NC7SZ14. RECOMMENDED OPERATING CONDITIONS. Symbol. Parameter. Conditions. … |
| File Format / Size | PDF / 552 Kb |
| Document Language | English |

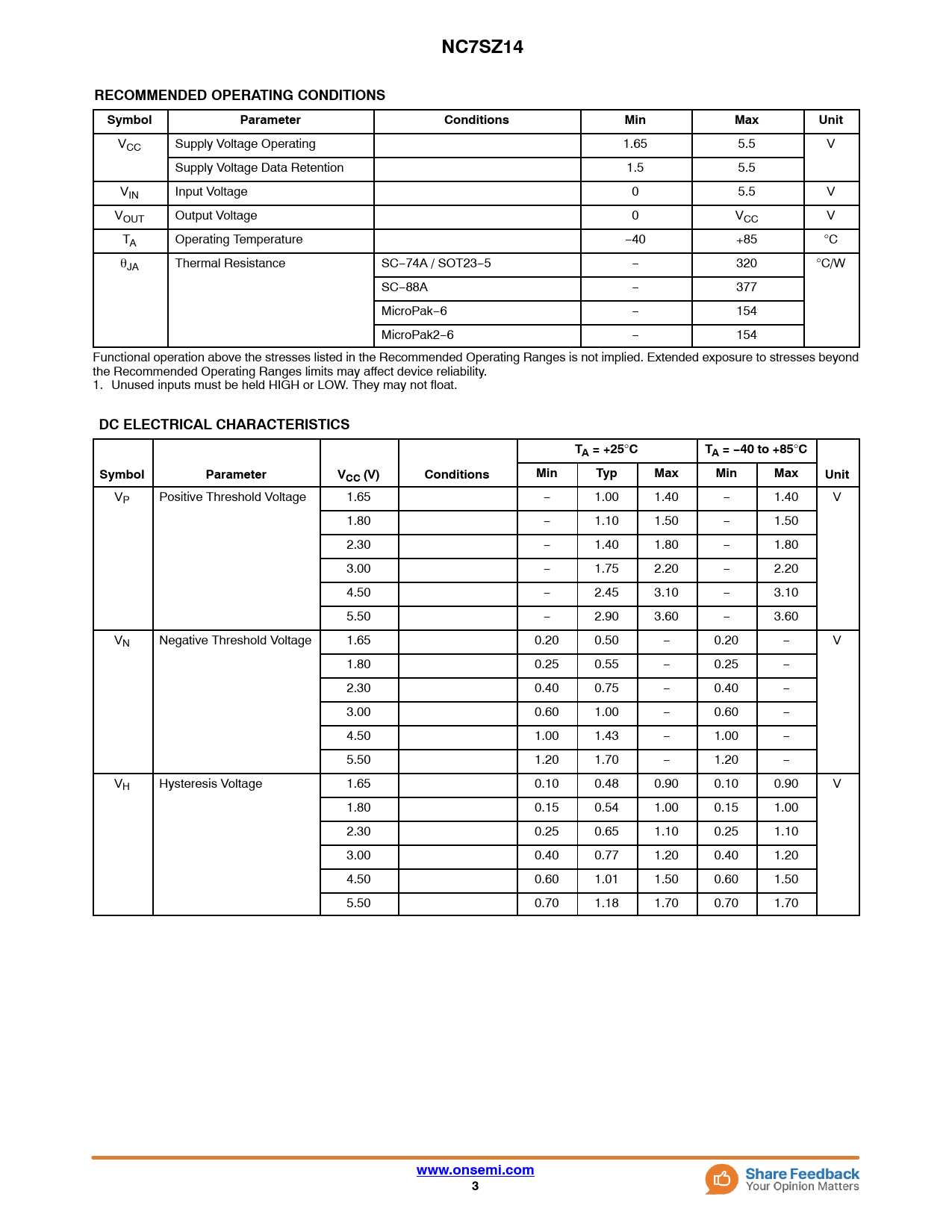

NC7SZ14. RECOMMENDED OPERATING CONDITIONS. Symbol. Parameter. Conditions. Min. Max. Unit. DC ELECTRICAL CHARACTERISTICS. TA = +25
Model Line for this Datasheet
Text Version of Document
NC7SZ14 RECOMMENDED OPERATING CONDITIONS Symbol Parameter Conditions Min Max Unit
VCC Supply Voltage Operating 1.65 5.5 V Supply Voltage Data Retention 1.5 5.5 VIN Input Voltage 0 5.5 V VOUT Output Voltage 0 VCC V TA Operating Temperature −40 +85 °C qJA Thermal Resistance SC−74A / SOT23−5 − 320 °C/W SC−88A − 377 MicroPak−6 − 154 MicroPak2−6 − 154 Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended Operating Ranges limits may affect device reliability. 1. Unused inputs must be held HIGH or LOW. They may not float.
DC ELECTRICAL CHARACTERISTICS TA = +25
°
C TA = −40 to +85
°
C Symbol Parameter VCC (V) Conditions Min Typ Max Min Max Unit
VP Positive Threshold Voltage 1.65 − 1.00 1.40 − 1.40 V 1.80 − 1.10 1.50 − 1.50 2.30 − 1.40 1.80 − 1.80 3.00 − 1.75 2.20 − 2.20 4.50 − 2.45 3.10 − 3.10 5.50 − 2.90 3.60 − 3.60 VN Negative Threshold Voltage 1.65 0.20 0.50 − 0.20 − V 1.80 0.25 0.55 − 0.25 − 2.30 0.40 0.75 − 0.40 − 3.00 0.60 1.00 − 0.60 − 4.50 1.00 1.43 − 1.00 − 5.50 1.20 1.70 − 1.20 − VH Hysteresis Voltage 1.65 0.10 0.48 0.90 0.10 0.90 V 1.80 0.15 0.54 1.00 0.15 1.00 2.30 0.25 0.65 1.10 0.25 1.10 3.00 0.40 0.77 1.20 0.40 1.20 4.50 0.60 1.01 1.50 0.60 1.50 5.50 0.70 1.18 1.70 0.70 1.70
www.onsemi.com 3
VCC Supply Voltage Operating 1.65 5.5 V Supply Voltage Data Retention 1.5 5.5 VIN Input Voltage 0 5.5 V VOUT Output Voltage 0 VCC V TA Operating Temperature −40 +85 °C qJA Thermal Resistance SC−74A / SOT23−5 − 320 °C/W SC−88A − 377 MicroPak−6 − 154 MicroPak2−6 − 154 Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended Operating Ranges limits may affect device reliability. 1. Unused inputs must be held HIGH or LOW. They may not float.
DC ELECTRICAL CHARACTERISTICS TA = +25
°
C TA = −40 to +85
°
C Symbol Parameter VCC (V) Conditions Min Typ Max Min Max Unit
VP Positive Threshold Voltage 1.65 − 1.00 1.40 − 1.40 V 1.80 − 1.10 1.50 − 1.50 2.30 − 1.40 1.80 − 1.80 3.00 − 1.75 2.20 − 2.20 4.50 − 2.45 3.10 − 3.10 5.50 − 2.90 3.60 − 3.60 VN Negative Threshold Voltage 1.65 0.20 0.50 − 0.20 − V 1.80 0.25 0.55 − 0.25 − 2.30 0.40 0.75 − 0.40 − 3.00 0.60 1.00 − 0.60 − 4.50 1.00 1.43 − 1.00 − 5.50 1.20 1.70 − 1.20 − VH Hysteresis Voltage 1.65 0.10 0.48 0.90 0.10 0.90 V 1.80 0.15 0.54 1.00 0.15 1.00 2.30 0.25 0.65 1.10 0.25 1.10 3.00 0.40 0.77 1.20 0.40 1.20 4.50 0.60 1.01 1.50 0.60 1.50 5.50 0.70 1.18 1.70 0.70 1.70
www.onsemi.com 3
