Datasheet NC7SZ14 (ON Semiconductor) - 5
| Manufacturer | ON Semiconductor |
| Description | TinyLogic UHS Inverter with Schmitt Trigger Input |
| Pages / Page | 11 / 5 — NC7SZ14. Figure 4. AC Test Circuit. Figure 5. AC Waveforms. Figure 6. … |
| File Format / Size | PDF / 552 Kb |
| Document Language | English |
NC7SZ14. Figure 4. AC Test Circuit. Figure 5. AC Waveforms. Figure 6. ICCD Test Circuit. ORDERING INFORMATION. Part Number
Model Line for this Datasheet
Text Version of Document
link to page 5

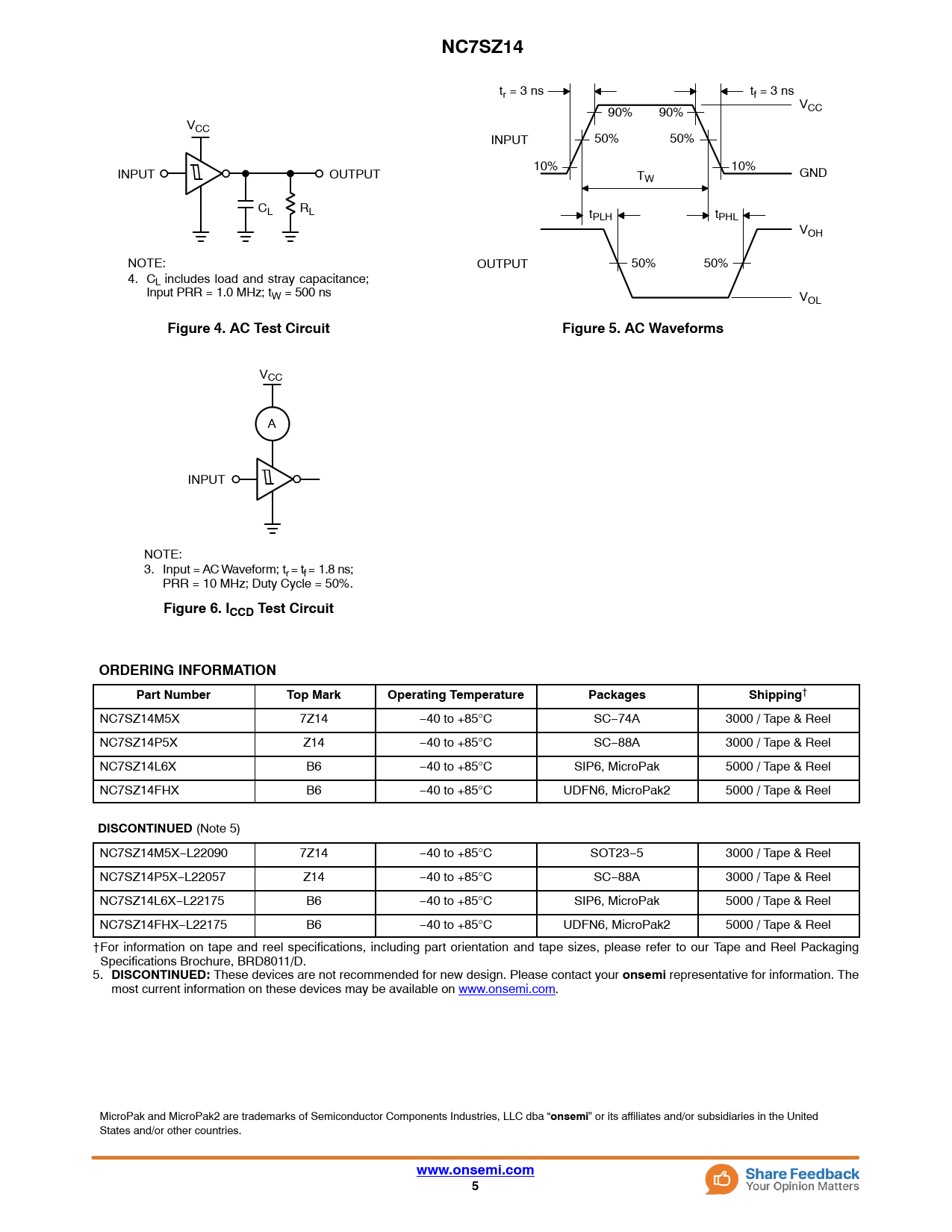

NC7SZ14
tr = 3 ns tf = 3 ns V 90% 90% CC VCC INPUT 50% 50% 10% 10% INPUT OUTPUT GND TW CL RL tPLH tPHL VOH NOTE: OUTPUT 50% 50% 4. CL includes load and stray capacitance; Input PRR = 1.0 MHz; tW = 500 ns VOL
Figure 4. AC Test Circuit Figure 5. AC Waveforms
VCC A INPUT NOTE: 3. Input = AC Waveform; tr = tf = 1.8 ns; PRR = 10 MHz; Duty Cycle = 50%.
Figure 6. ICCD Test Circuit ORDERING INFORMATION Part Number Top Mark Operating Temperature Packages Shipping
† NC7SZ14M5X 7Z14 −40 to +85°C SC−74A 3000 / Tape & Reel NC7SZ14P5X Z14 −40 to +85°C SC−88A 3000 / Tape & Reel NC7SZ14L6X B6 −40 to +85°C SIP6, MicroPak 5000 / Tape & Reel NC7SZ14FHX B6 −40 to +85°C UDFN6, MicroPak2 5000 / Tape & Reel
DISCONTINUED
(Note 5) NC7SZ14M5X−L22090 7Z14 −40 to +85°C SOT23−5 3000 / Tape & Reel NC7SZ14P5X−L22057 Z14 −40 to +85°C SC−88A 3000 / Tape & Reel NC7SZ14L6X−L22175 B6 −40 to +85°C SIP6, MicroPak 5000 / Tape & Reel NC7SZ14FHX−L22175 B6 −40 to +85°C UDFN6, MicroPak2 5000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. 5.
DISCONTINUED:
These devices are not recommended for new design. Please contact your
onsemi
representative for information. The most current information on these devices may be available on www.onsemi.com. MicroPak and MicroPak2 are trademarks of Semiconductor Components Industries, LLC dba “
onsemi
” or its affiliates and/or subsidiaries in the United States and/or other countries.
www.onsemi.com 5
