Datasheet NC7SZ14 (ON Semiconductor) - 8
| Manufacturer | ON Semiconductor |
| Description | TinyLogic UHS Inverter with Schmitt Trigger Input |
| Pages / Page | 11 / 8 — PACKAGE DIMENSIONS. SC−88A (SC−70−5/SOT−353). SCALE 2:1. GENERIC MARKING. … |
| File Format / Size | PDF / 552 Kb |
| Document Language | English |
PACKAGE DIMENSIONS. SC−88A (SC−70−5/SOT−353). SCALE 2:1. GENERIC MARKING. DIAGRAM*. DOCUMENT NUMBER: 98ASB42984B. DESCRIPTION:
Model Line for this Datasheet
Text Version of Document

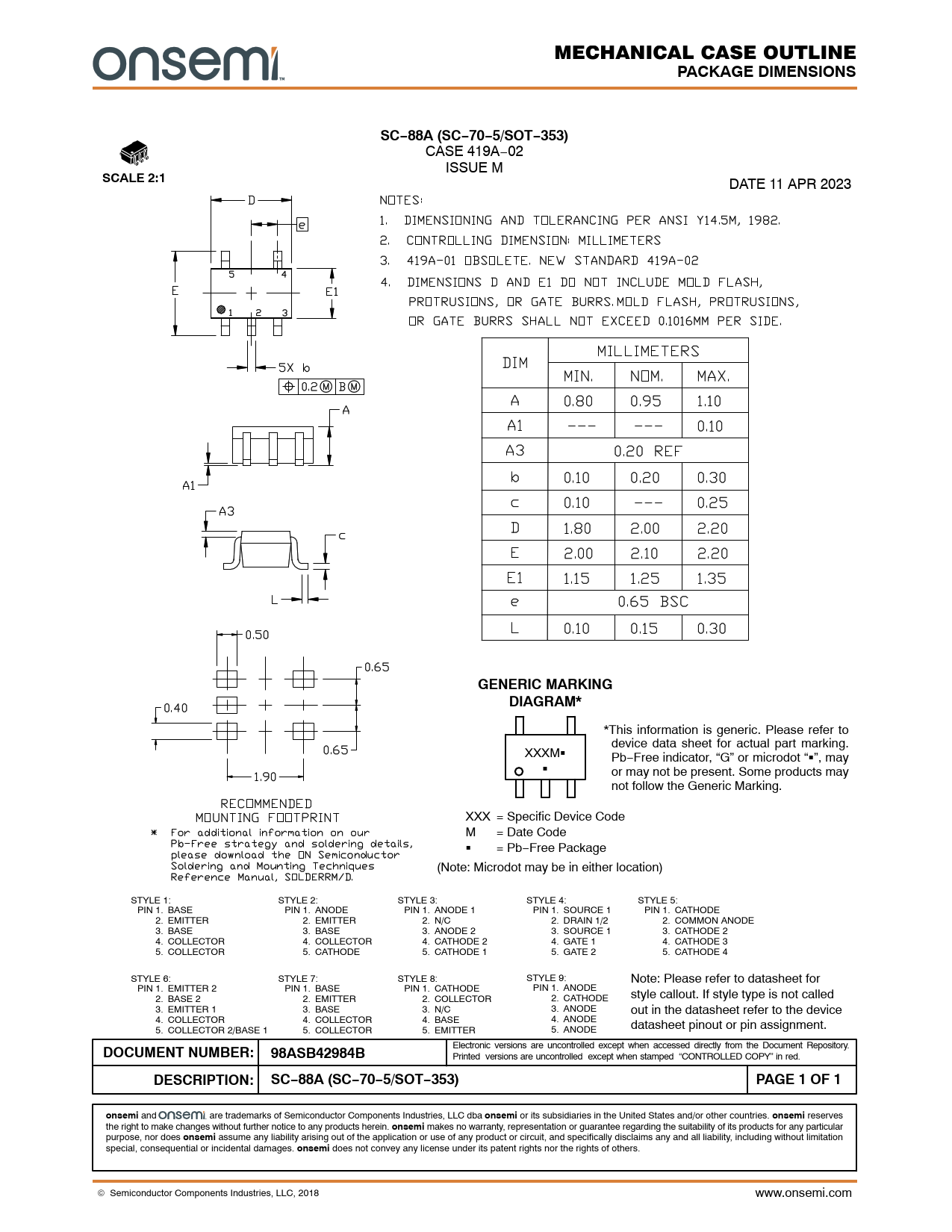

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS SC−88A (SC−70−5/SOT−353)
CASE 419A−02 ISSUE M
SCALE 2:1
DATE 11 APR 2023
GENERIC MARKING DIAGRAM*
*This information is generic. Please refer to device data sheet for actual part marking. XXXMG Pb−Free indicator, “G” or microdot “G”, may G or may not be present. Some products may not follow the Generic Marking. XXX = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) STYLE 1: STYLE 2: STYLE 3: STYLE 4: STYLE 5: PIN 1. BASE PIN 1. ANODE PIN 1. ANODE 1 PIN 1. SOURCE 1 PIN 1. CATHODE 2. EMITTER 2. EMITTER 2. N/C 2. DRAIN 1/2 2. COMMON ANODE 3. BASE 3. BASE 3. ANODE 2 3. SOURCE 1 3. CATHODE 2 4. COLLECTOR 4. COLLECTOR 4. CATHODE 2 4. GATE 1 4. CATHODE 3 5. COLLECTOR 5. CATHODE 5. CATHODE 1 5. GATE 2 5. CATHODE 4 STYLE 6: STYLE 7: STYLE 8: STYLE 9: Note: Please refer to datasheet for PIN 1. EMITTER 2 PIN 1. BASE PIN 1. CATHODE PIN 1. ANODE 2. BASE 2 2. EMITTER 2. COLLECTOR 2. CATHODE style callout. If style type is not called 3. EMITTER 1 3. BASE 3. N/C 3. ANODE out in the datasheet refer to the device 4. COLLECTOR 4. COLLECTOR 4. BASE 4. ANODE 5. COLLECTOR 2/BASE 1 5. COLLECTOR 5. EMITTER 5. ANODE datasheet pinout or pin assignment.
