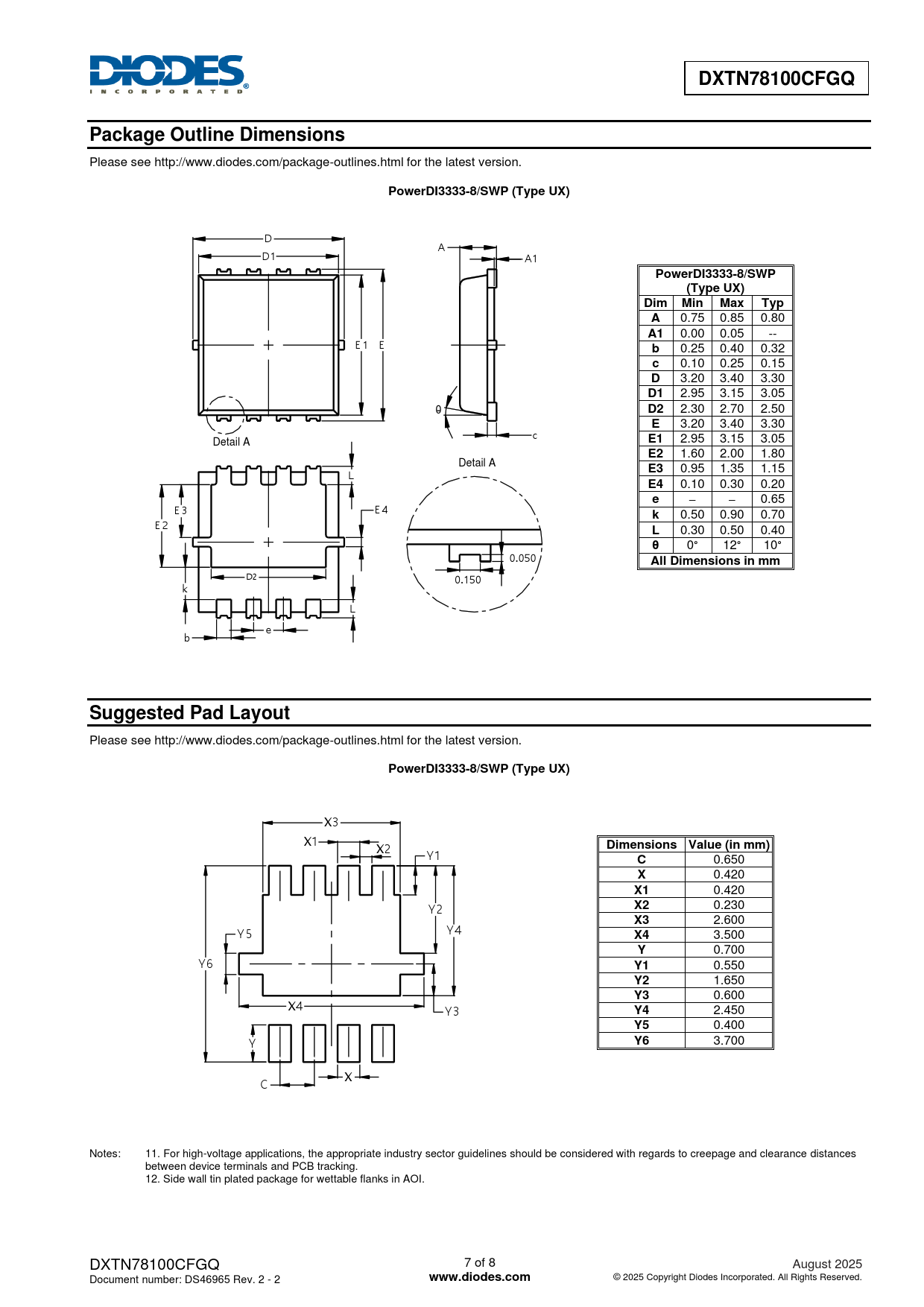

DXTN78100CFGQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI3333-8/SWP (Type UX)
D A D1 A1
PowerDI3333-8/SWP (Type UX) Dim Min Max Typ A
0.75 0.85 0.80
A1
0.00 0.05 -- E 1 E
b
0.25 0.40 0.32
c
0.10 0.25 0.15
D
3.20 3.40 3.30
D1
2.95 3.15 3.05 0
D2
2.30 2.70 2.50
E
3.20 3.40 3.30 c
E1
2.95 3.15 3.05 Detail A
E2
1.60 2.00 1.80 Detail A
E3
0.95 1.35 1.15 L
E4
0.10 0.30 0.20
e
− − 0.65 E 3 E 4
k
0.50 0.90 0.70 E 2
L
0.30 0.50 0.40
θ
0° 12° 10° 0.050
All Dimensions in mm
D2 0.150 k L e b
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI3333-8/SWP (Type UX)
X3 X1
Dimensions Value (in mm)
X2 Y1
C
0.650
X
0.420
X1
0.420
X2
0.230 Y2
X3
2.600 Y5 Y4
X4
3.500
Y
0.700 Y6
Y1
0.550
Y2
1.650
Y3
0.600 X4 Y3
Y4
2.450
Y5
0.400 Y
Y6
3.700 X C Notes: 11. For high-voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device terminals and PCB tracking. 12. Side wall tin plated package for wettable flanks in AOI. DXTN78100CFGQ 7 of 8 August 2025 Document number: DS46965 Rev. 2 - 2
