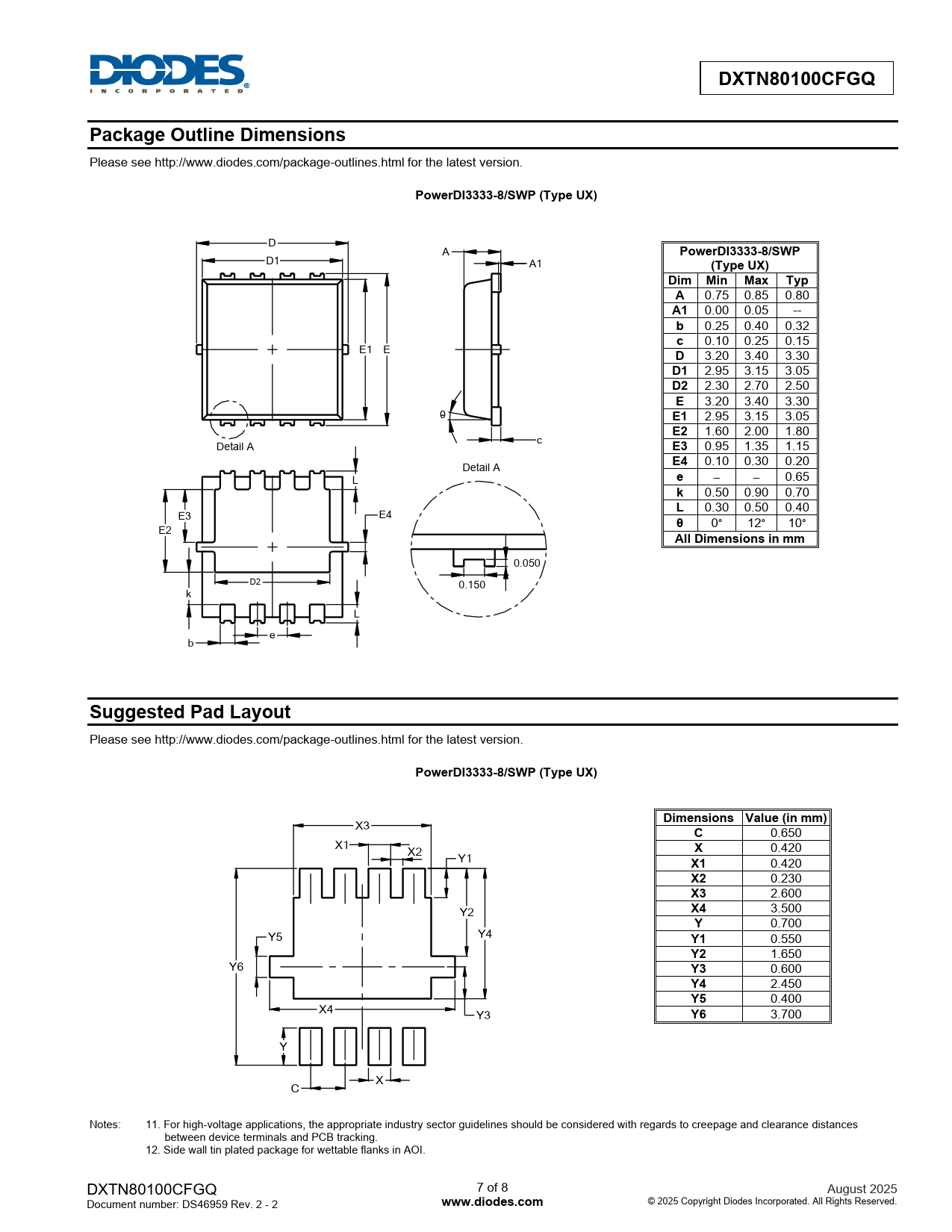

DXTN80100CFGQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI3333-8/SWP (Type UX)
D A
PowerDI3333-8/SWP
D1 A1
(Type UX) Dim Min Max Typ A
0.75 0.85 0.80
A1
0.00 0.05 --
b
0.25 0.40 0.32
c
0.10 0.25 0.15 E1 E
D
3.20 3.40 3.30
D1
2.95 3.15 3.05
D2
2.30 2.70 2.50
E
3.20 3.40 3.30 0
E1
2.95 3.15 3.05
E2
1.60 2.00 1.80 c Detail A
E3
0.95 1.35 1.15
E4
0.10 0.30 0.20 Detail A L
e
− − 0.65
k
0.50 0.90 0.70
L
0.30 0.50 0.40 E3 E4
θ
0° 12° 10° E2
All Dimensions in mm
0.050 D2 0.150 k L e b
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI3333-8/SWP (Type UX) Dimensions Value (in mm)
X3
C
0.650 X1
X
0.420 X2 Y1
X1
0.420
X2
0.230
X3
2.600
X4
3.500 Y2
Y
0.700 Y5 Y4
Y1
0.550
Y2
1.650 Y6
Y3
0.600
Y4
2.450
Y5
0.400 X4 Y3
Y6
3.700 Y X C Notes: 11. For high-voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device terminals and PCB tracking. 12. Side wall tin plated package for wettable flanks in AOI. DXTN80100CFGQ 7 of 8 August 2025 Document number: DS46959 Rev. 2 - 2
