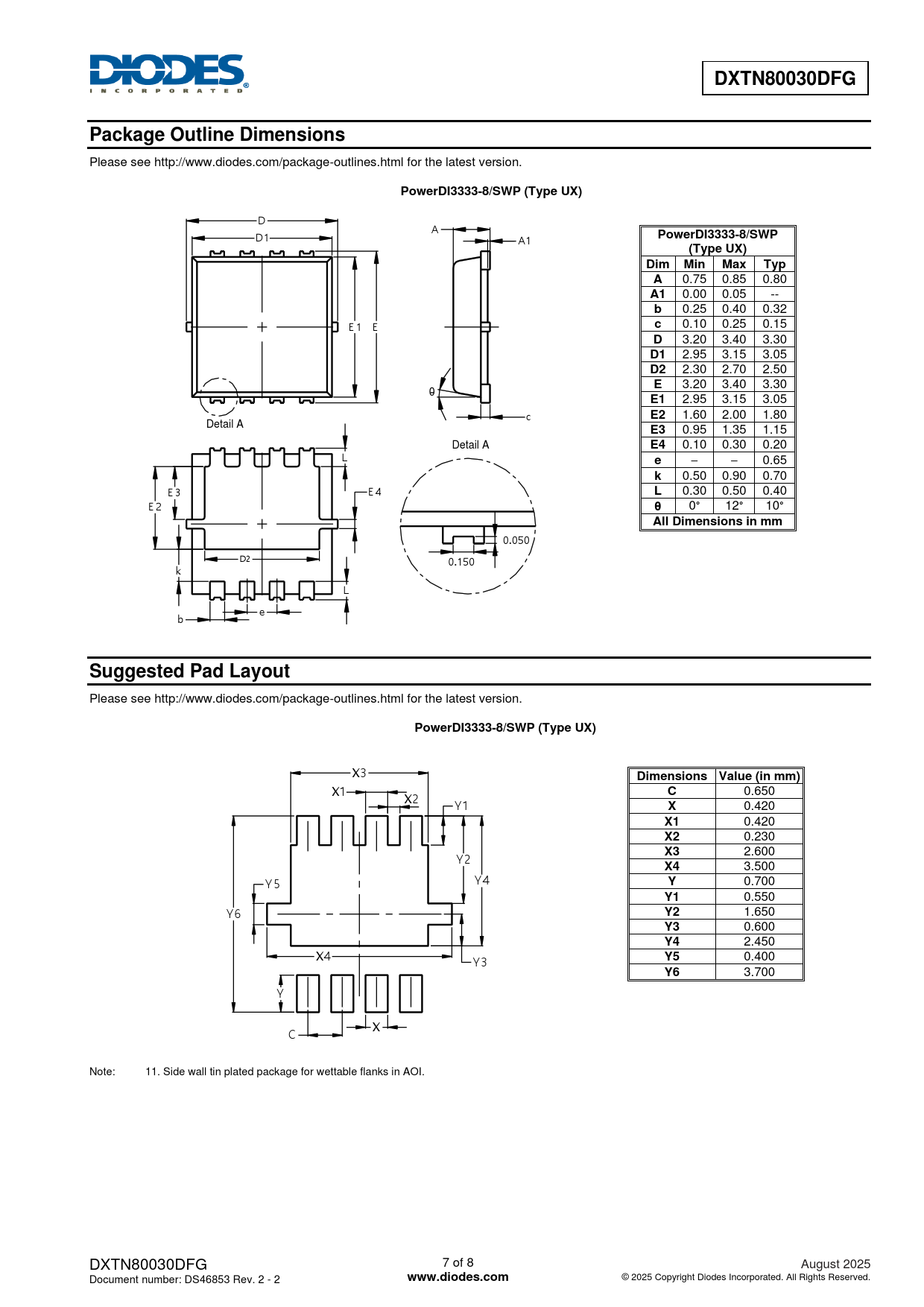

DXTN80030DFG Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI3333-8/SWP (Type UX)
D A
PowerDI3333-8/SWP
D1 A1
(Type UX) Dim Min Max Typ A
0.75 0.85 0.80
A1
0.00 0.05 --
b
0.25 0.40 0.32 E 1 E
c
0.10 0.25 0.15
D
3.20 3.40 3.30
D1
2.95 3.15 3.05
D2
2.30 2.70 2.50
E
3.20 3.40 3.30 0
E1
2.95 3.15 3.05 c
E2
1.60 2.00 1.80 Detail A
E3
0.95 1.35 1.15 Detail A
E4
0.10 0.30 0.20 L
e
− − 0.65
k
0.50 0.90 0.70 E 3 E 4
L
0.30 0.50 0.40 E 2
θ
0° 12° 10°
All Dimensions in mm
0.050 D2 0.150 k L e b
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI3333-8/SWP (Type UX)
X3
Dimensions Value (in mm)
X1
C
0.650 X2 Y1
X
0.420
X1
0.420
X2
0.230
X3
2.600 Y2
X4
3.500 Y5 Y4
Y
0.700
Y1
0.550 Y6
Y2
1.650
Y3
0.600
Y4
2.450 X4
Y5
0.400 Y3
Y6
3.700 Y X C Note: 11. Side wall tin plated package for wettable flanks in AOI. DXTN80030DFG 7 of 8 August 2025 Document number: DS46853 Rev. 2 - 2
