Datasheet PAM8403 (Diodes) - 3
| Manufacturer | Diodes |
| Description | 3W Stereo Class D in SOP-16 package |
| Pages / Page | 11 / 3 — PAM8403. Absolute Maximum Ratings. Parameter. Rating. Unit. Recommended … |
| File Format / Size | PDF / 521 Kb |
| Document Language | English |

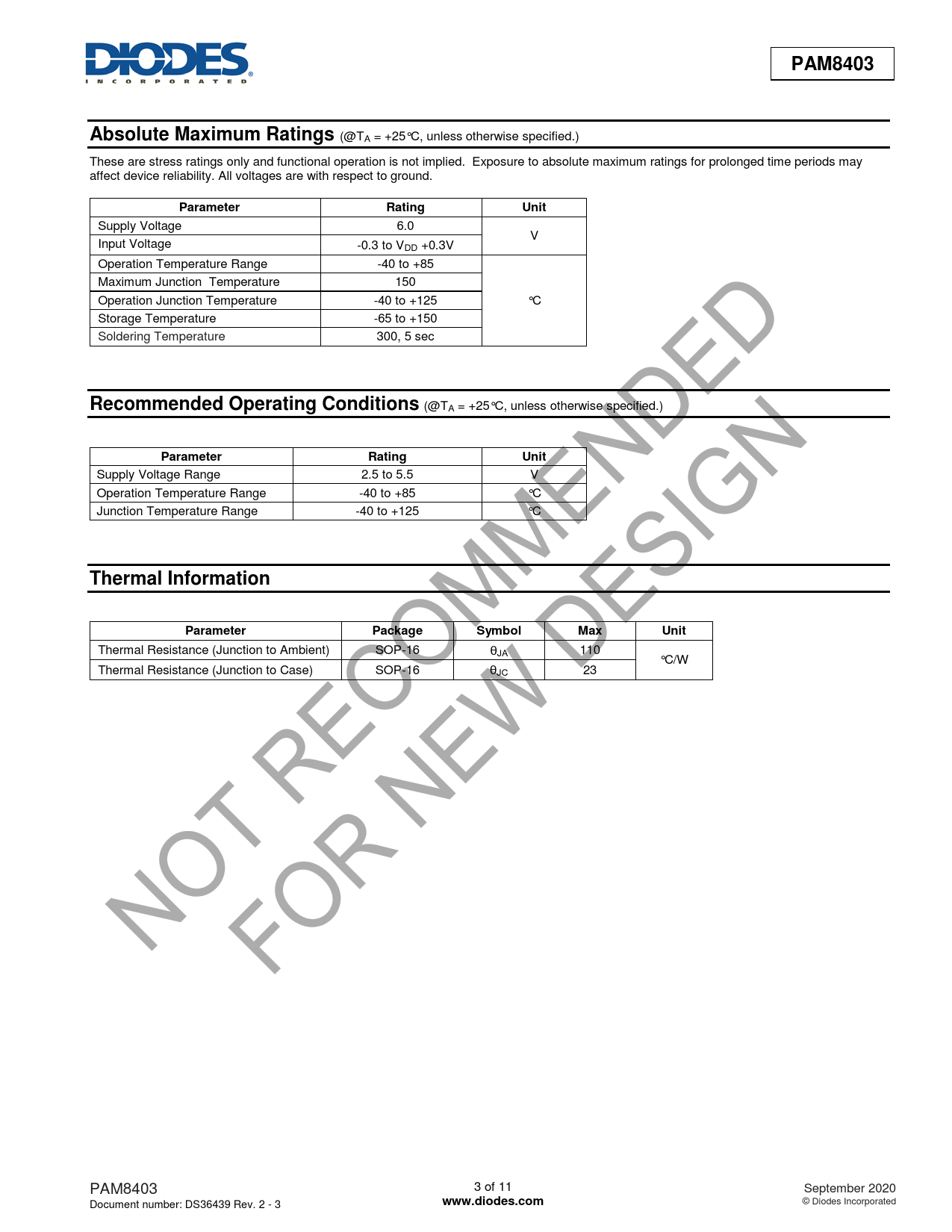

PAM8403. Absolute Maximum Ratings. Parameter. Rating. Unit. Recommended Operating Conditions. Thermal Information. Package. Symbol. Max
Model Line for this Datasheet
Text Version of Document
PAM8403 Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.) These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Supply Voltage 6.0 V Input Voltage -0.3 to VDD +0.3V Operation Temperature Range -40 to +85 Maximum Junction Temperature 150 Operation Junction Temperature -40 to +125 °C Storage Temperature -65 to +150 Soldering Temperature 300, 5 sec
Recommended Operating Conditions
(@TA = +25°C, unless otherwise specified.)
Parameter Rating Unit
Supply Voltage Range 2.5 to 5.5 V Operation Temperature Range -40 to +85 °C Junction Temperature Range -40 to +125 °C
Thermal Information Parameter Package Symbol Max Unit
Thermal Resistance (Junction to Ambient) SOP-16 θJA 110 °C/W Thermal Resistance (Junction to Case) SOP-16 θJC 23 PAM8403 3 of 11 September 2020 Document number: DS36439 Rev. 2 - 3
