PAM8403H. EVB User Guide. 9. PCB Layout Guidelines. Grounding. Power Supply. Others. 10. PCB Layout Example. Top Layer
Model Line for this Datasheet
Text Version of Document

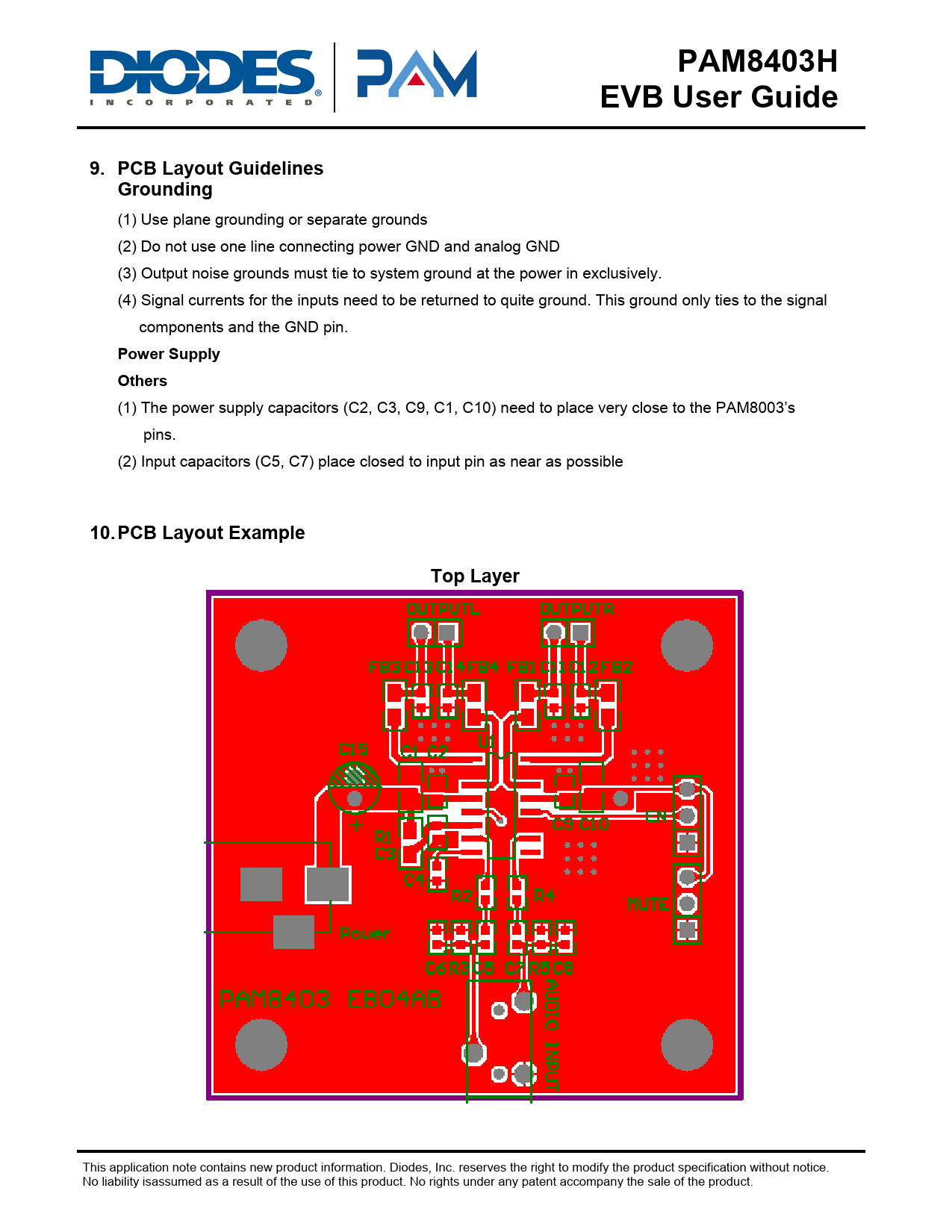

PAM8403H EVB User Guide 9. PCB Layout Guidelines Grounding
(1) Use plane grounding or separate grounds (2) Do not use one line connecting power GND and analog GND (3) Output noise grounds must tie to system ground at the power in exclusively. (4) Signal currents for the inputs need to be returned to quite ground. This ground only ties to the signal components and the GND pin.
Power Supply Others
(1) The power supply capacitors (C2, C3, C9, C1, C10) need to place very close to the PAM8003’s pins. (2) Input capacitors (C5, C7) place closed to input pin as near as possible
10. PCB Layout Example Top Layer
This application note contains new product information. Diodes, Inc. reserves the right to modify the product specification without notice. No liability isassumed as a result of the use of this product. No rights under any patent accompany the sale of the product.
(1) Use plane grounding or separate grounds (2) Do not use one line connecting power GND and analog GND (3) Output noise grounds must tie to system ground at the power in exclusively. (4) Signal currents for the inputs need to be returned to quite ground. This ground only ties to the signal components and the GND pin.
Power Supply Others
(1) The power supply capacitors (C2, C3, C9, C1, C10) need to place very close to the PAM8003’s pins. (2) Input capacitors (C5, C7) place closed to input pin as near as possible
10. PCB Layout Example Top Layer
This application note contains new product information. Diodes, Inc. reserves the right to modify the product specification without notice. No liability isassumed as a result of the use of this product. No rights under any patent accompany the sale of the product.
