Datasheet TS2940 (Taiwan Semiconductor)
| Manufacturer | Taiwan Semiconductor |
| Description | 1A Ultra Low Dropout Voltage Regulator |
| Pages / Page | 10 / 1 — TS2940. 1A Ultra Low Dropout Voltage Regulator. TO-220. TO-263 (D2PAK). … |
| File Format / Size | PDF / 402 Kb |
| Document Language | English |

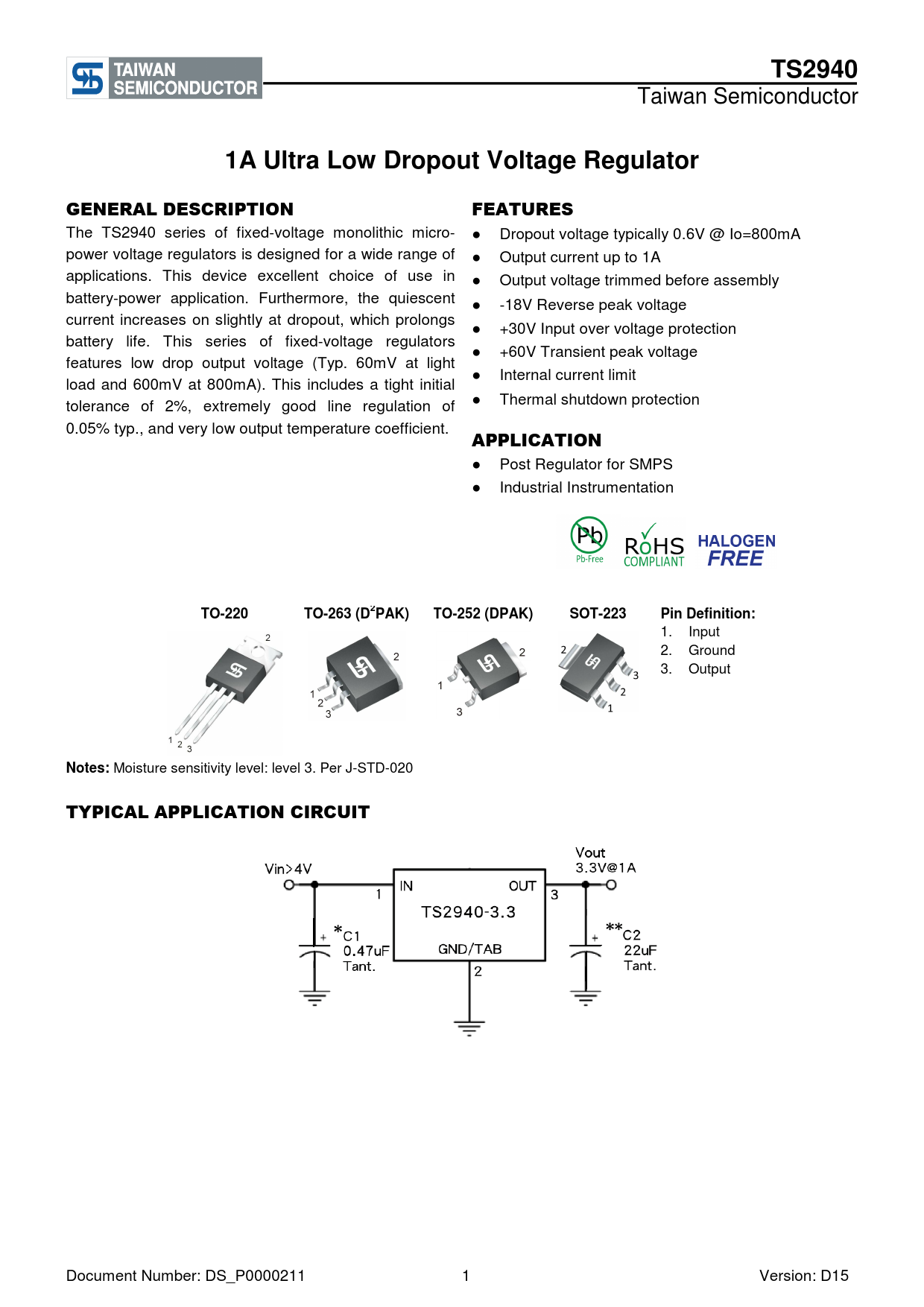

TS2940. 1A Ultra Low Dropout Voltage Regulator. TO-220. TO-263 (D2PAK). TO-252 (DPAK). SOT-223. Pin Definition:. Notes:
Model Line for this Datasheet
Text Version of Document
TS2940
Taiwan Semiconductor
1A Ultra Low Dropout Voltage Regulator
GENERAL DESCRIPTION FEATURES The TS2940 series of fixed-voltage monolithic micro- ● Dropout voltage typically 0.6V @ Io=800mA power voltage regulators is designed for a wide range of ● Output current up to 1A applications. This device excellent choice of use in ● Output voltage trimmed before assembly battery-power application. Furthermore, the quiescent ● -18V Reverse peak voltage current increases on slightly at dropout, which prolongs ● +30V Input over voltage protection battery life. This series of fixed-voltage regulators ● +60V Transient peak voltage features low drop output voltage (Typ. 60mV at light ● Internal current limit load and 600mV at 800mA). This includes a tight initial tolerance of 2%, extremely good line regulation of ● Thermal shutdown protection 0.05% typ., and very low output temperature coefficient. APPLICATION ● Post Regulator for SMPS ● Industrial Instrumentation
TO-220 TO-263 (D2PAK) TO-252 (DPAK) SOT-223 Pin Definition:
1. Input 2. Ground 3. Output
Notes:
Moisture sensitivity level: level 3. Per J-STD-020 TYPICAL APPLICATION CIRCUIT Document Number: DS_P0000211 1 Version: D15
