Datasheet LF2117XTMR Series
TMR Omnipolar Switch 160nA Push Pull Sensor

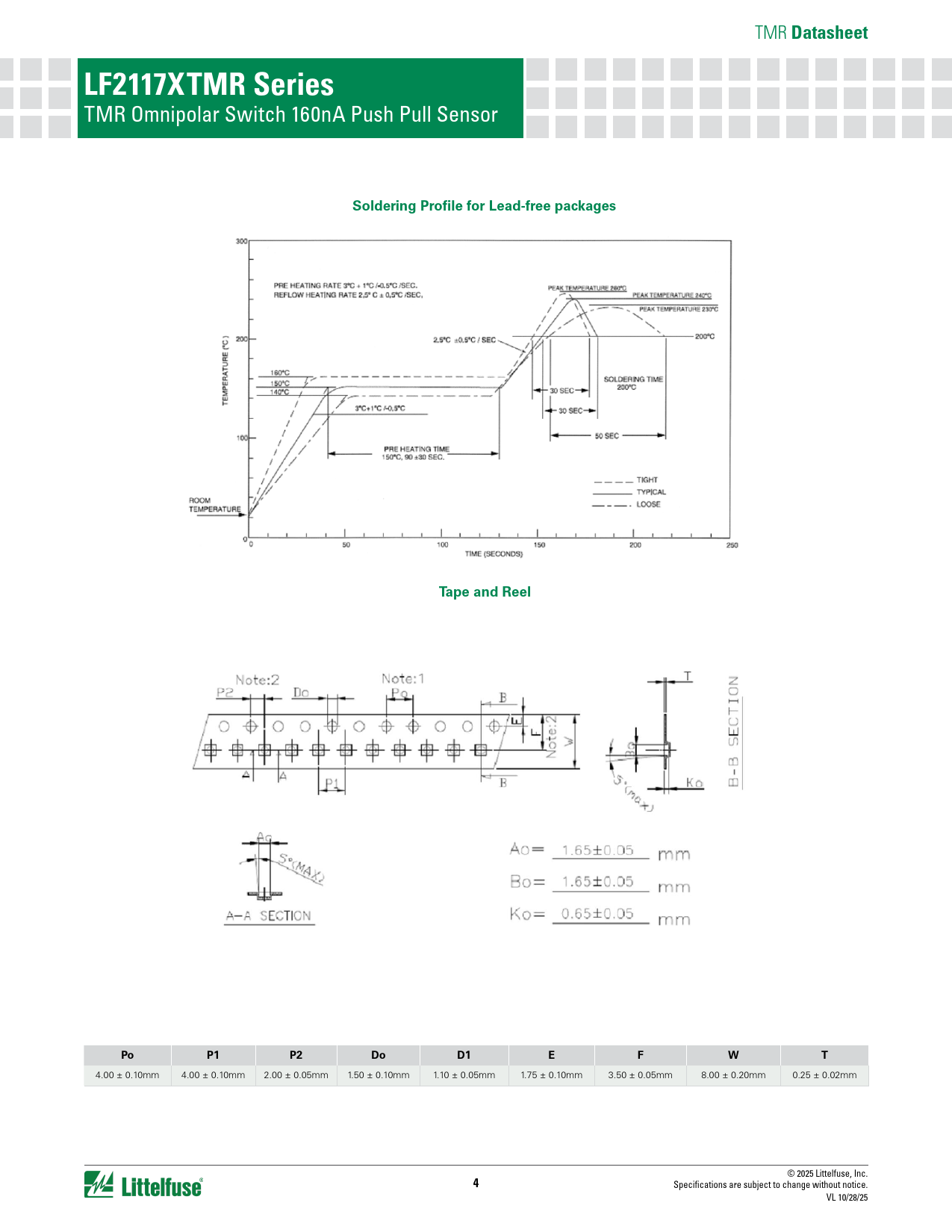

Soldering Profile for Lead-free packages Tape and Reel Po P1 P2 Do D1 E F W T
4.00 ± 0.10mm 4.00 ± 0.10mm 2.00 ± 0.05mm 1.50 ± 0.10mm 1.10 ± 0.05mm 1.75 ± 0.10mm 3.50 ± 0.05mm 8.00 ± 0.20mm 0.25 ± 0.02mm © 2025 Littelfuse, Inc.
