Datasheet ES1JV (Rectron Semiconductor) - 4
| Manufacturer | Rectron Semiconductor |
| Description | Recovery Rectifiers 1.0 A in DO-214AC package |
| Pages / Page | 8 / 4 — Mounting Pad Layout |
| File Format / Size | PDF / 219 Kb |
| Document Language | English |
Mounting Pad Layout
Model Line for this Datasheet
Text Version of Document

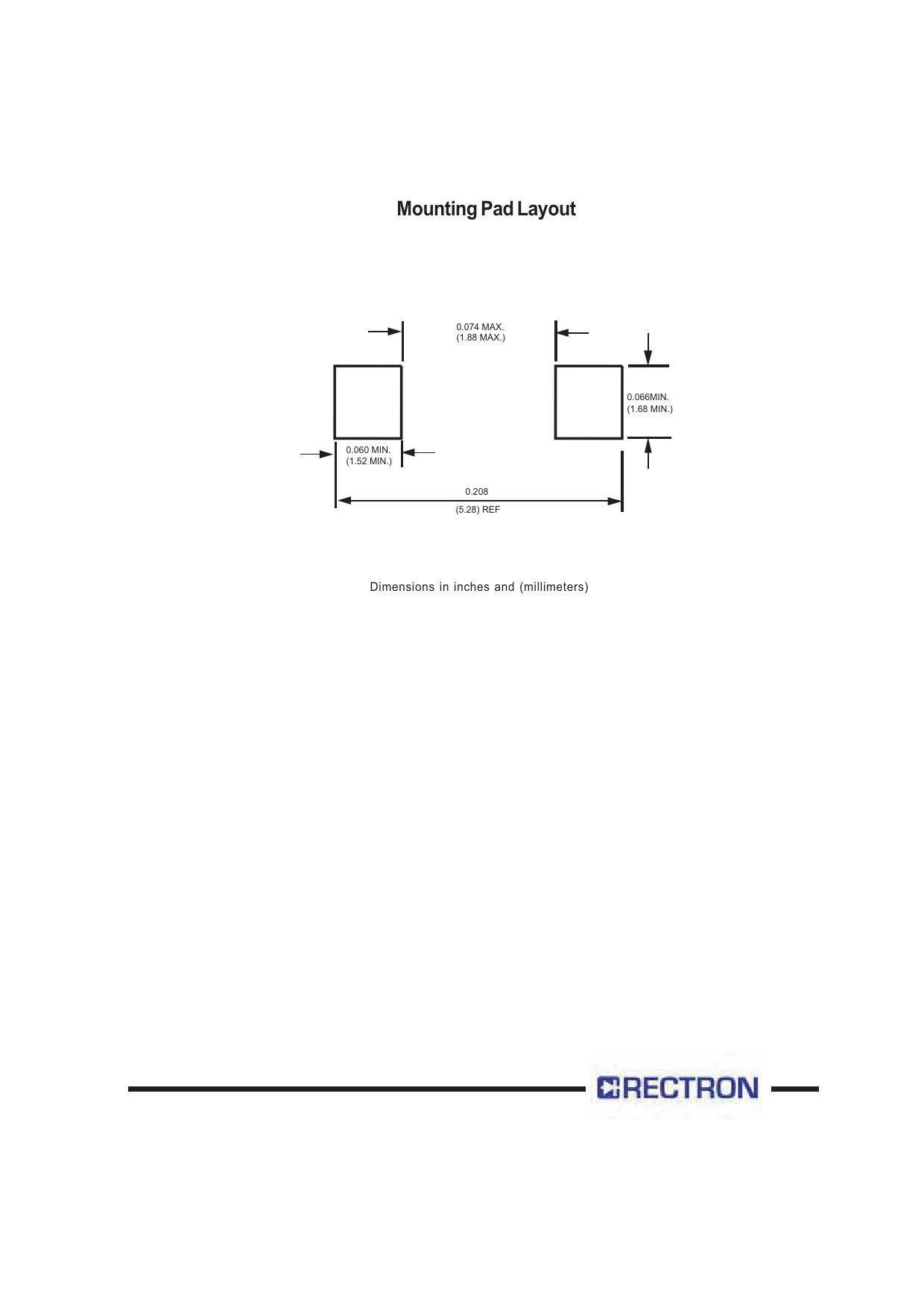

Mounting Pad Layout
0.074 MAX. (1.88 MAX.) 0.066MIN. (1.68 MIN.) 0.060 MIN. (1.52 MIN.) 0.208 (5.28) REF Dimensions in inches and (millimeters)
0.074 MAX. (1.88 MAX.) 0.066MIN. (1.68 MIN.) 0.060 MIN. (1.52 MIN.) 0.208 (5.28) REF Dimensions in inches and (millimeters)
