Datasheet GS8551, GS8552, GS8554 (Gainsil) - 2
| Manufacturer | Gainsil |
| Description | 1.8MHZ Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter |
| Pages / Page | 14 / 2 — Package Thermal Resistance (TA=+25. ESD Susceptibility. PACKAGE. MARKING. … |
| File Format / Size | PDF / 716 Kb |
| Document Language | English |
Package Thermal Resistance (TA=+25. ESD Susceptibility. PACKAGE. MARKING. MODEL. CHANNEL. ORDER NUMBER. DESCRIPTION. OPTION. INFORMATION
Model Line for this Datasheet
Text Version of Document

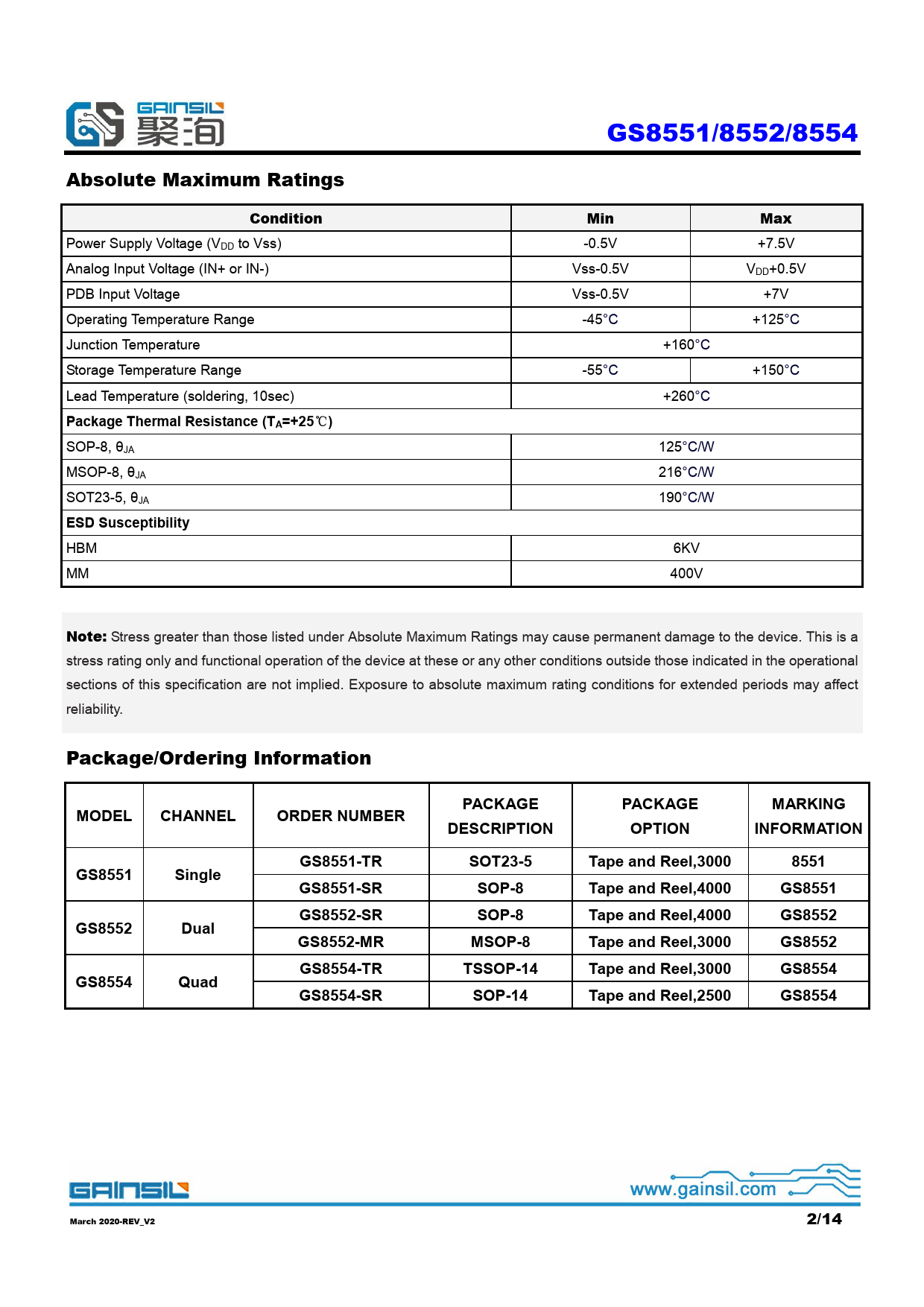

GS8551/8552/8554 Absolute Maximum Ratings Condition Min Max Power Supply Voltage (VDD to Vss) -0.5V +7.5V Analog Input Voltage (IN+ or IN-) Vss-0.5V VDD+0.5V PDB Input Voltage Vss-0.5V +7V Operating Temperature Range -45°C +125°C Junction Temperature +160°C Storage Temperature Range -55°C +150°C Lead Temperature (soldering, 10sec) +260°C
Package Thermal Resistance (TA=+25
℃
)
SOP-8, θJA 125°C/W MSOP-8, θJA 216°C/W SOT23-5, θJA 190°C/W
ESD Susceptibility
HBM 6KV MM 400V Note: Stress greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions outside those indicated in the operational sections of this specification are not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Package/Ordering Information
PACKAGE PACKAGE MARKING MODEL CHANNEL ORDER NUMBER DESCRIPTION OPTION INFORMATION GS8551-TR SOT23-5 Tape and Reel,3000 8551 GS8551 Single GS8551-SR SOP-8 Tape and Reel,4000 GS8551 GS8552-SR SOP-8 Tape and Reel,4000 GS8552 GS8552 Dual GS8552-MR MSOP-8 Tape and Reel,3000 GS8552 GS8554-TR TSSOP-14 Tape and Reel,3000 GS8554 GS8554 Quad GS8554-SR SOP-14 Tape and Reel,2500 GS8554
March 2020-REV_V2 2/14
