Datasheet IRFP064 (Vishay) - 6
| Manufacturer | Vishay |
| Description | Power MOSFET in TO-247AC package |
| Pages / Page | 11 / 6 — IRFP064. Fig. 13a - Basic Gate Charge Waveform. Fig. 13b - Gate Charge … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

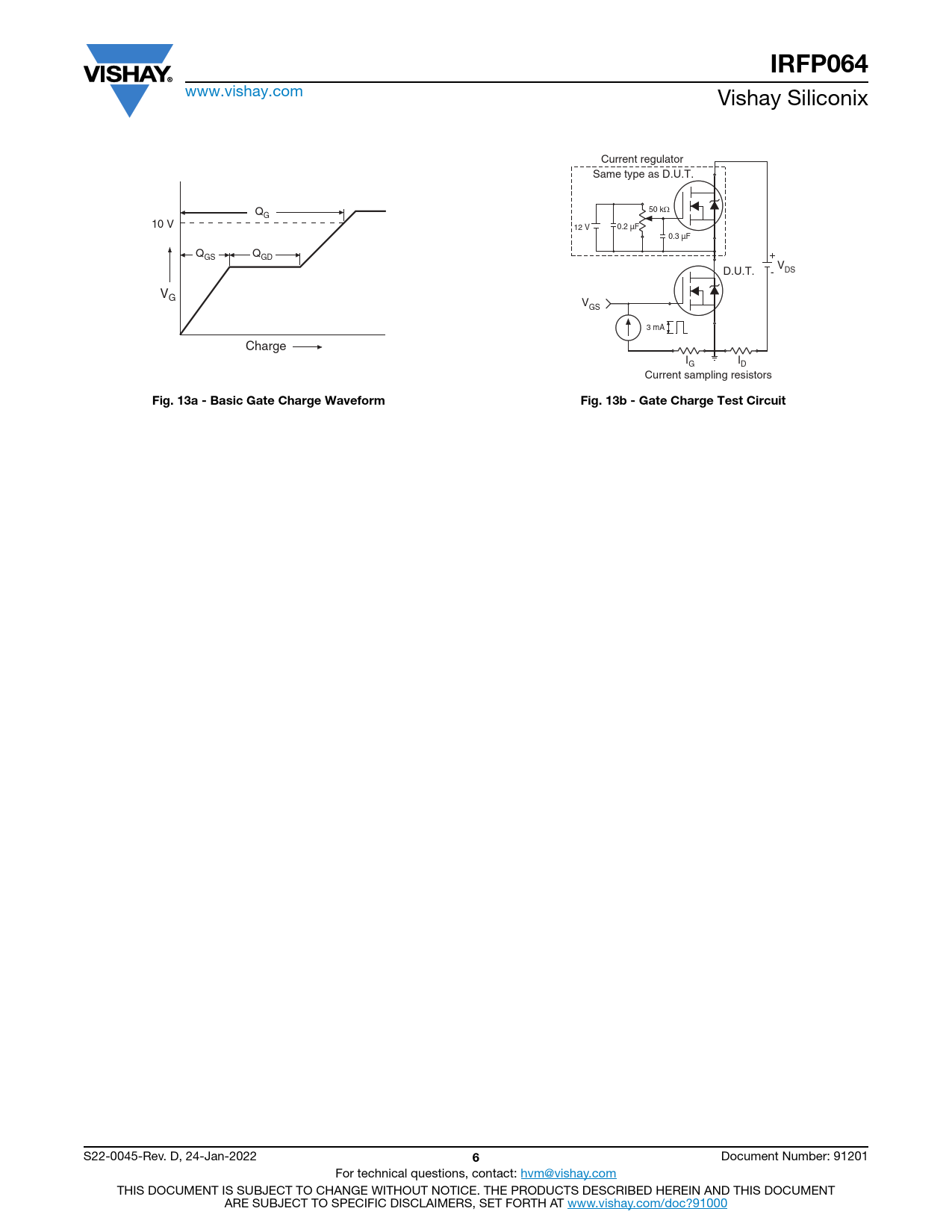

IRFP064. Fig. 13a - Basic Gate Charge Waveform. Fig. 13b - Gate Charge Test Circuit
Model Line for this Datasheet
Text Version of Document
IRFP064
www.vishay.com Vishay Siliconix Current regulator Same type as D.U.T. Q 50 kΩ G 10 V 12 V 0.2 µF 0.3 µF Q Q GS GD + V D.U.T. DS - VG VGS 3 mA Charge I I G D Current sampling resistors
Fig. 13a - Basic Gate Charge Waveform Fig. 13b - Gate Charge Test Circuit
