Datasheet USB4125, USB4130, USB4135 (GCT) - 7
| Manufacturer | GCT |
| Description | Type C USB Charging Connector |
| Pages / Page | 10 / 7 — Part. Rev. Date. Number Product. Page. Description Doc. Prepared. … |
| File Format / Size | PDF / 395 Kb |
| Document Language | English |
Part. Rev. Date. Number Product. Page. Description Doc. Prepared. Checked. Approved. Number. Test No. Description. Requirement. Group A-1
Model Line for this Datasheet
Text Version of Document

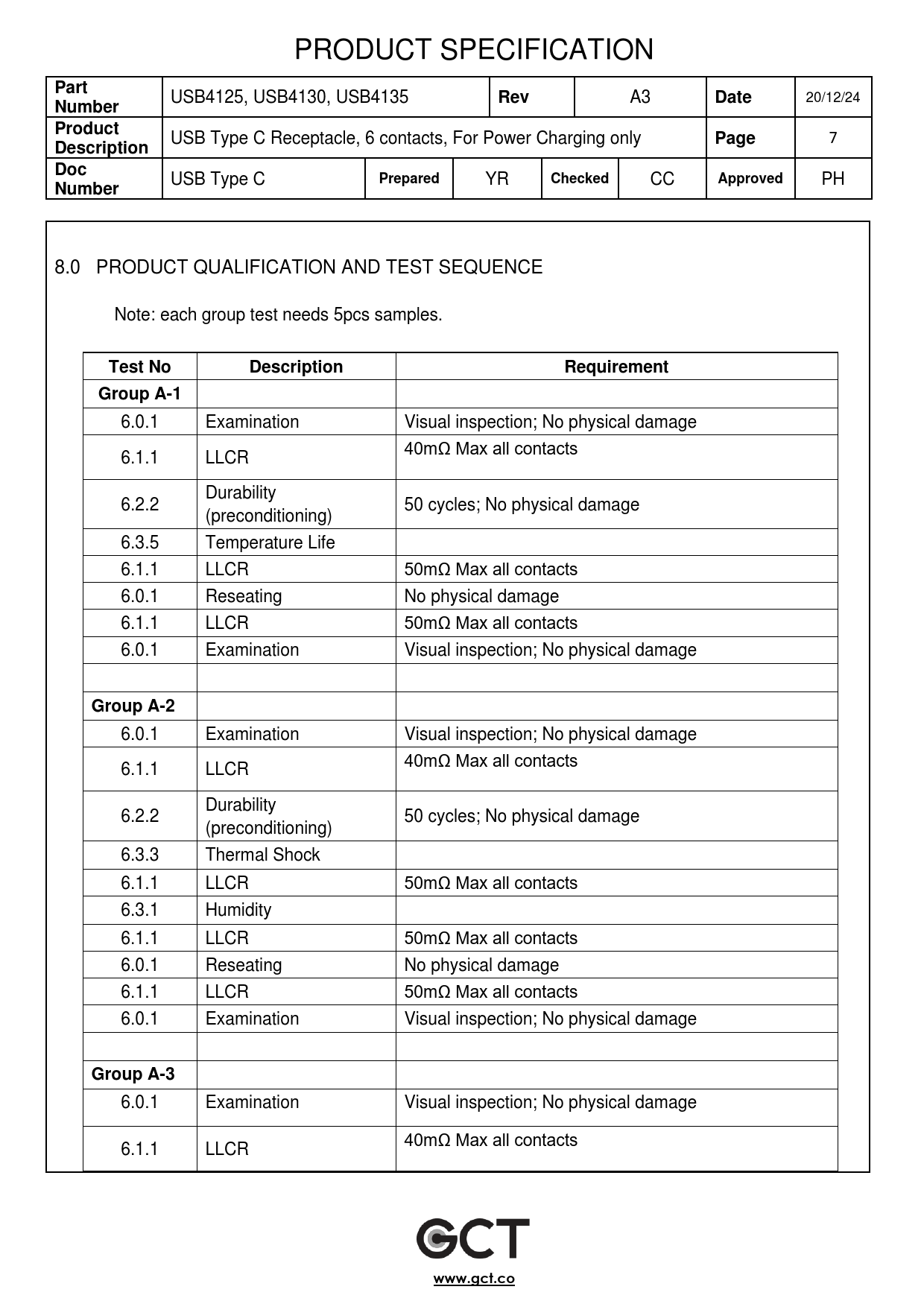

PRODUCT SPECIFICATION
Part
USB4125, USB4130, USB4135
Rev
A3
Date
20/12/24
Number Product
USB Type C Receptacle, 6 contacts, For Power Charging only
Page
7
Description Doc
USB Type C
Prepared
YR
Checked
CC
Approved
PH
Number
8.0 PRODUCT QUALIFICATION AND TEST SEQUENCE Note: each group test needs 5pcs samples.
Test No Description Requirement Group A-1
6.0.1 Examination Visual inspection; No physical damage 40mΩ Max all contacts 6.1.1 LLCR Durability 6.2.2 50 cycles; No physical damage (preconditioning) 6.3.5 Temperature Life 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Reseating No physical damage 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Examination Visual inspection; No physical damage
Group A-2
6.0.1 Examination Visual inspection; No physical damage 40mΩ Max all contacts 6.1.1 LLCR Durability 6.2.2 50 cycles; No physical damage (preconditioning) 6.3.3 Thermal Shock 6.1.1 LLCR 50mΩ Max all contacts 6.3.1 Humidity 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Reseating No physical damage 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Examination Visual inspection; No physical damage
Group A-3
6.0.1 Examination Visual inspection; No physical damage 40mΩ Max all contacts 6.1.1 LLCR
