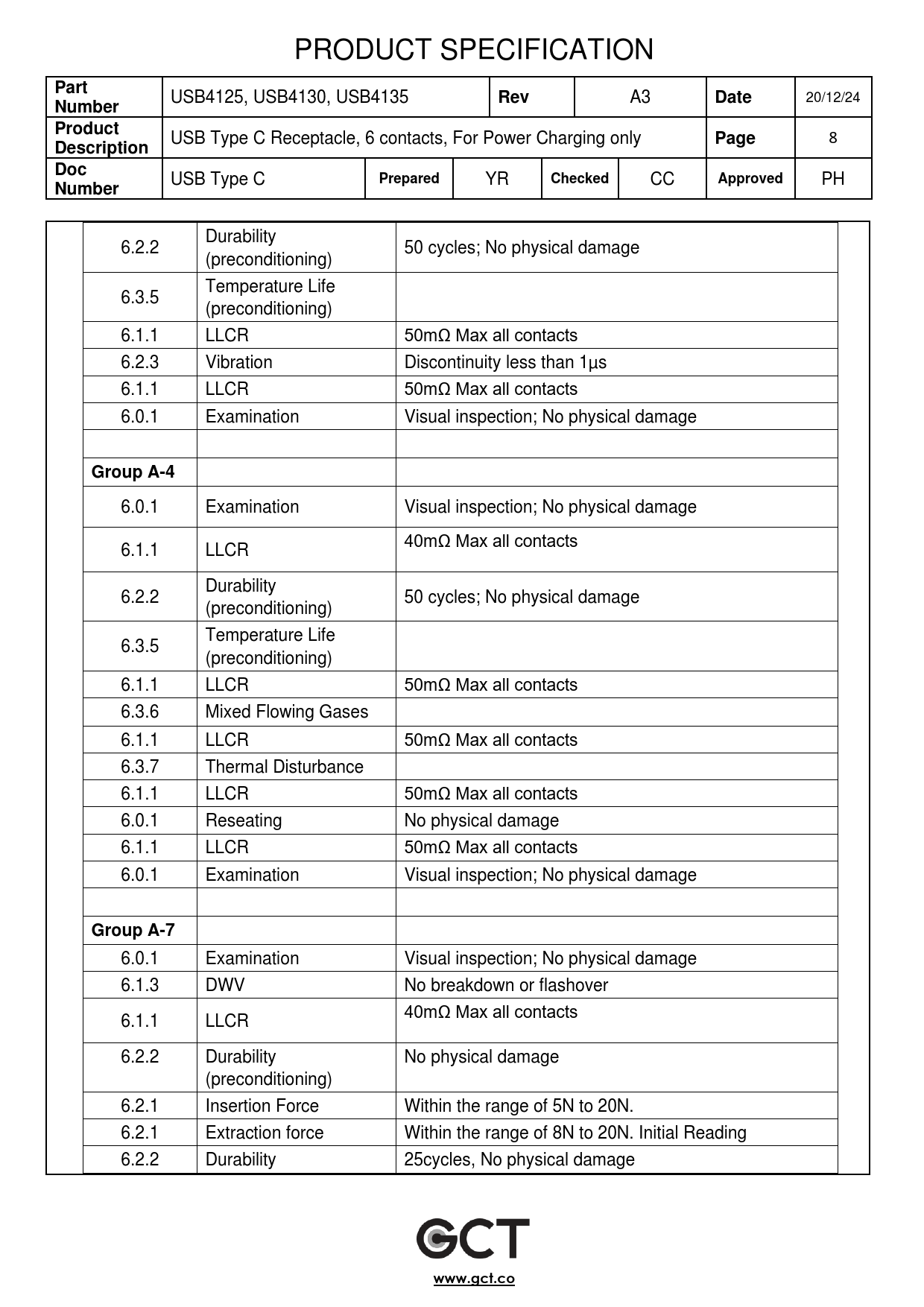

PRODUCT SPECIFICATION
Part
USB4125, USB4130, USB4135
Rev
A3
Date
20/12/24
Number Product
USB Type C Receptacle, 6 contacts, For Power Charging only
Page
8
Description Doc
USB Type C
Prepared
YR
Checked
CC
Approved
PH
Number
Durability 6.2.2 50 cycles; No physical damage (preconditioning) Temperature Life 6.3.5 (preconditioning) 6.1.1 LLCR 50mΩ Max all contacts 6.2.3 Vibration Discontinuity less than 1µs 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Examination Visual inspection; No physical damage
Group A-4
6.0.1 Examination Visual inspection; No physical damage 40mΩ Max all contacts 6.1.1 LLCR Durability 6.2.2 50 cycles; No physical damage (preconditioning) Temperature Life 6.3.5 (preconditioning) 6.1.1 LLCR 50mΩ Max all contacts 6.3.6 Mixed Flowing Gases 6.1.1 LLCR 50mΩ Max all contacts 6.3.7 Thermal Disturbance 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Reseating No physical damage 6.1.1 LLCR 50mΩ Max all contacts 6.0.1 Examination Visual inspection; No physical damage
Group A-7
6.0.1 Examination Visual inspection; No physical damage 6.1.3 DWV No breakdown or flashover 40mΩ Max all contacts 6.1.1 LLCR 6.2.2 Durability No physical damage (preconditioning) 6.2.1 Insertion Force Within the range of 5N to 20N. 6.2.1 Extraction force Within the range of 8N to 20N. Initial Reading 6.2.2 Durability 25cycles, No physical damage
