Datasheet USB4125, USB4130, USB4135 (GCT) - 9
| Manufacturer | GCT |
| Description | Type C USB Charging Connector |
| Pages / Page | 10 / 9 — Part. Rev. Date. Number Product. Page. Description Doc. Prepared. … |
| File Format / Size | PDF / 395 Kb |
| Document Language | English |
Part. Rev. Date. Number Product. Page. Description Doc. Prepared. Checked. Approved. Number. Group B-1. Group B-6. www.gct.co
Model Line for this Datasheet
Text Version of Document

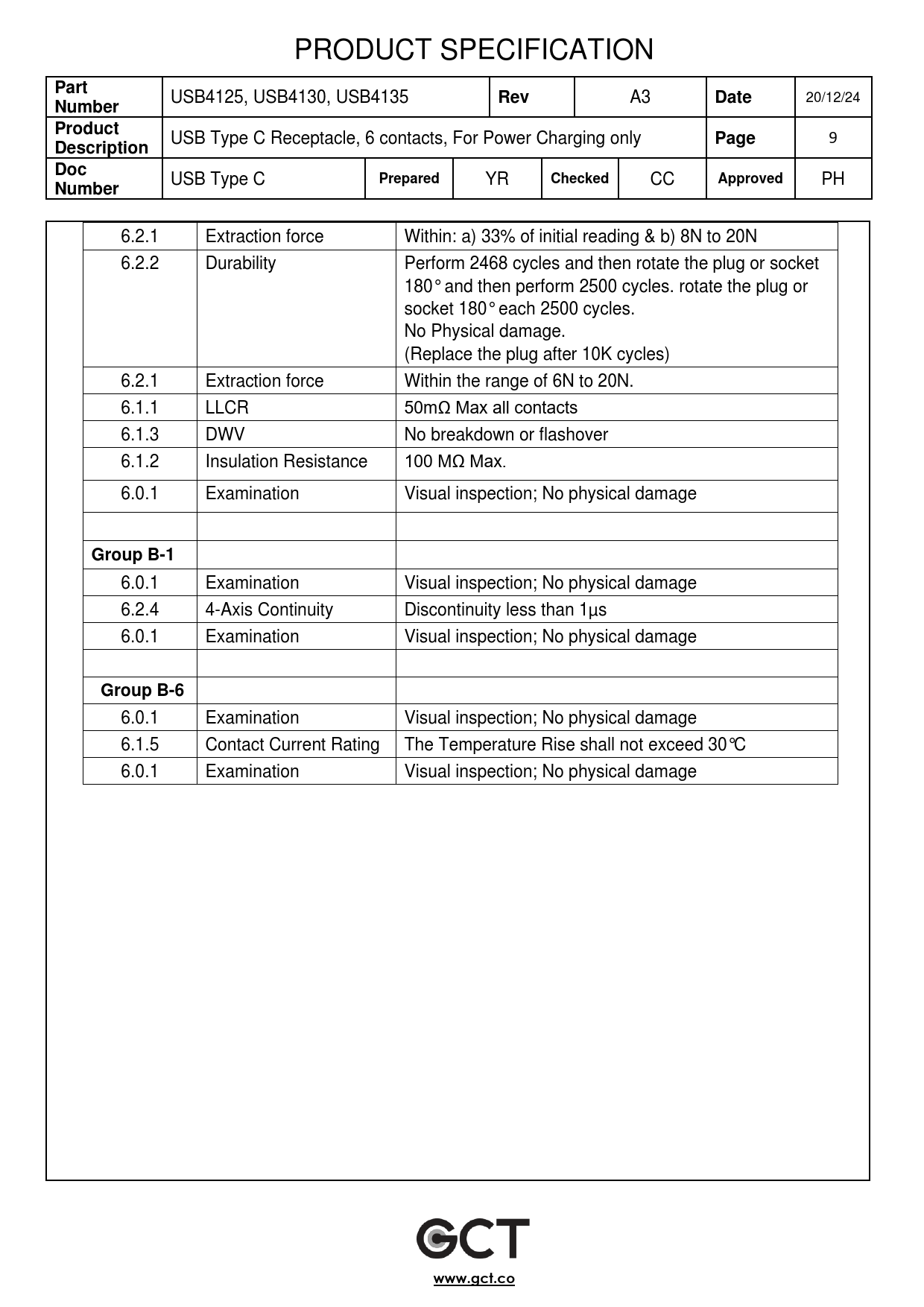

PRODUCT SPECIFICATION
Part
USB4125, USB4130, USB4135
Rev
A3
Date
20/12/24
Number Product
USB Type C Receptacle, 6 contacts, For Power Charging only
Page
9
Description Doc
USB Type C
Prepared
YR
Checked
CC
Approved
PH
Number
6.2.1 Extraction force Within: a) 33% of initial reading & b) 8N to 20N 6.2.2 Durability Perform 2468 cycles and then rotate the plug or socket 180° and then perform 2500 cycles. rotate the plug or socket 180° each 2500 cycles. No Physical damage. (Replace the plug after 10K cycles) 6.2.1 Extraction force Within the range of 6N to 20N. 6.1.1 LLCR 50mΩ Max all contacts 6.1.3 DWV No breakdown or flashover 6.1.2 Insulation Resistance 100 MΩ Max. 6.0.1 Examination Visual inspection; No physical damage
Group B-1
6.0.1 Examination Visual inspection; No physical damage 6.2.4 4-Axis Continuity Discontinuity less than 1µs 6.0.1 Examination Visual inspection; No physical damage
Group B-6
6.0.1 Examination Visual inspection; No physical damage 6.1.5 Contact Current Rating The Temperature Rise shall not exceed 30°C 6.0.1 Examination Visual inspection; No physical damage
www.gct.co
Part
USB4125, USB4130, USB4135
Rev
A3
Date
20/12/24
Number Product
USB Type C Receptacle, 6 contacts, For Power Charging only
Page
9
Description Doc
USB Type C
Prepared
YR
Checked
CC
Approved
PH
Number
6.2.1 Extraction force Within: a) 33% of initial reading & b) 8N to 20N 6.2.2 Durability Perform 2468 cycles and then rotate the plug or socket 180° and then perform 2500 cycles. rotate the plug or socket 180° each 2500 cycles. No Physical damage. (Replace the plug after 10K cycles) 6.2.1 Extraction force Within the range of 6N to 20N. 6.1.1 LLCR 50mΩ Max all contacts 6.1.3 DWV No breakdown or flashover 6.1.2 Insulation Resistance 100 MΩ Max. 6.0.1 Examination Visual inspection; No physical damage
Group B-1
6.0.1 Examination Visual inspection; No physical damage 6.2.4 4-Axis Continuity Discontinuity less than 1µs 6.0.1 Examination Visual inspection; No physical damage
Group B-6
6.0.1 Examination Visual inspection; No physical damage 6.1.5 Contact Current Rating The Temperature Rise shall not exceed 30°C 6.0.1 Examination Visual inspection; No physical damage
www.gct.co
