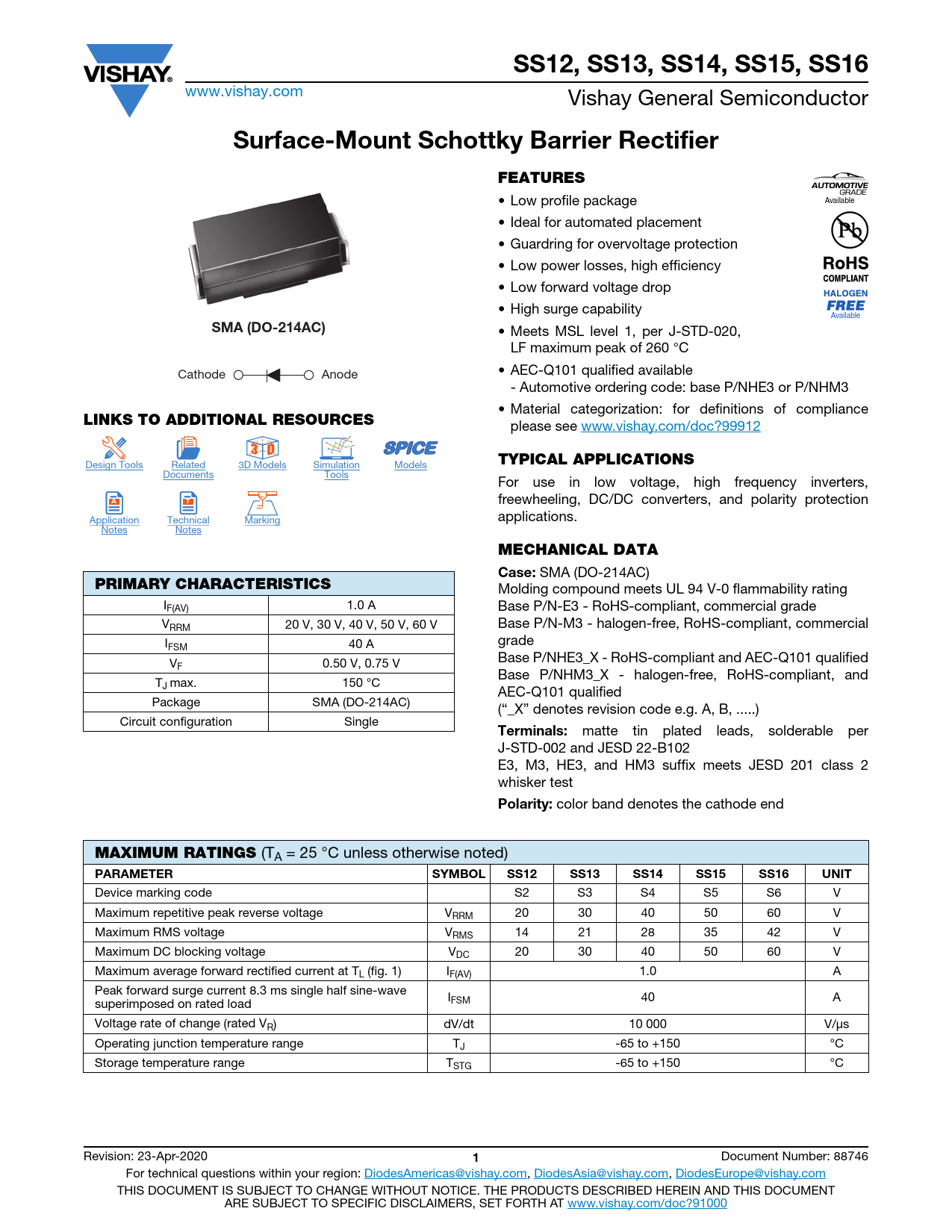

SS12, SS13, SS14, SS15, SS16
www.vishay.com Vishay General Semiconductor
Surface-Mount Schottky Barrier Rectifier FEATURES
• Low profile package Available • Ideal for automated placement • Guardring for overvoltage protection • Low power losses, high efficiency • Low forward voltage drop • High surge capability Available
SMA (DO-214AC)
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • AEC-Q101 qualified available Cathode Anode - Automotive ordering code: base P/NHE3 or P/NHM3
LINKS TO ADDITIONAL RESOURCES
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
D 3 3 D
Design Tools Related 3D Models Simulation Models
TYPICAL APPLICATIONS
Documents Tools For use in low voltage, high frequency inverters,
A T
freewheeling, DC/DC converters, and polarity protection applications. Application Technical Marking Notes Notes
MECHANICAL DATA Case:
SMA (DO-214AC)
PRIMARY CHARACTERISTICS
Molding compound meets UL 94 V-0 flammability rating IF(AV) 1.0 A Base P/N-E3 - RoHS-compliant, commercial grade VRRM 20 V, 30 V, 40 V, 50 V, 60 V Base P/N-M3 - halogen-free, RoHS-compliant, commercial I grade FSM 40 A Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified VF 0.50 V, 0.75 V Base P/NHM3_X - halogen-free, RoHS-compliant, and TJ max. 150 °C AEC-Q101 qualified Package SMA (DO-214AC) (“_X” denotes revision code e.g. A, B, ...) Circuit configuration Single
Terminals:
matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3, M3, HE3, and HM3 suffix meets JESD 201 class 2 whisker test
Polarity:
color band denotes the cathode end
MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL SS12 SS13 SS14 SS15 SS16 UNIT
Device marking code S2 S3 S4 S5 S6 V Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 V Maximum RMS voltage VRMS 14 21 28 35 42 V Maximum DC blocking voltage VDC 20 30 40 50 60 V Maximum average forward rectified current at TL (fig. 1) IF(AV) 1.0 A Peak forward surge current 8.3 ms single half sine-wave I superimposed on rated load FSM 40 A Voltage rate of change (rated VR) dV/dt 10 000 V/μs Operating junction temperature range TJ -65 to +150 °C Storage temperature range TSTG -65 to +150 °C Revision: 23-Apr-2020
1
