| Manufacturer | Vishay |
| Description | Surface-Mount Schottky Barrier Rectifier in SMA (DO-214AC) package |
| Pages / Page | 5 / 2 — SS12, SS13, SS14, SS15, SS16. ELECTRICAL CHARACTERISTICS. PARAMETER. TEST … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

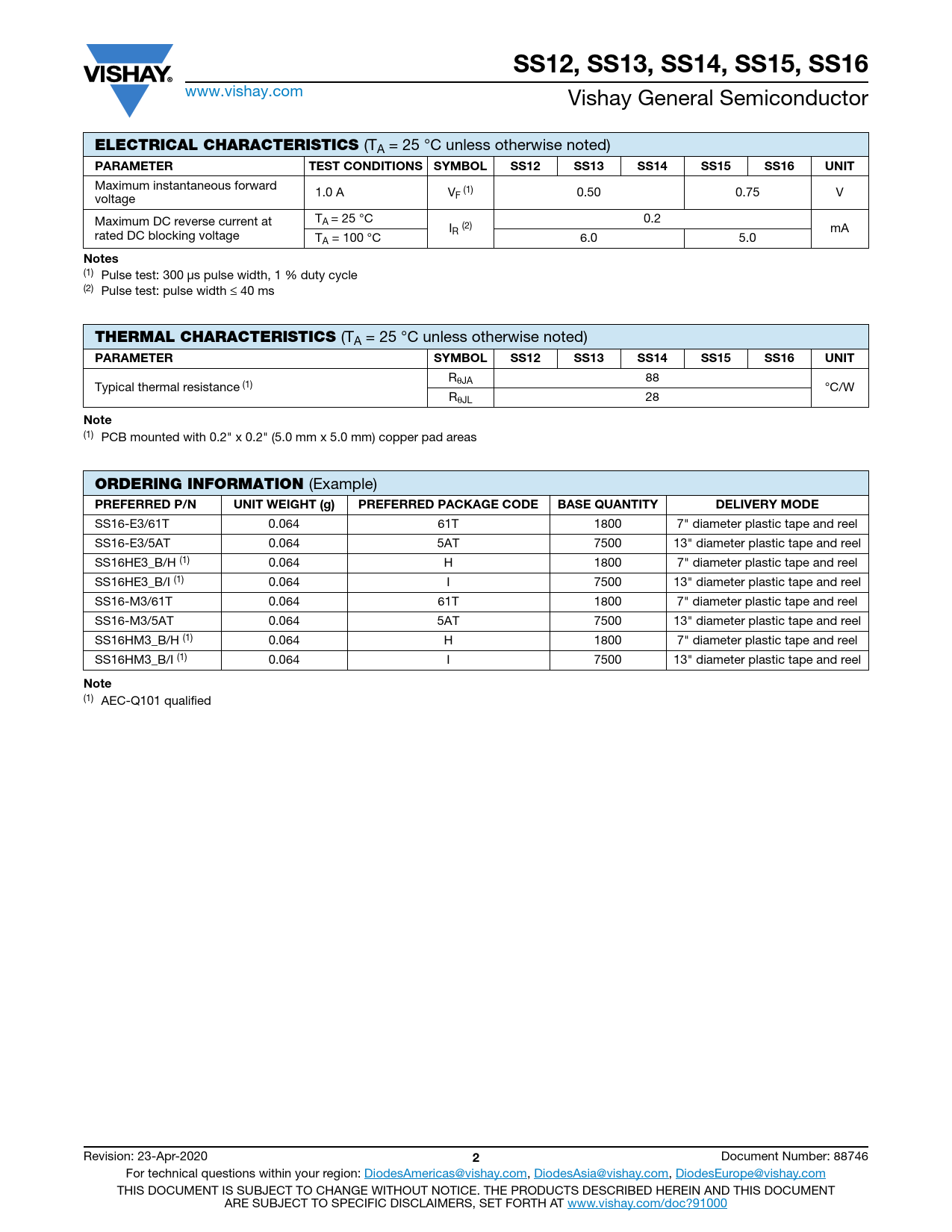

SS12, SS13, SS14, SS15, SS16. ELECTRICAL CHARACTERISTICS. PARAMETER. TEST CONDITIONS SYMBOL. SS12. SS13. SS14. SS15. SS16. UNIT. Notes
Model Line for this Datasheet
Text Version of Document
SS12, SS13, SS14, SS15, SS16
www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
PARAMETER TEST CONDITIONS SYMBOL SS12 SS13 SS14 SS15 SS16 UNIT
Maximum instantaneous forward 1.0 A V (1) 0.50 0.75 V voltage F Maximum DC reverse current at TA = 25 °C 0.2 I mA rated DC blocking voltage R (2) TA = 100 °C 6.0 5.0
Notes
(1) Pulse test: 300 μs pulse width, 1 % duty cycle (2) Pulse test: pulse width ≤ 40 ms
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL SS12 SS13 SS14 SS15 SS16 UNIT
RθJA 88 Typical thermal resistance (1) °C/W RθJL 28
Note
(1) PCB mounted with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE
SS16-E3/61T 0.064 61T 1800 7" diameter plastic tape and reel SS16-E3/5AT 0.064 5AT 7500 13" diameter plastic tape and reel SS16HE3_B/H (1) 0.064 H 1800 7" diameter plastic tape and reel SS16HE3_B/I (1) 0.064 I 7500 13" diameter plastic tape and reel SS16-M3/61T 0.064 61T 1800 7" diameter plastic tape and reel SS16-M3/5AT 0.064 5AT 7500 13" diameter plastic tape and reel SS16HM3_B/H (1) 0.064 H 1800 7" diameter plastic tape and reel SS16HM3_B/I (1) 0.064 I 7500 13" diameter plastic tape and reel
Note
(1) AEC-Q101 qualified Revision: 23-Apr-2020
2
